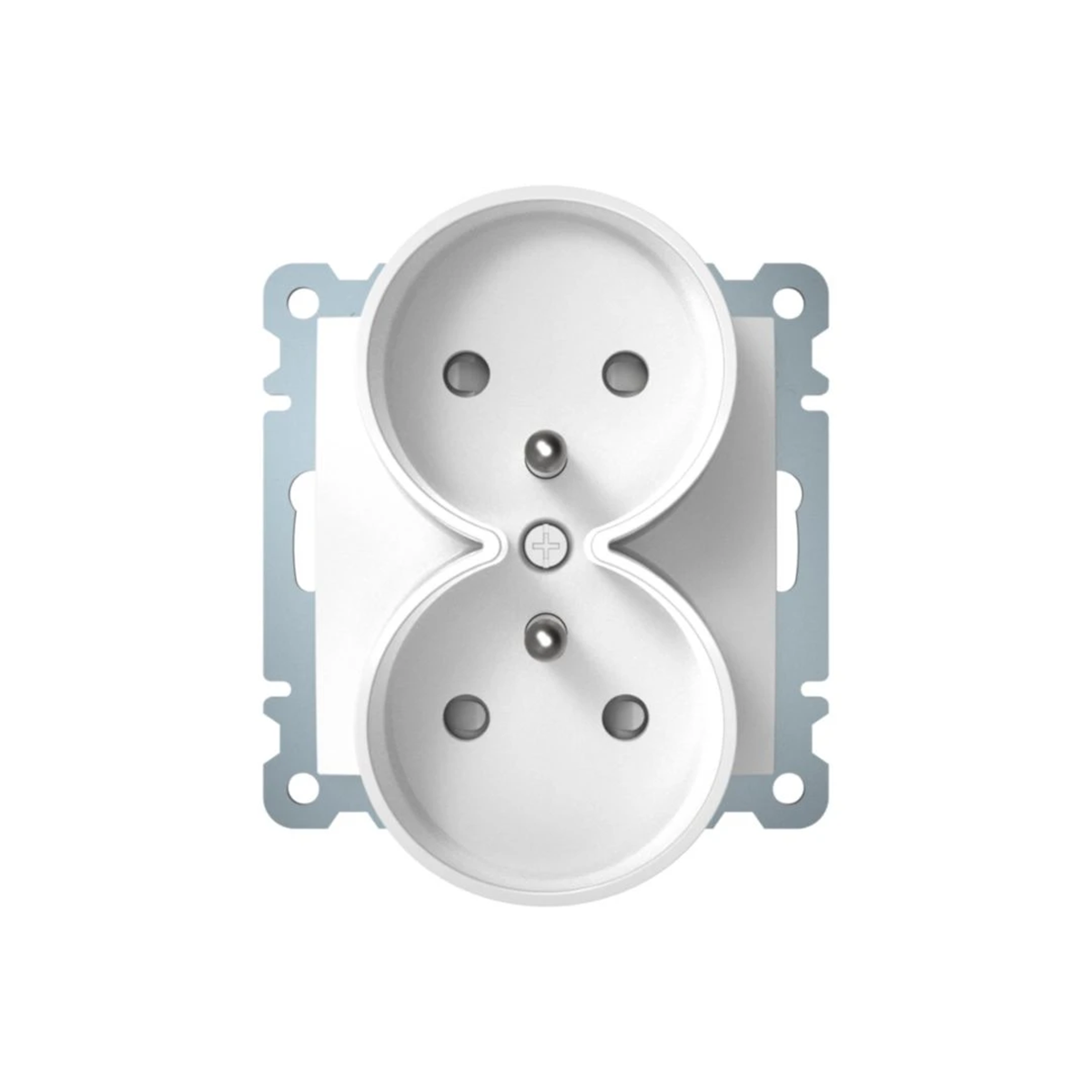

Name: B.Square Double socket with grounding for single or multiple frames, white
Brand: BERKER
SKU: MEE296BERK
Price: 8.99 PLN
Availability: InStock

Další technické údaje

Model

Earthing pin
Number of active contacts (round)

2
With signal lamp

No
Number of ports USB-C

0
Number of modules (module system)

2
Number of phases

1
Connection type

Screwed terminal
With enhanced contact protection

Yes
Colour

White
Metallic colour

No
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Other
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK02
Device height

84.6 mm
Min. depth of built-in installation box

30 mm
Compatible with Amazon Alexa

No
IFTTT support available

No
With built-in bluetooth speaker

No
Compliant with UK Building Regulations Part M

No

Protective contact

Round
Number of active contacts (flat)

0
Number of ports USB-A

0
Number of units

2
Number of socket outlets switchable

0
Imprint/indication

None
With hinged lid

No
Label space/information surface

No
RAL-number (similar)

9010
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
With loop through function

No
Colour of switch operator

White
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

54.2 mm
Compatible with Apple HomeKit

No
Compatible with Google Assistant

No
With Wi-Fi signal repeater

No
For heavy conditions according to VDE

No

Typ obalu	Karton	Pakiet	Paleta
Množství	10 kusů.	100 kusů.	1300 kusů.
Hmotnost (kg)	0,840	8,480	110,240
Šířka (m)	0,080	0,080	0,800
Délka (m)	0,050	0,050	1,400
Hloubka (m)	0,070	0,070	1,200

B.Square Double socket with grounding for single or multiple frames, white 5361878989
