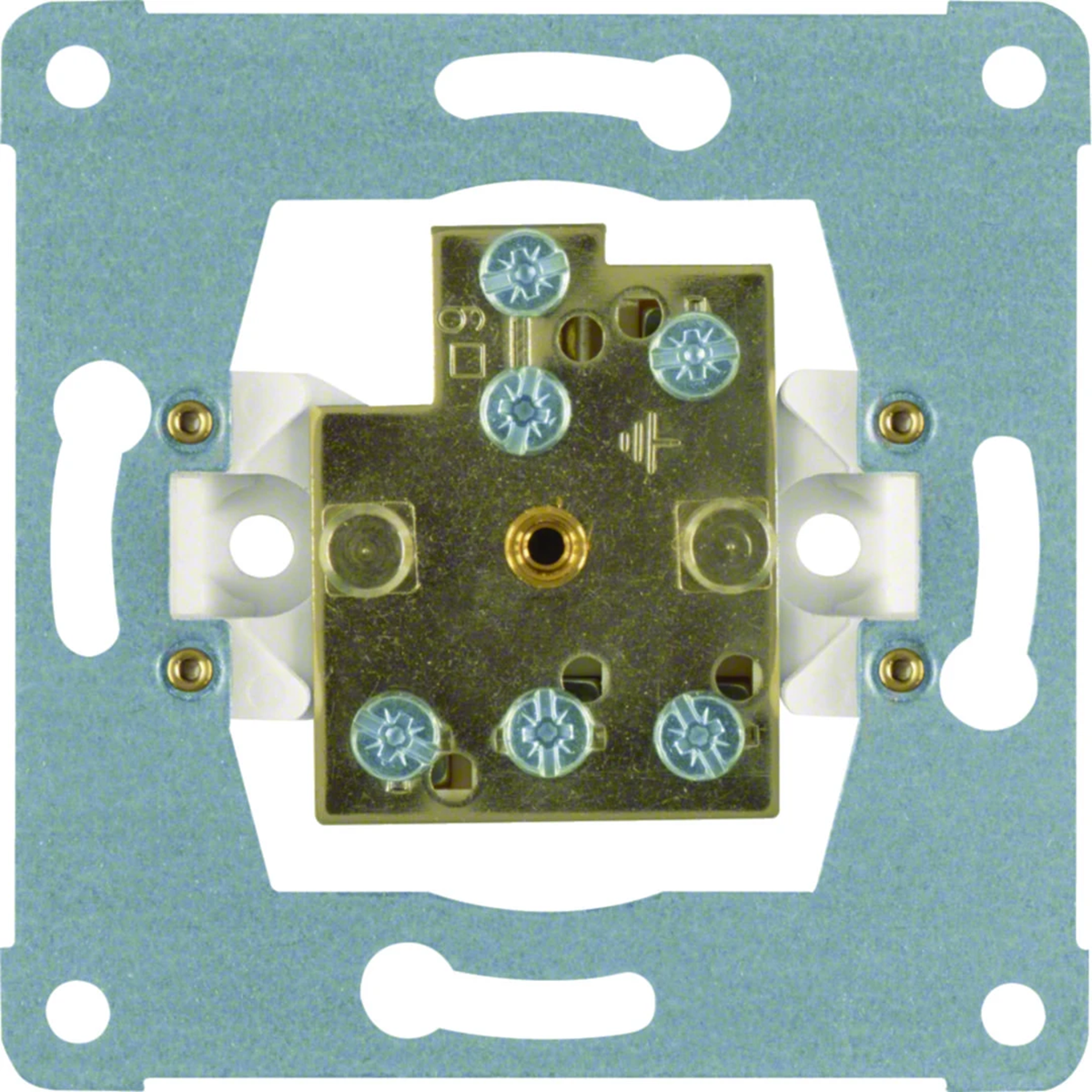

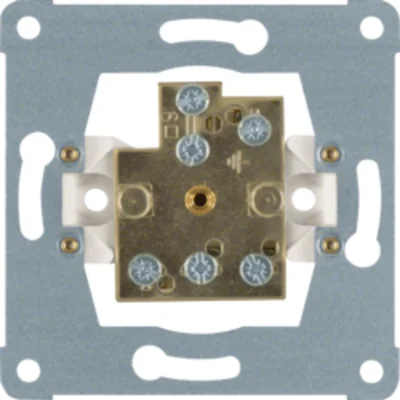

B.SQUARE Double one.platform equipotential bonding socket mechanism 1061

local index:
MJS001BERK
Catalog No:
1061
EAN code:
4011334003779
Manufacturer: BERKER
Number of sockets: 2
Shape: Square
Material: Plastic | Metal
Price:
34,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Equipotential socket mechanism from the one.platform series, from the manufacturer Hager. The product catalog number is < strong>1061.



FEATURES

  • Equipotential bonding socket mechanism.
  • < strong>Double socket.
  • Without spreaders.
  • With screw terminals.
  • For "earthing" technical medical devices.
  • Maximum cable cross-section max. 6 mm².
  • DIN 42801 compliant.

Technical data

  • Number of sockets
    2
  • Material
    Plastic Metal
  • Family
    ONE.PLATFORM
  • Maximum conductor cross-section [mm²]
    6
  • Terminal type
    Threaded
  • PKWIU
    27.33.13.0
  • Shape
    Square
  • Type
    Equipotential
  • Type
    Socket mechanism
  • Mounting depth [mm]
    17.5
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Other
  • Model
    Socket outlet 1-position
  • Material
    Other
  • Halogen free
    Yes
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,071 0,720 3,995 150,840
Width (m) 0,071 0,170 0,300 0,800
Length (m) 0,027 0,075 0,225 1,050
Depth (m) 0,071 0,240 0,400 1,200
