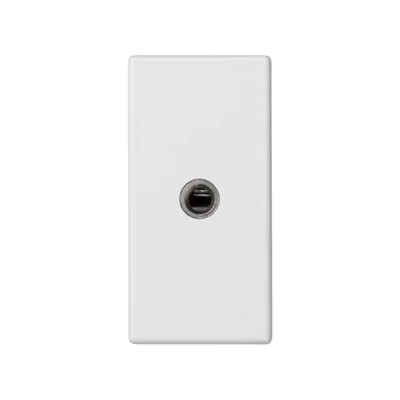

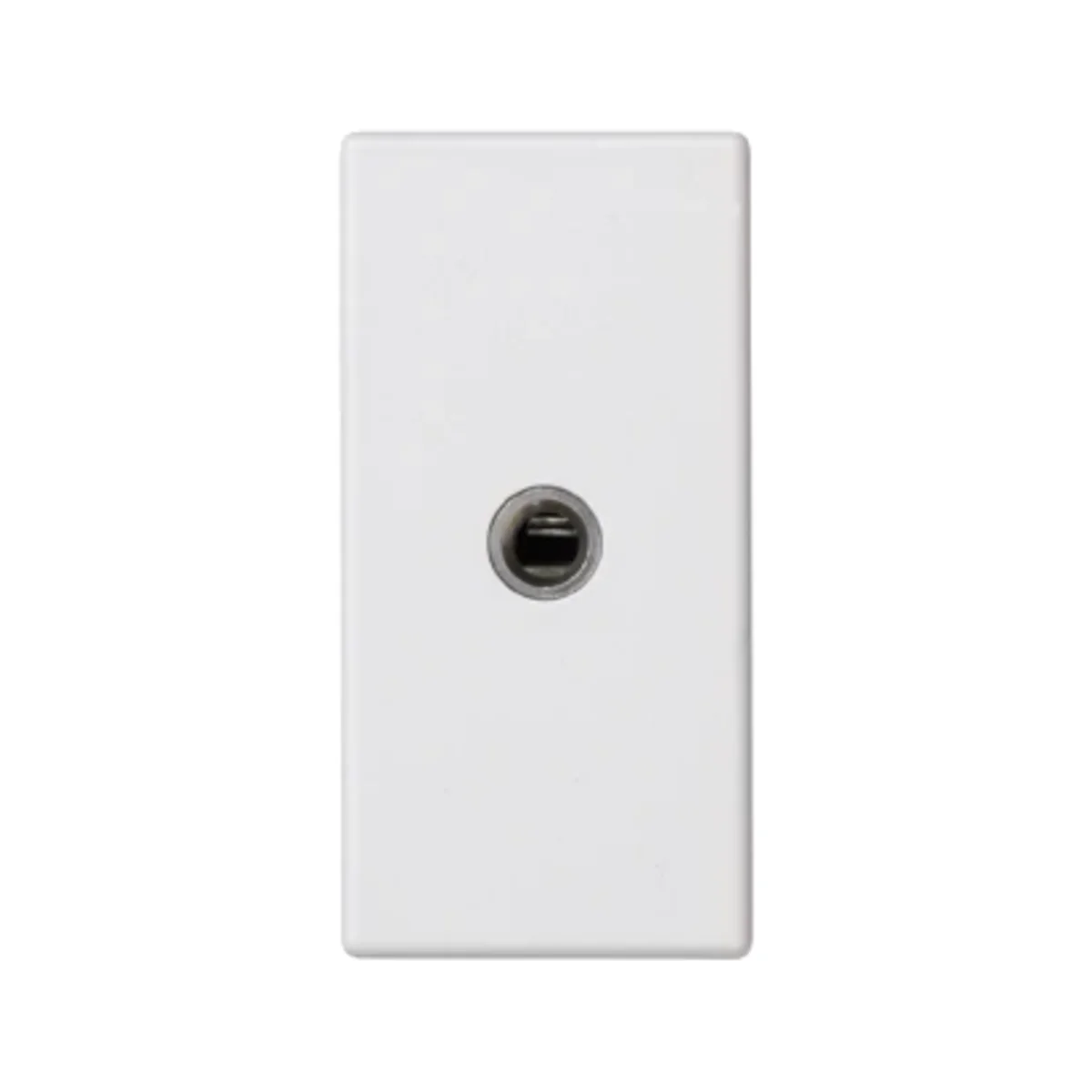

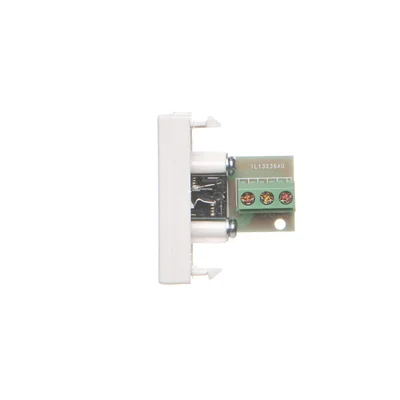

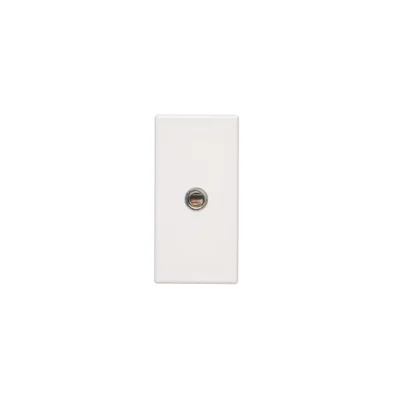

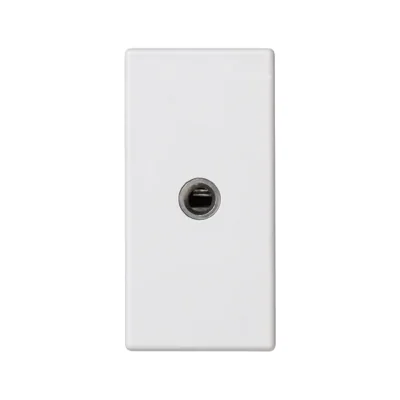

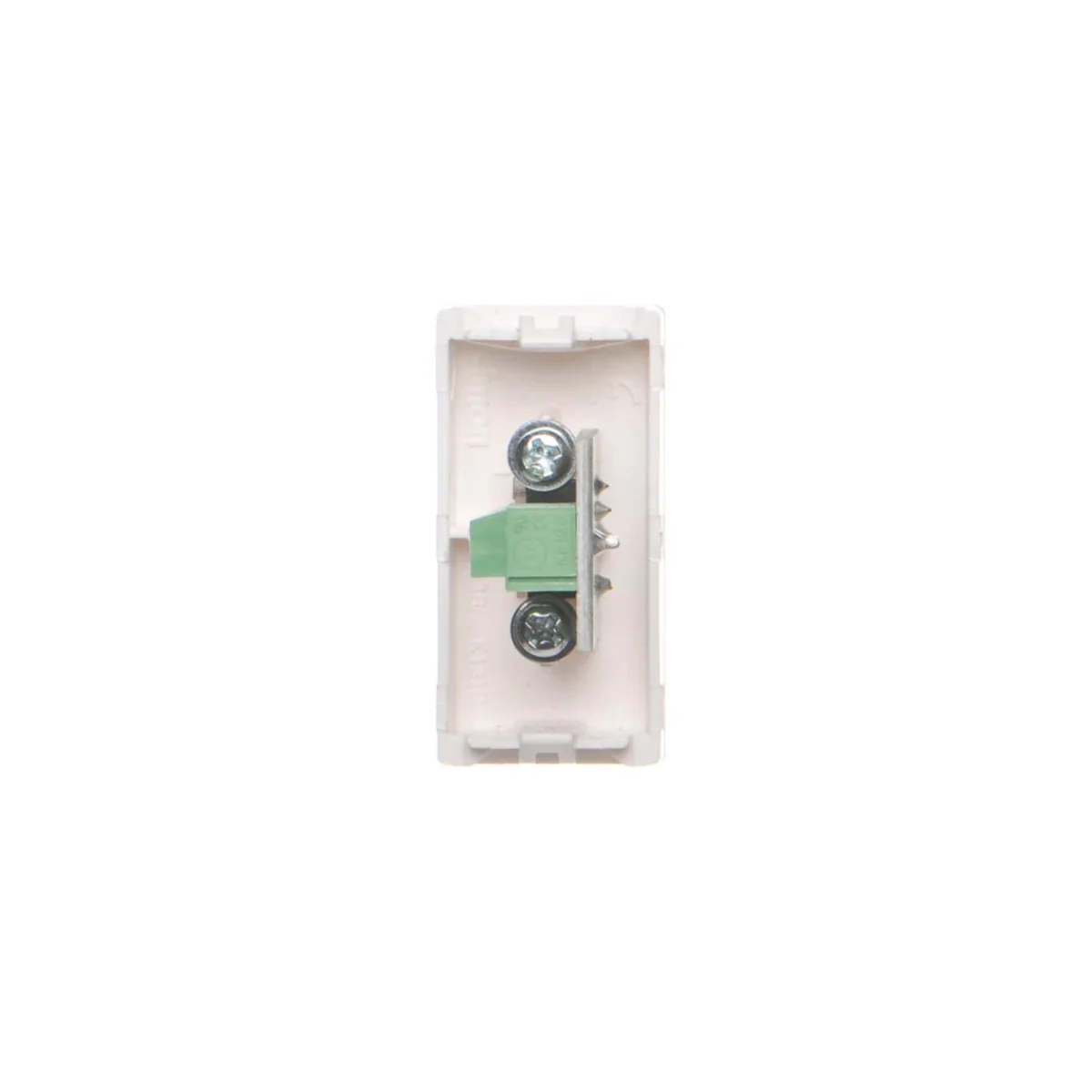

Board K45/2 mini-jack sockets 22, 5x45mm + insert, screw terminals K123B/9

Name: Board K45/2 mini-jack sockets 22, 5x45mm + insert, screw terminals
Brand: KONTAKT-SIMON
SKU: MGG008KONT
Price: 12.72 PLN

local index:

MGG008KONT

Catalog No:

K123B/9

EAN code:

8426436064751

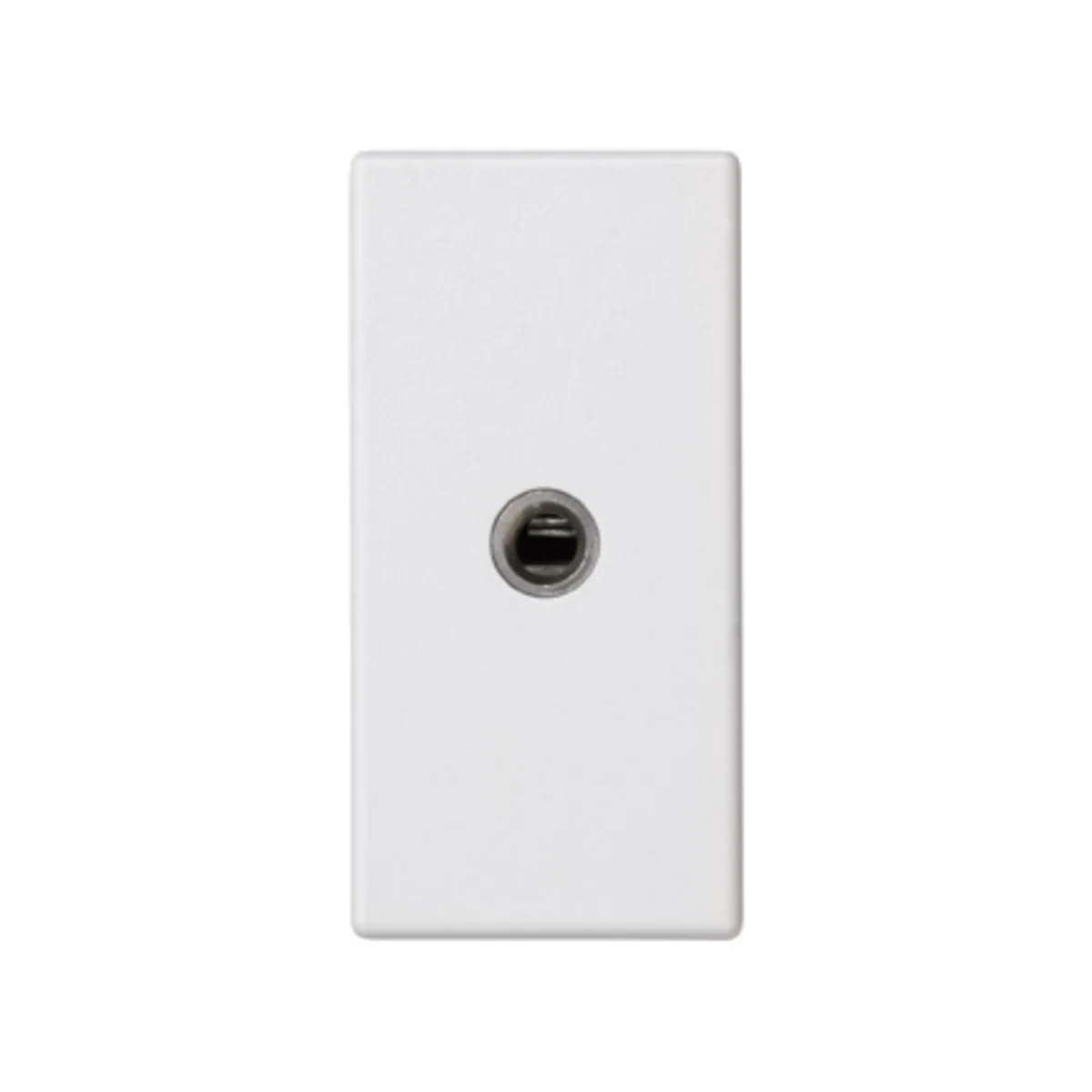

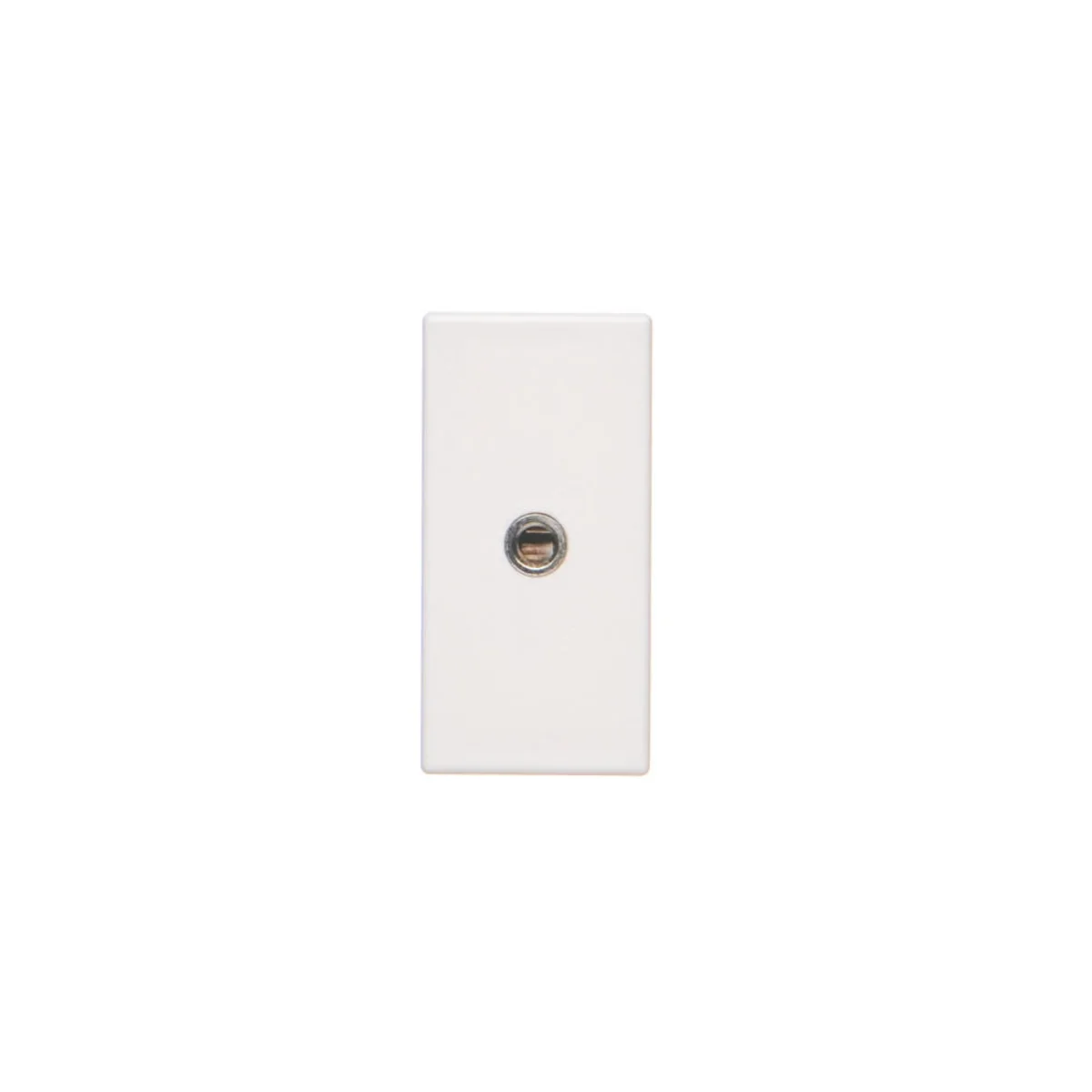

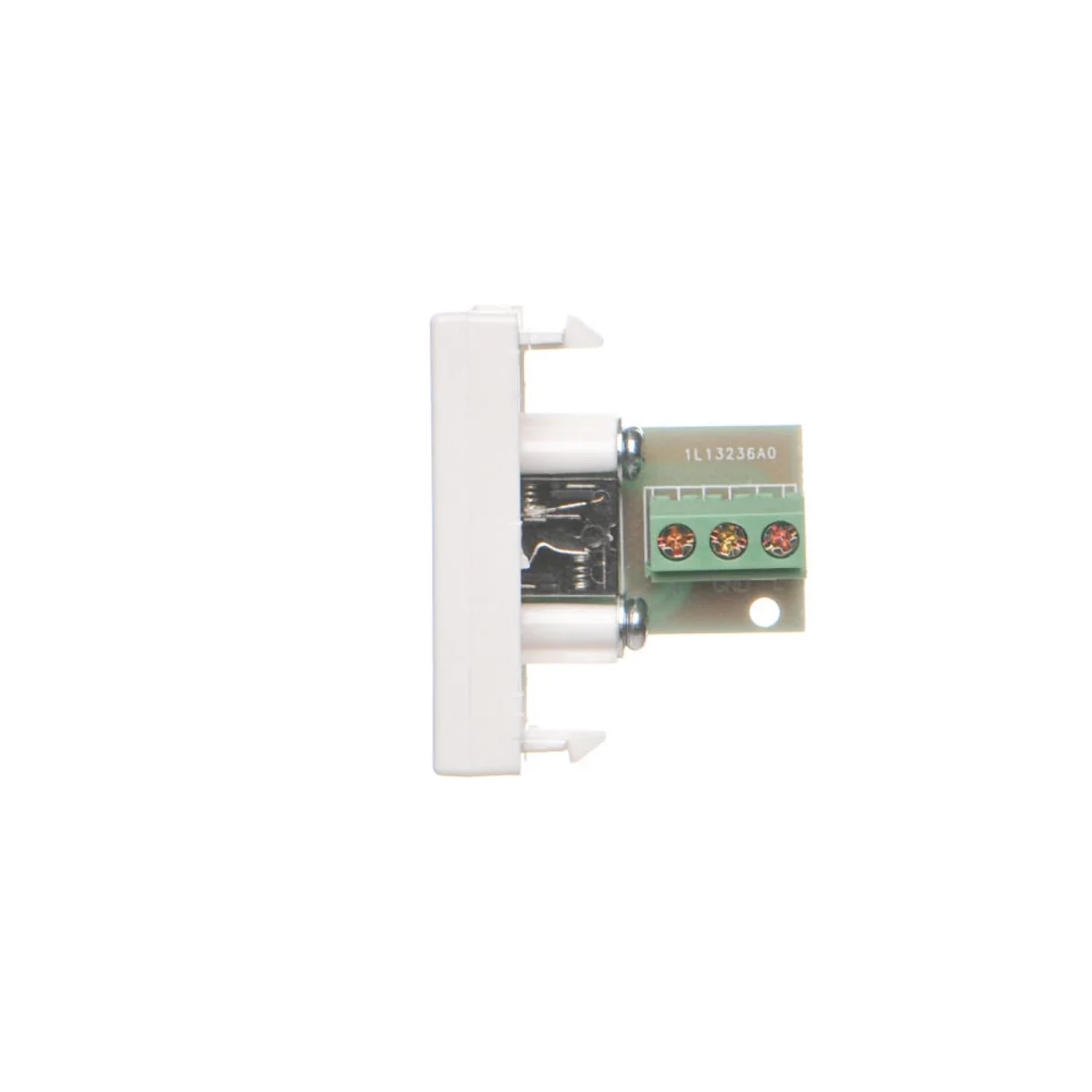

Board K45/2 mini-jack sockets 22, 5x45mm + insert, screw terminals

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 36

Number of sockets: 1

See full description

Price:

12,72 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Mini-jack standard K45, from the manufacturer Contact Simon. The product catalog number is K123B/9.

SERIES DESCRIPTION

RCA socket of the K45 standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Rectangular
Installation

Snaps
Family

K45
Width [mm]

22.5
Height [mm]

45
Surface finish

matte
Backlight

NO
Mounting direction

Vertical
Variant

JACK
PKWIU

27.33.13.0

Depth [mm]

36
Color

White
Material

Plastic
Type

speaker
Level of security

IP20
Type

45x45
Surface protection

Natural
Accurate color

Pure white
Mounting depth [mm]

36
Terminal type

Threaded
For the frame system

Yes

Other technical data

Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Utilization

Modular Jack
Surface protection

Untreated
Colour

White

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,020	0,020	0,021
Width (m)	0,045	-	0,105
Length (m)	0,023	-	0,220
Depth (m)	0,036	-	0,052
