Blind switch, 2-gang, 1-pole, mechanism, self-clamping 53303520
local index:
MPO001BERK
Catalog No:
53303520
EAN code:
4011334447771
Price:
9,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

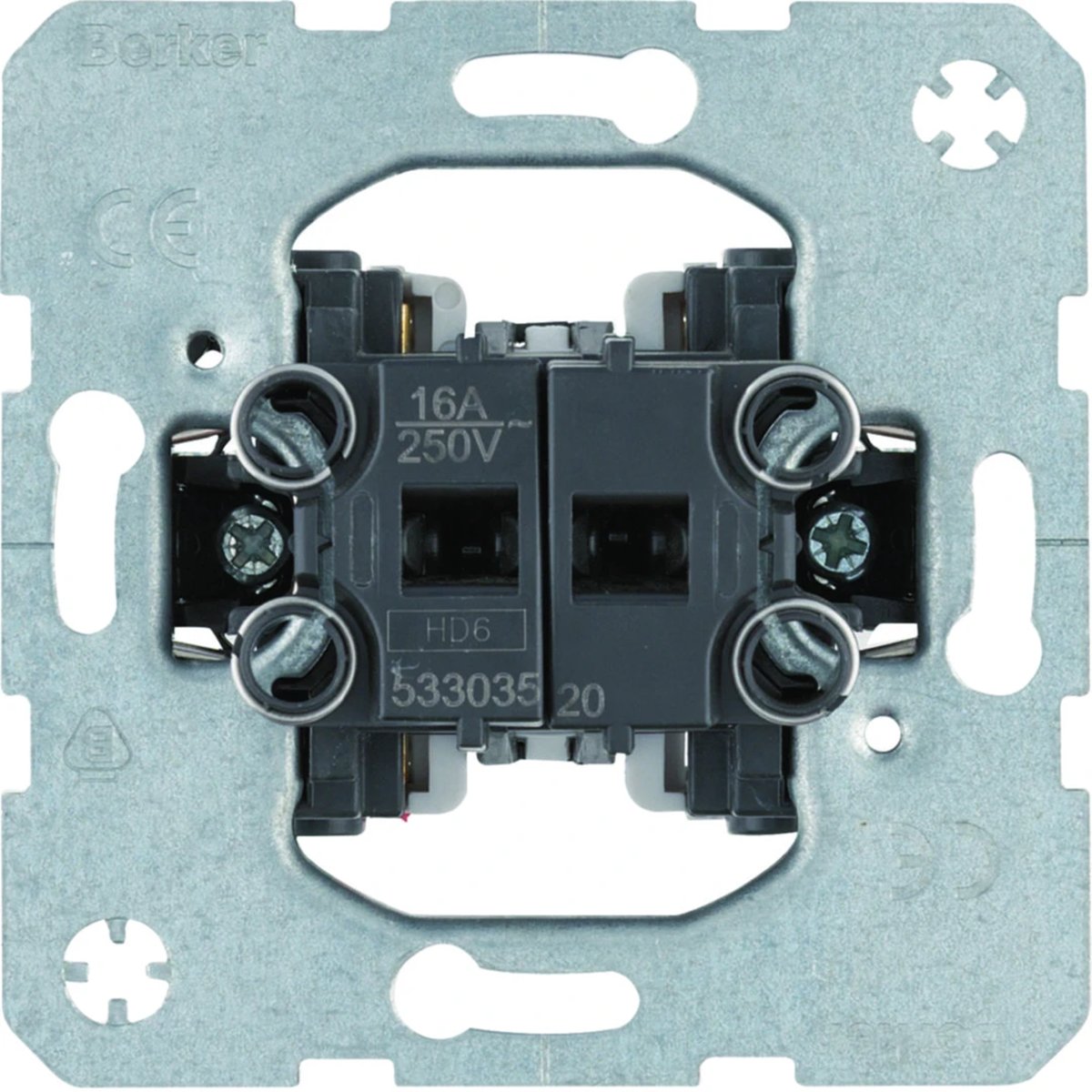

The shutter switch mechanism from the one.platform series, from Berker. Product part number is 53303520.
- 2-gang.
- 1-pole.
- With plug-in terminals.
- With mechanical and electrical interlocking as security for simultaneous switching in both directions (switching).
Technical data
-
Number of keys2
-
MaterialMetal Plastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]71
-
BlockadeElectric Mechanical
-
VariantTwo-position
-
PKWIU27.33.11.0
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeShutter
-
Width [mm]71
-
VersionSingle
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialOther
-
Halogen freeYes
-
Type of fasteningMounting with claw
-
Label space/information surfaceNo
-
Rated current16 A
-
Min. depth of built-in installation box35 mm
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,058 | 0,680 | 3,770 | 145,640 |
| Width (m) | 0,071 | 0,175 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,080 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,240 | 0,400 | 1,200 |
