Blind button to control the roller shutter 10A SZP1WM

local index:
MPO004KONT
Catalog No:
SZP1WM
EAN code:
5902787847258
Manufacturer: KONTAKT-SIMON
Depth [mm]: 32
Number of keys: 2
Shape: Square
Price:
10,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

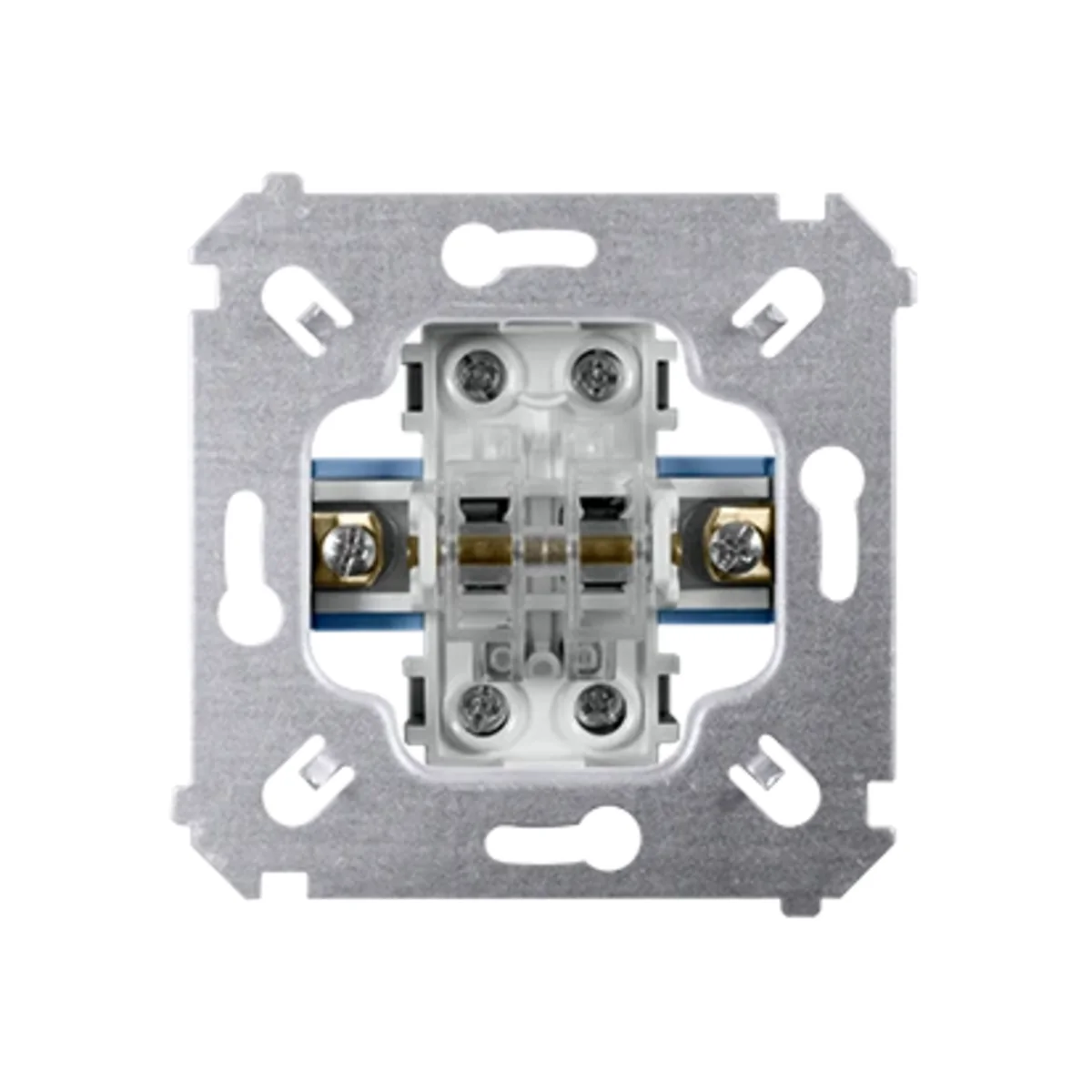

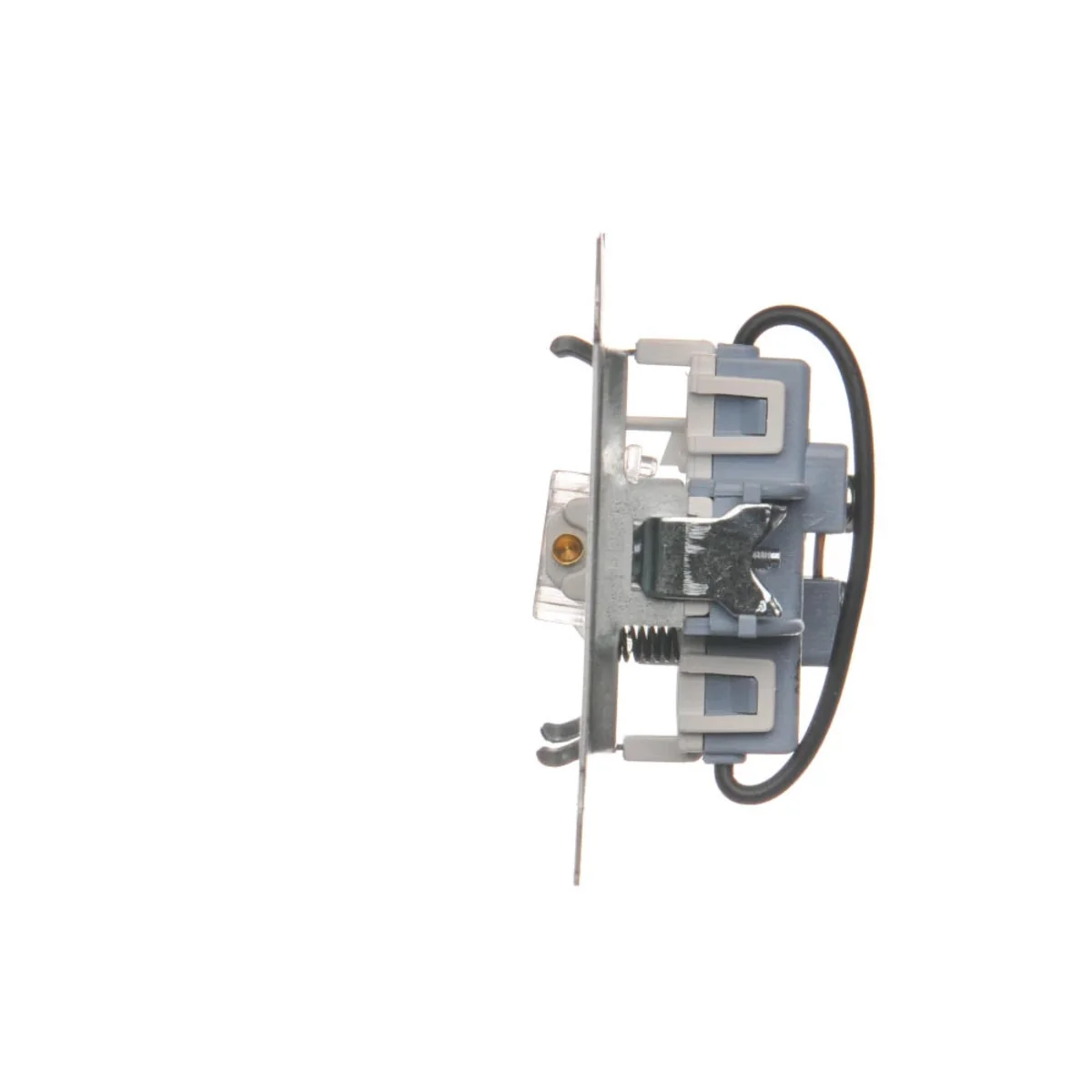

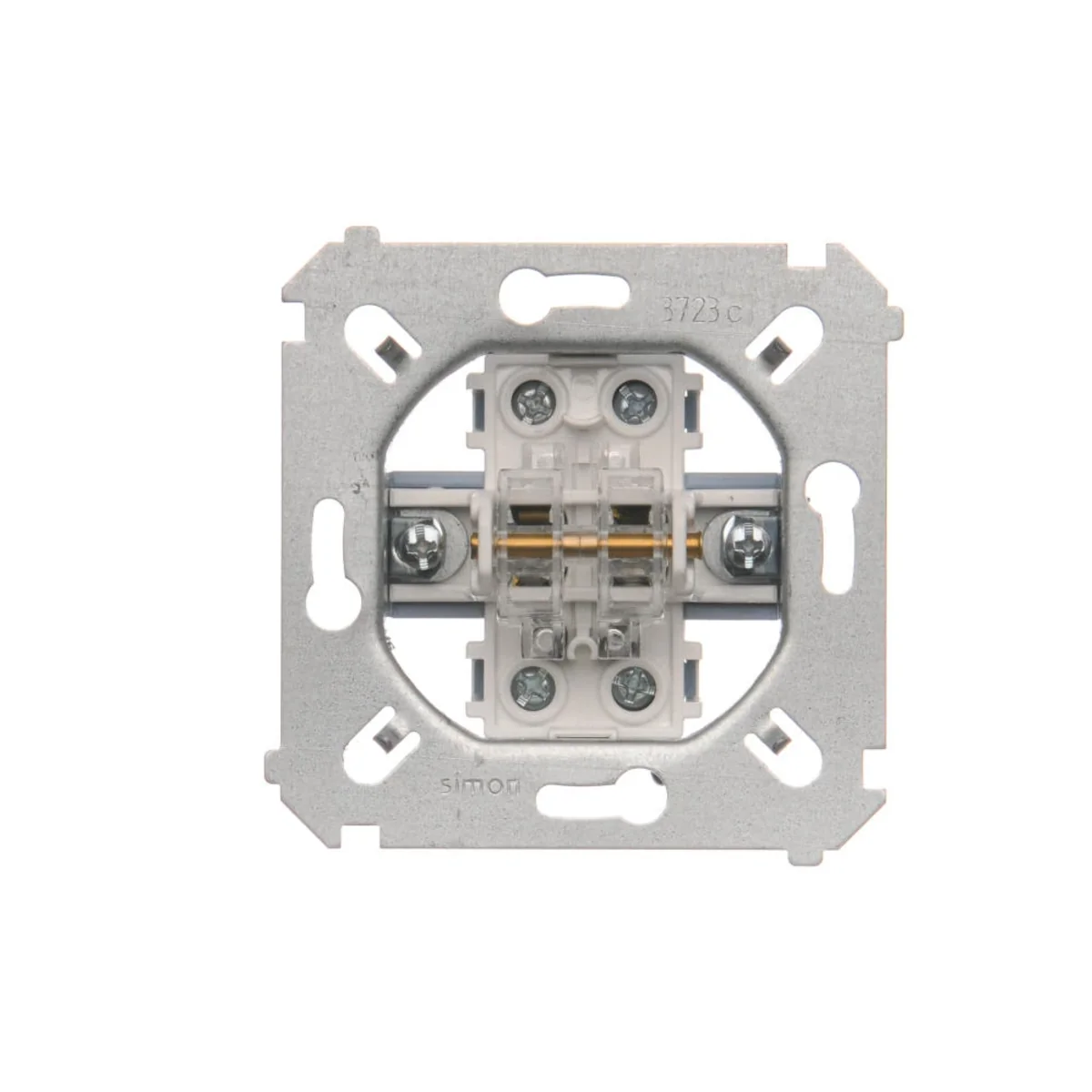

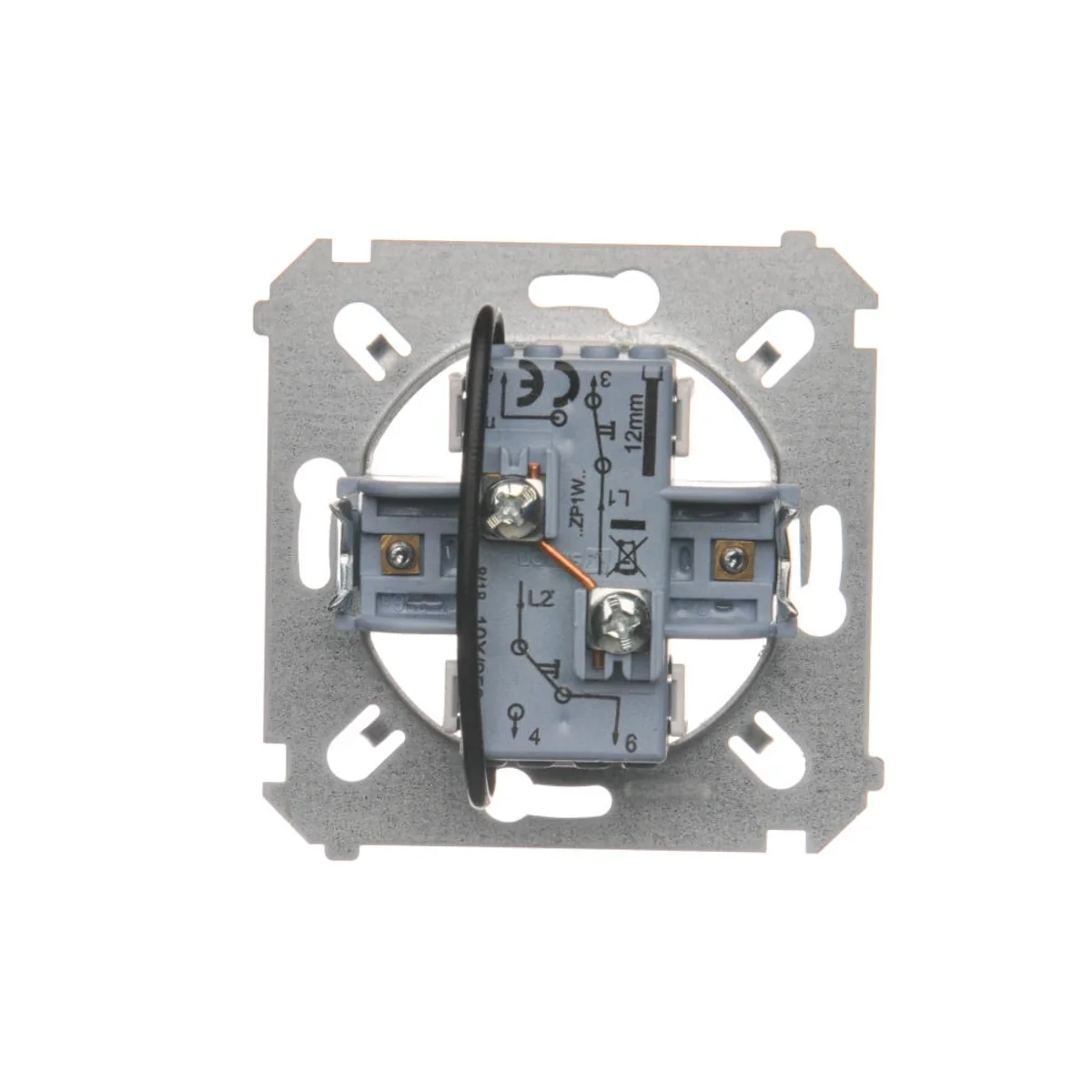

The shutter button  mechanism from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SZP1WM.



FEATURES:

  • To control one roller shutter from many places.
  • Screw terminals.
  • To obtain IP44 splash-proof class, use a gasket under the keys and a gasket for the frame.
  • Dedicated to: DKZP1W/.. shutter buttons - 6 colorów.
  • Monostable button.
  • Serial button.
  • Rocker switch.
  • Mechanical control.
  •

    SERIES DESCRIPTION

    Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and various colors. The mechanism of the shutter button characterizes the features of this unique series.

Technical data

  • Depth [mm]
    32
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Height [mm]
    75
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    Natural
  • Mounting depth [mm]
    26
  • Variant
    Two-position normally open
  • Additional information
    serial button

Other technical data

  • Assembly arrangement
    Basic element
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Mechanical controllable
    Yes
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,645 0,645 0,734
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,037 0,230
Depth (m) 0,032 0,160 0,100
