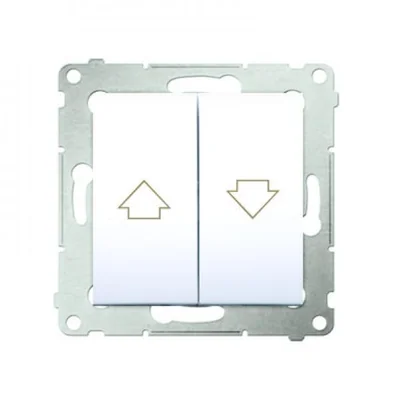

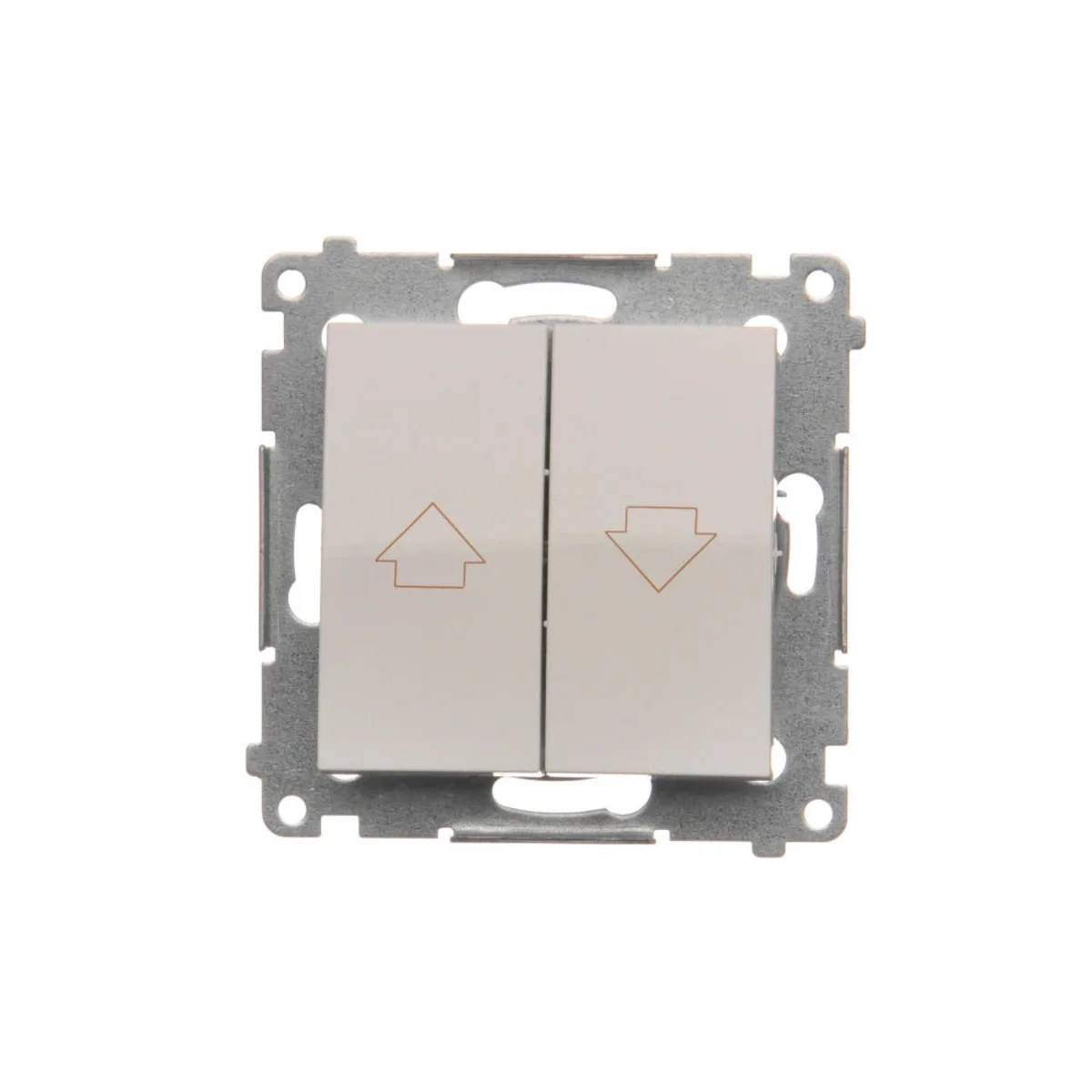

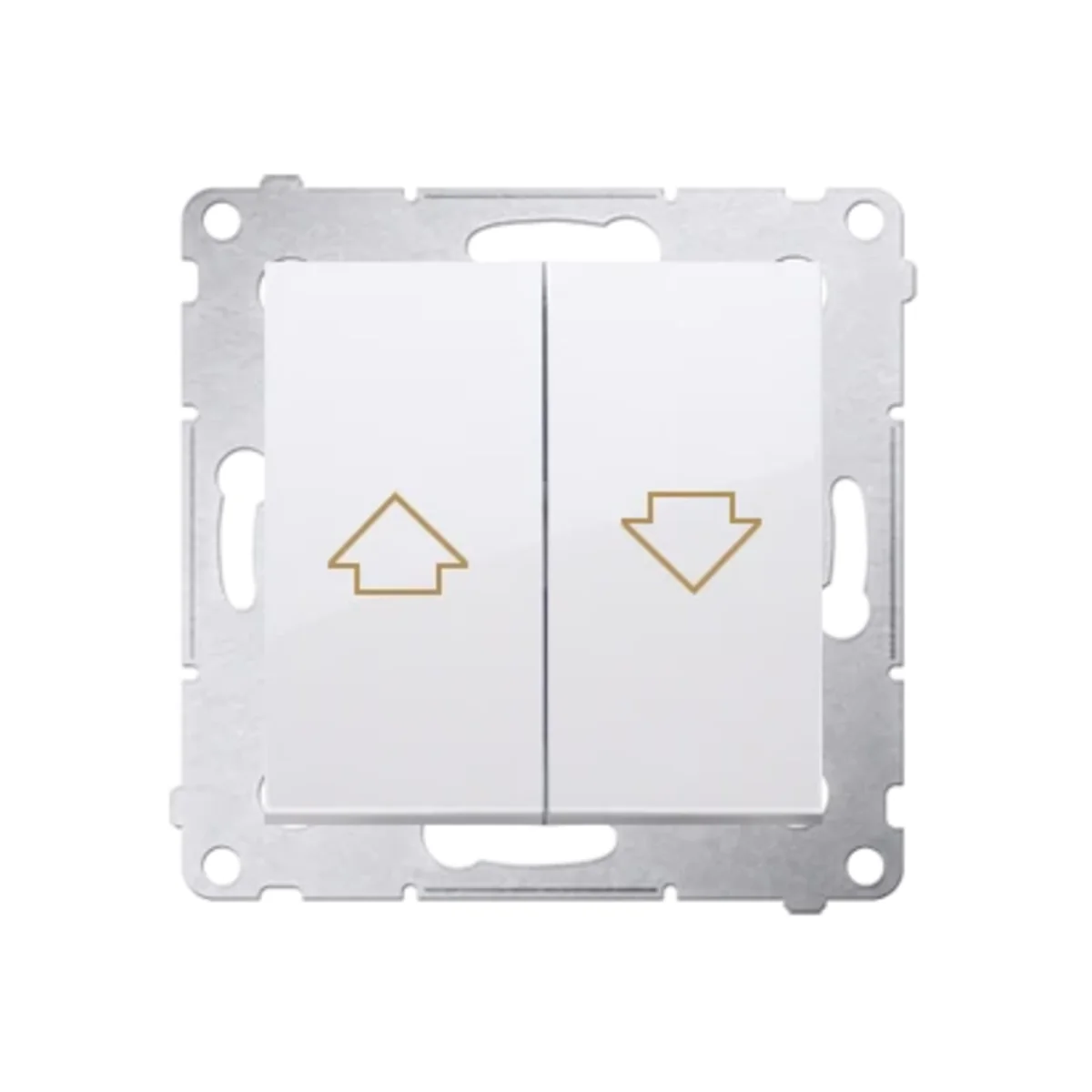

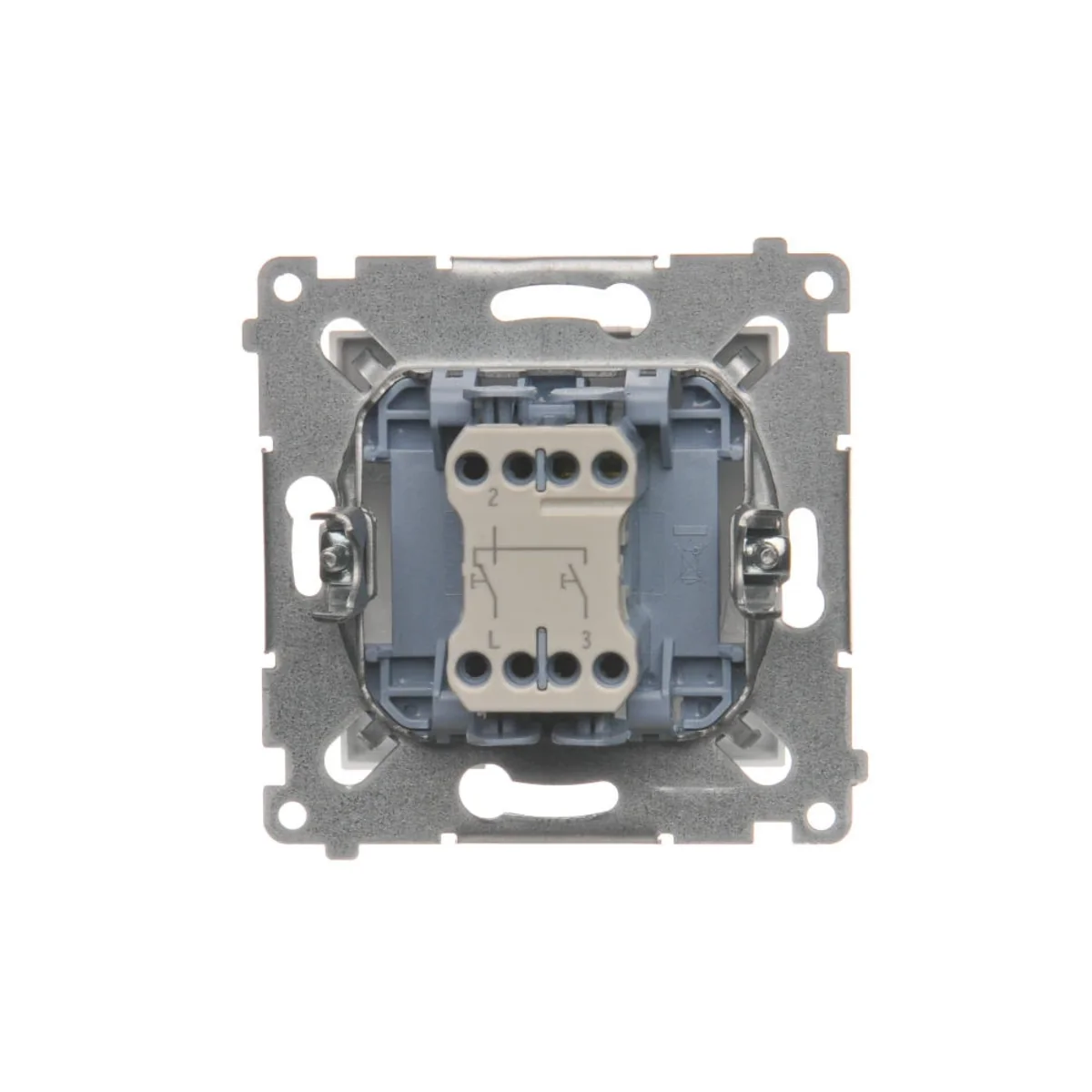

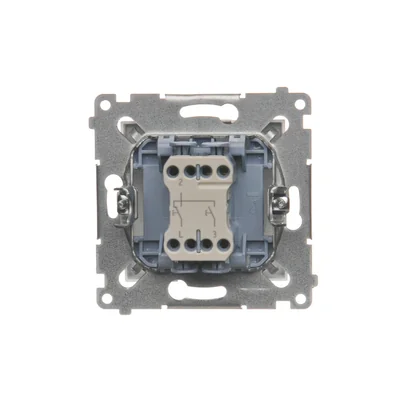

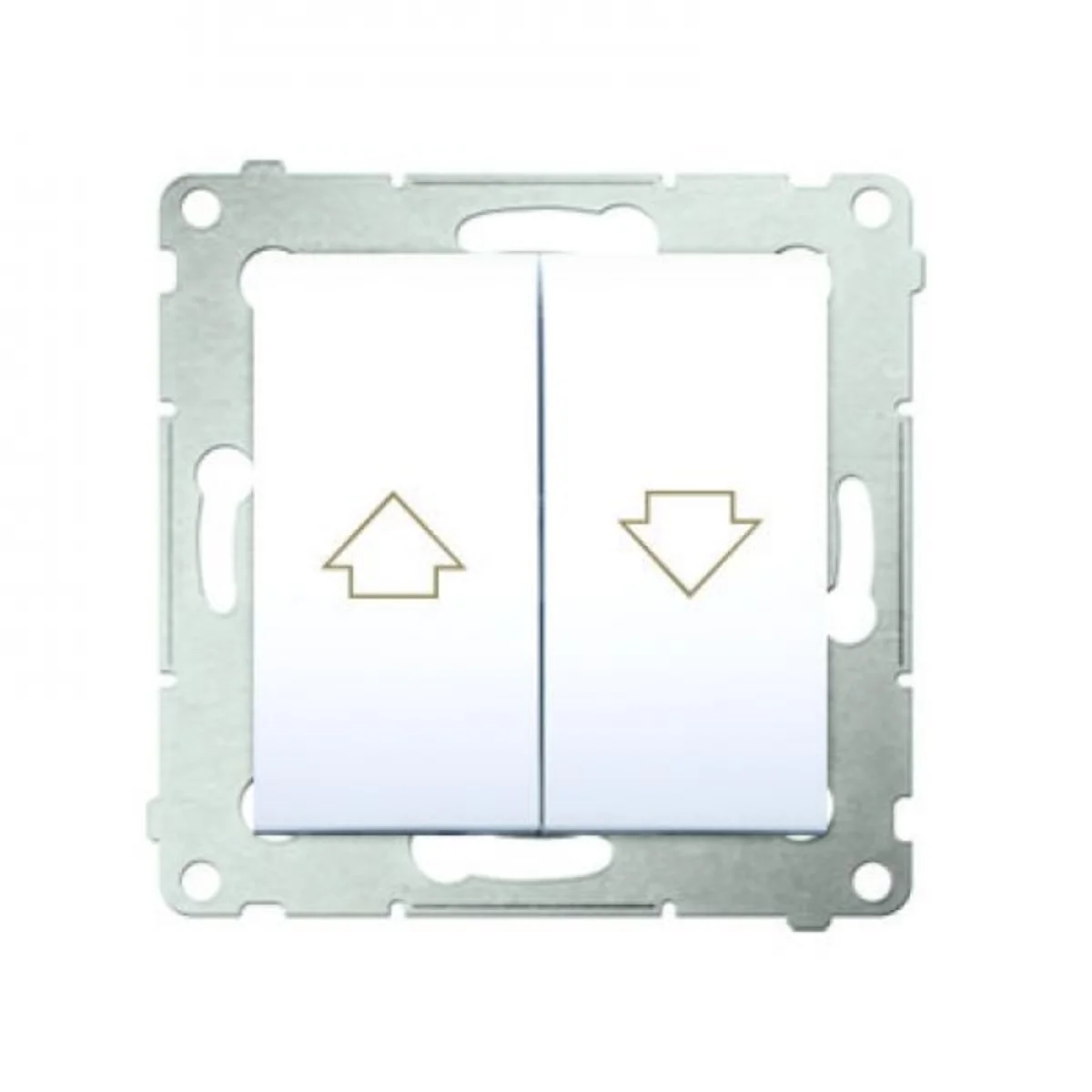

Louvre button from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DZP1.01/11.

FEATURES

Single.
Quick connectors.
To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.
Installation of roller shutter buttons requires additional wiring.

< p>

The DZP1.01 roller shutter button connected to group and local roller shutter controllers can be used as a central roller shutter button. Thanks to it, it will be possible to raise and lower all roller shutters from one place.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The shutter button characterizes the features of this unique series.

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Width [mm]

75
Version

Single
Surface protection

Natural
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

45
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Blinds
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

33
Variant

Two-position normally open
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Mechanical controllable

Yes
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,059	0,059	0,679
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,050	0,230
Depth (m)	0,045	0,160	0,100
