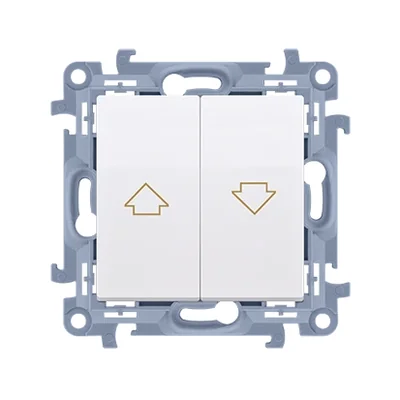

Blind button (module) 10A 230V white CZP1.01/11

Name: Blind button (module) 10A 230V white
Brand: KONTAKT-SIMON
SKU: MMO092KONT
Price: 6.22 PLN

local index:

MMO092KONT

Catalog No:

CZP1.01/11

EAN code:

5902787841690

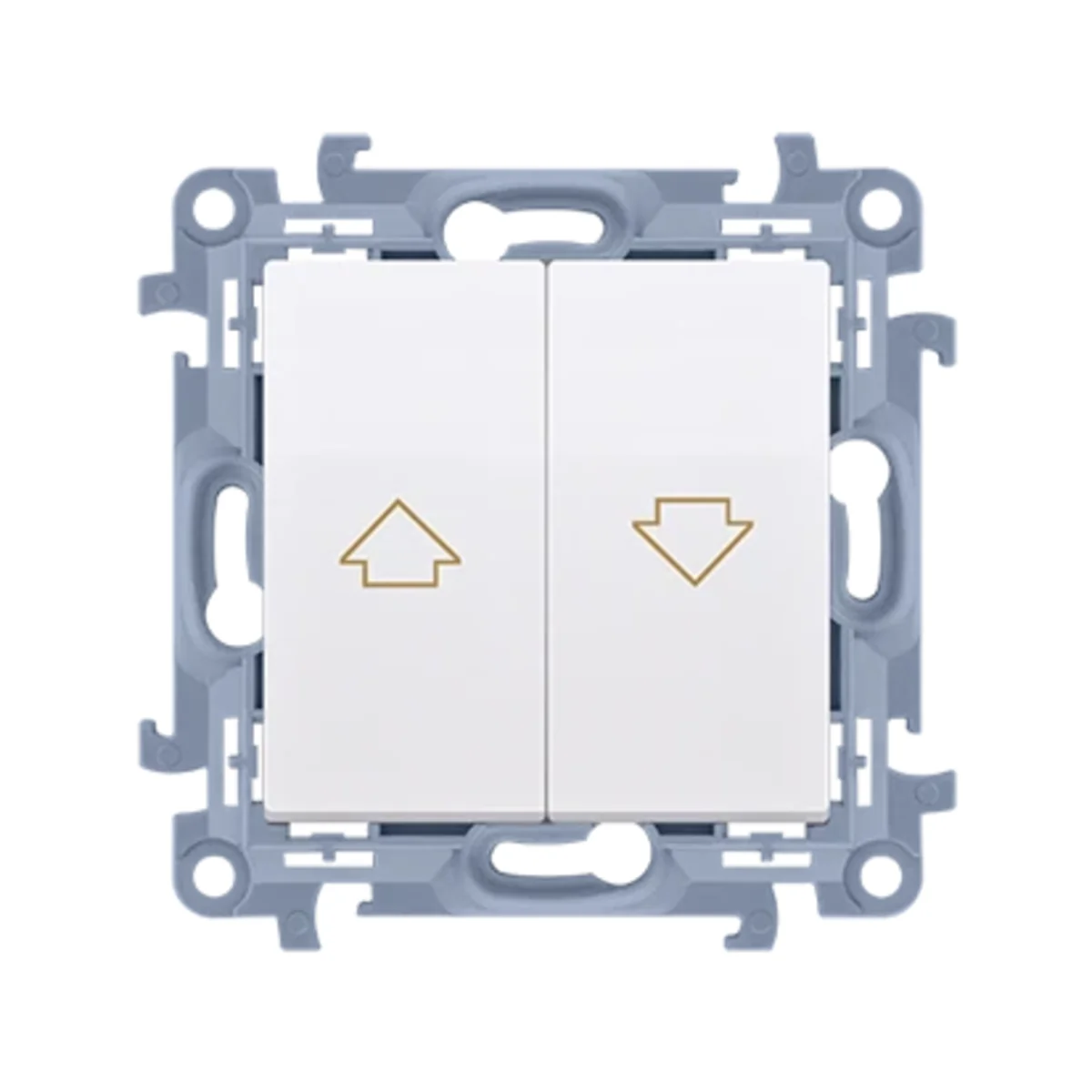

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 42

Number of keys: 2

Color: White

See full description

Price:

6,22 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Jalouver button from the Simon 10 series, from the manufacturer Contact Simon. The product's catalog number is CZP1.01/11.

To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.

SERIES DESCRIPTION

Simon 10 is an economical series of electrical equipment, the colors of which are limited to white and cream. The shutter button characterizes the features of this unique series.

Technical data

Depth [mm]

42
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 10
Symbol

Blinds
Type

Flush-mounted
Height [mm]

77
Surface finish

Shiny
Mounting depth [mm]

26
Variant

Two-position normally open
PKWIU

27.33.11.0

Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Width [mm]

77
Version

Single
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
For the frame system

Yes

Other technical data

Assembly arrangement

Basic element with central cover plate
Mechanical controllable

Yes
Material

Plastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Model

1-pole switch
Mounting method

Flush-mounted
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,690
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,047	0,230
Depth (m)	0,042	0,160	0,100
