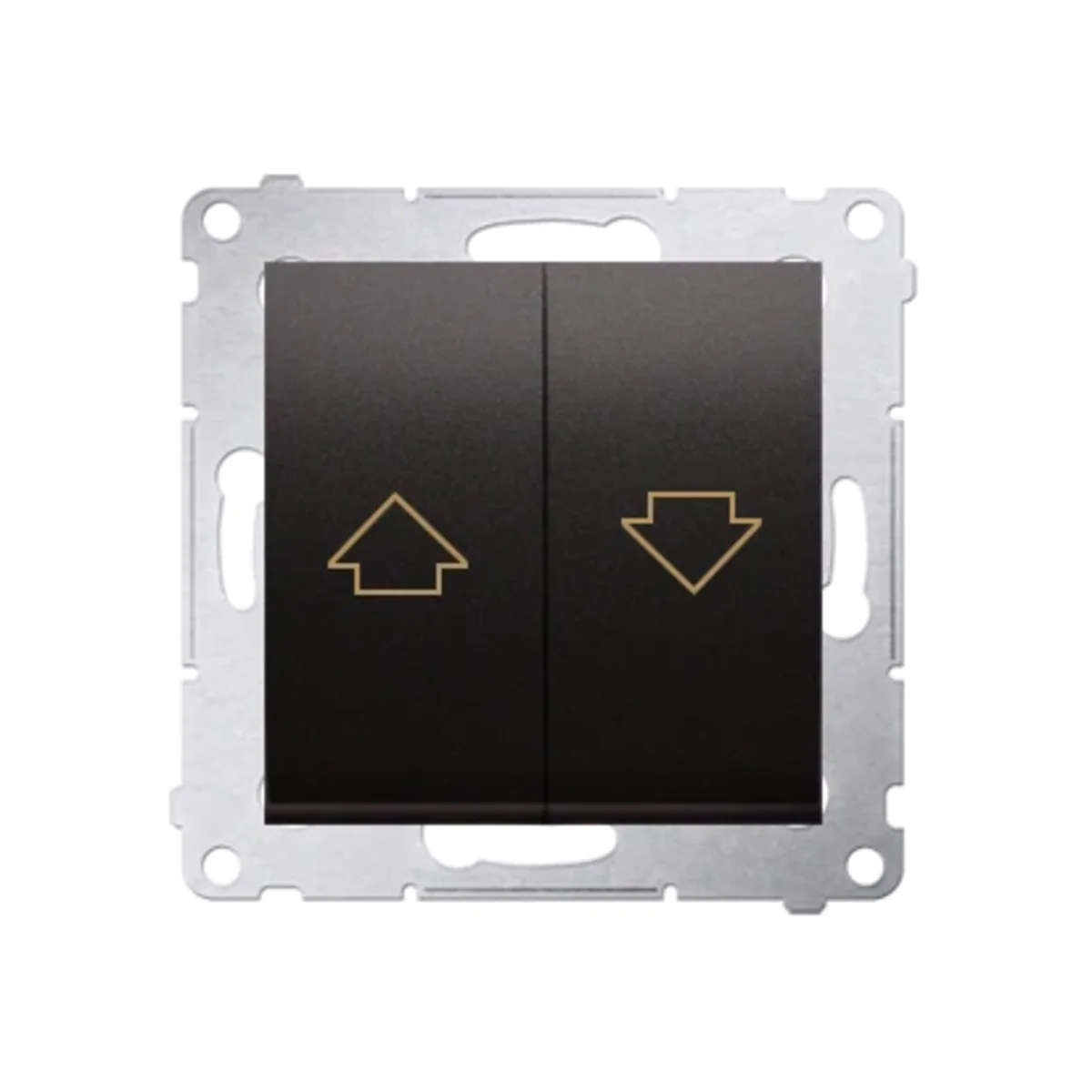

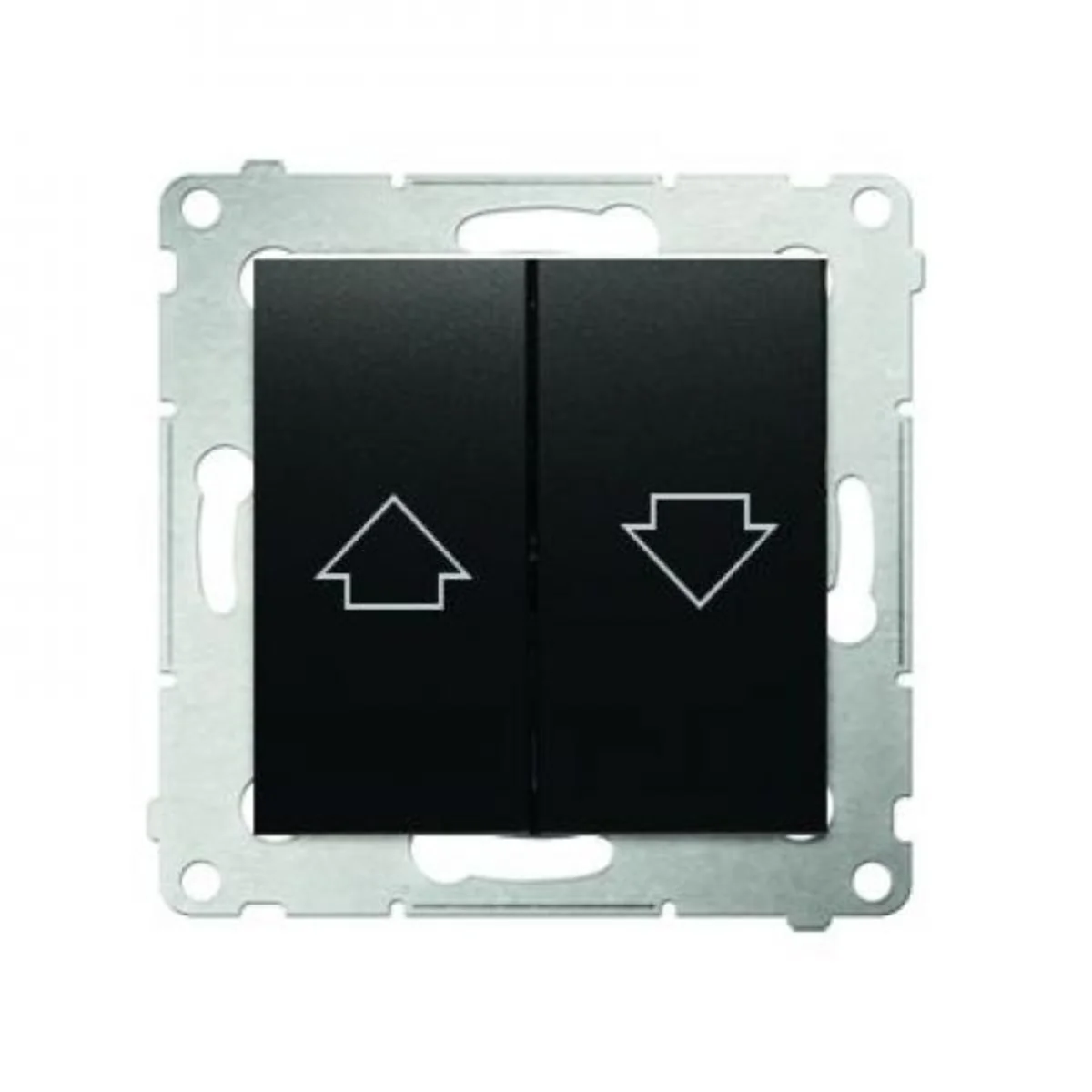

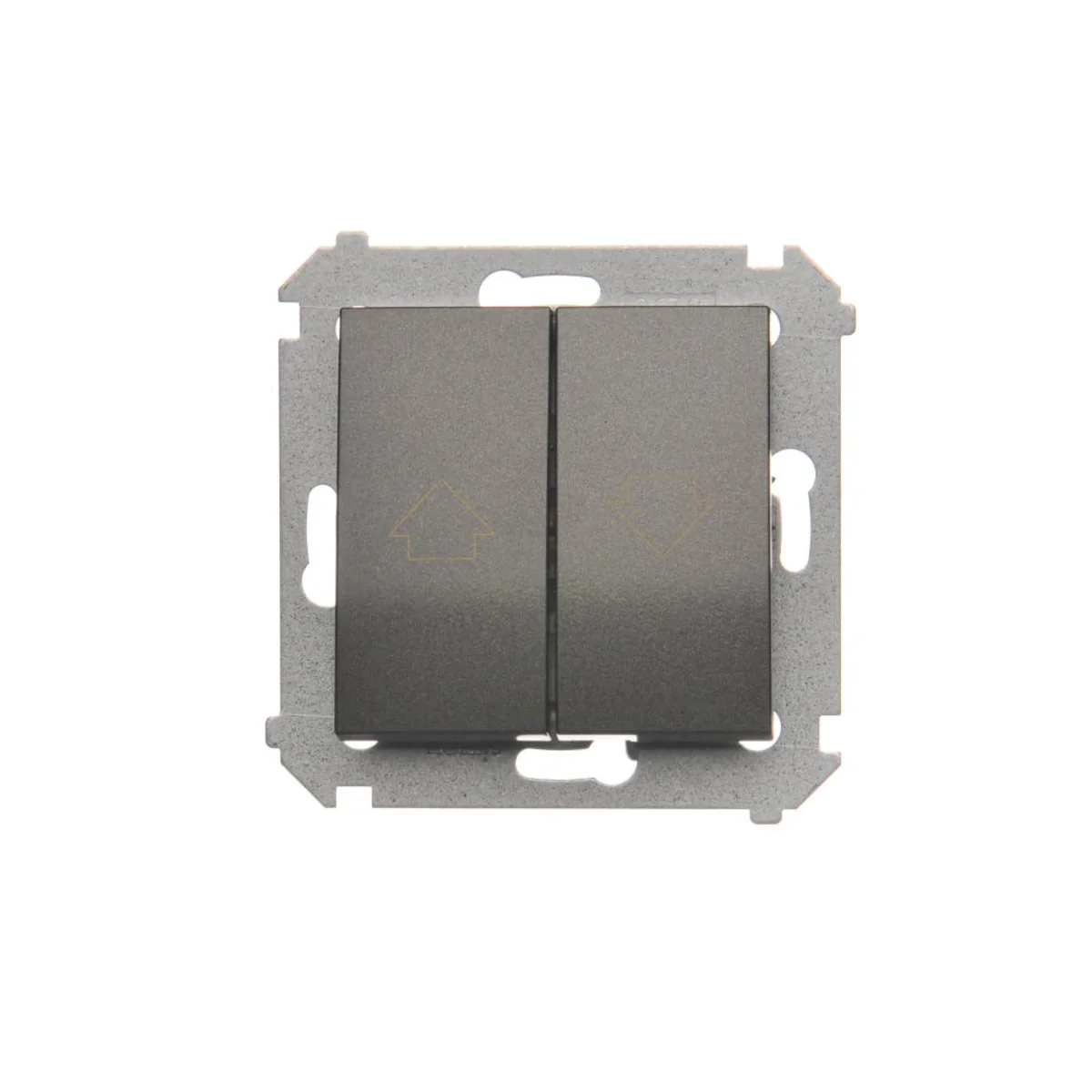

Blind button for controlling the roller shutter from many places (module) 10A 250V screw terminals anthracite (metallic) DZP1W.01/48

local index:
MMO071KONT
Catalog No:
DZP1W.01/48
EAN code:
5902787823092
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 45
Number of keys: 2
Price:
15,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Louvre button from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DZP1W.01/48.



FEATURES

  • To control one roller blind out of many places.
  • To obtain IP44 splash-proof class, use a frame gasket.
  • Serial push-button.



SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The shutter button characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    varnishing
  • Accurate color
    Metallized anthracite
  • Mounting depth [mm]
    33
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    45
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Symbol
    Blinds
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Two-position normally open
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Mechanical controllable
    Yes
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,080 0,080 0,892
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,050 0,230
Depth (m) 0,045 0,160 0,100
