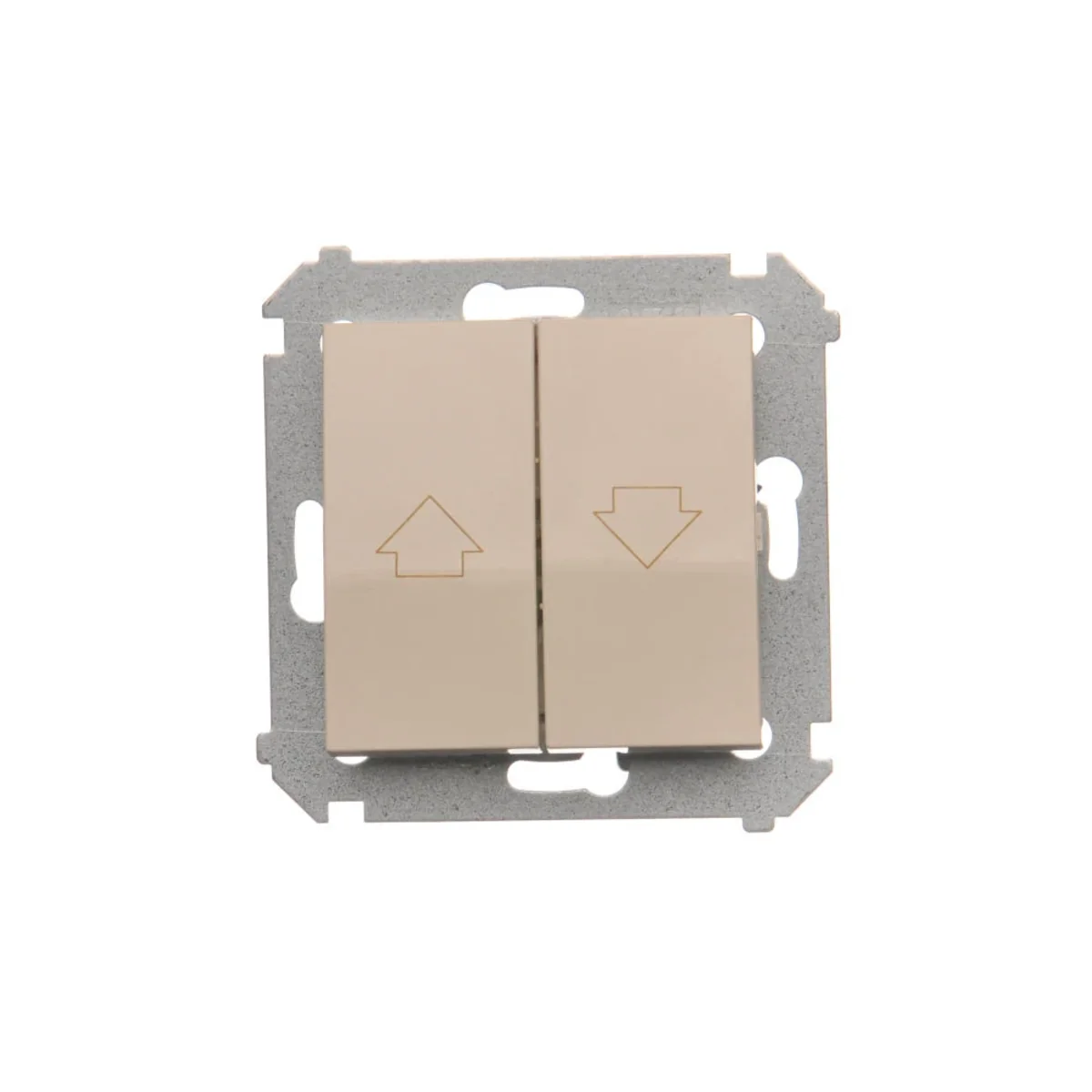

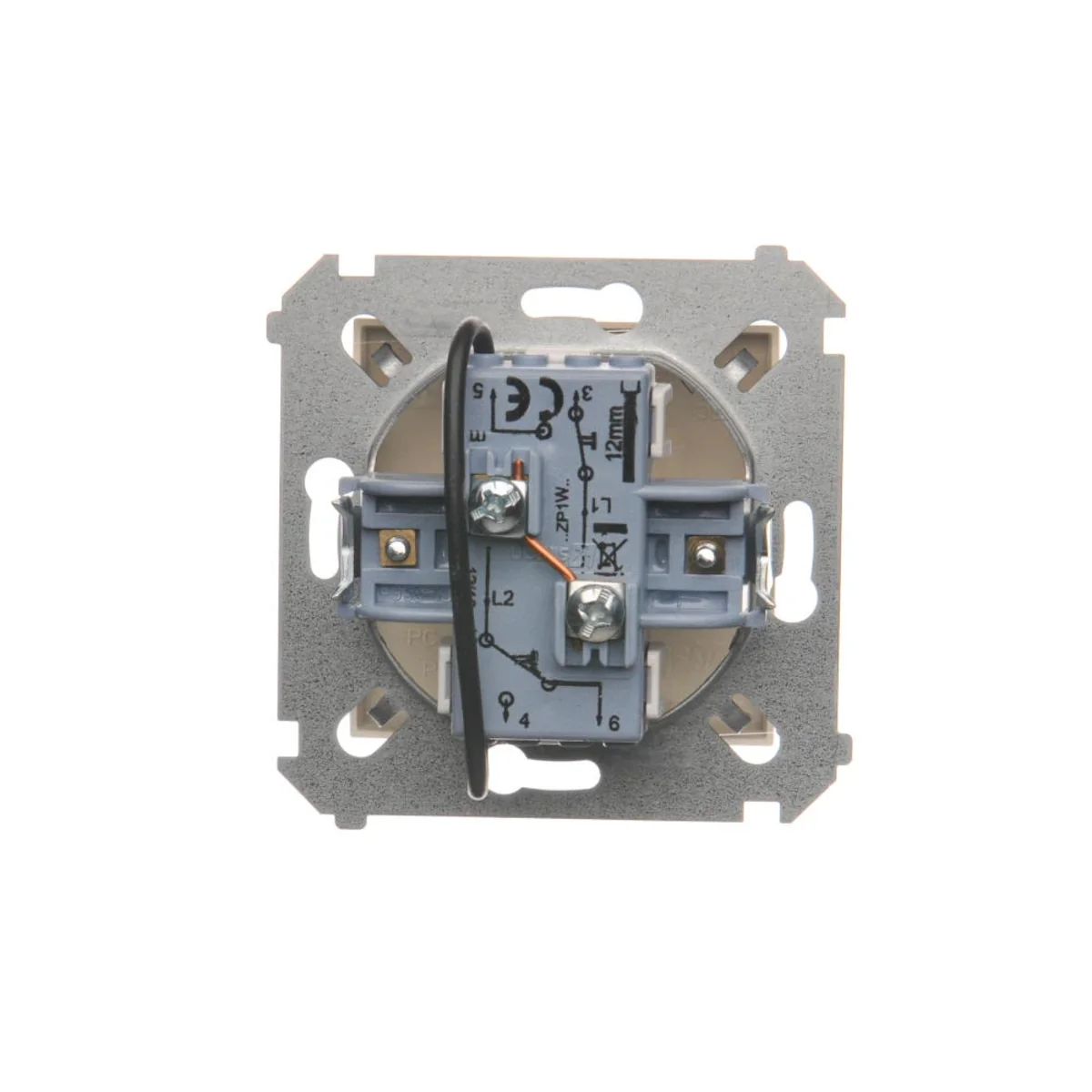

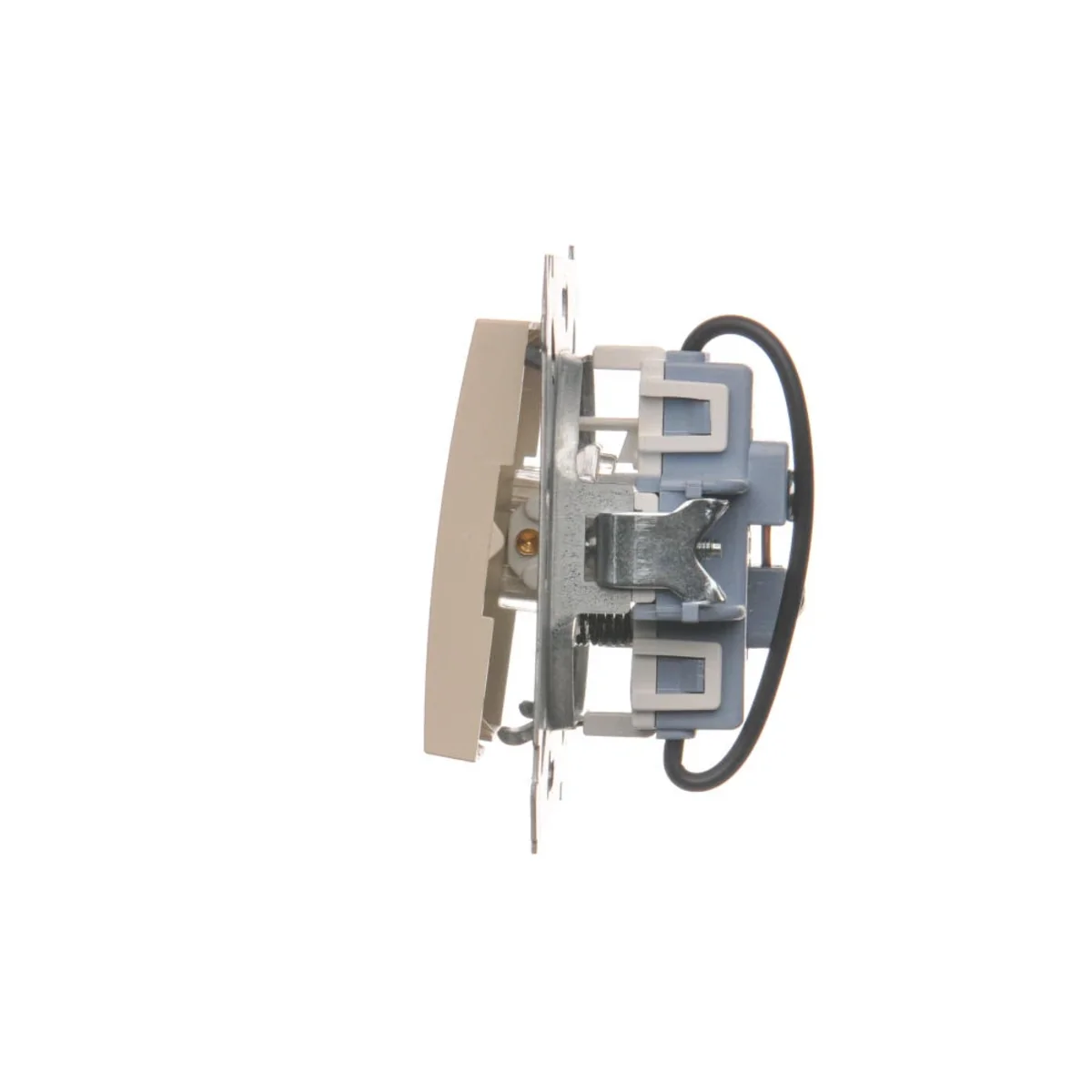

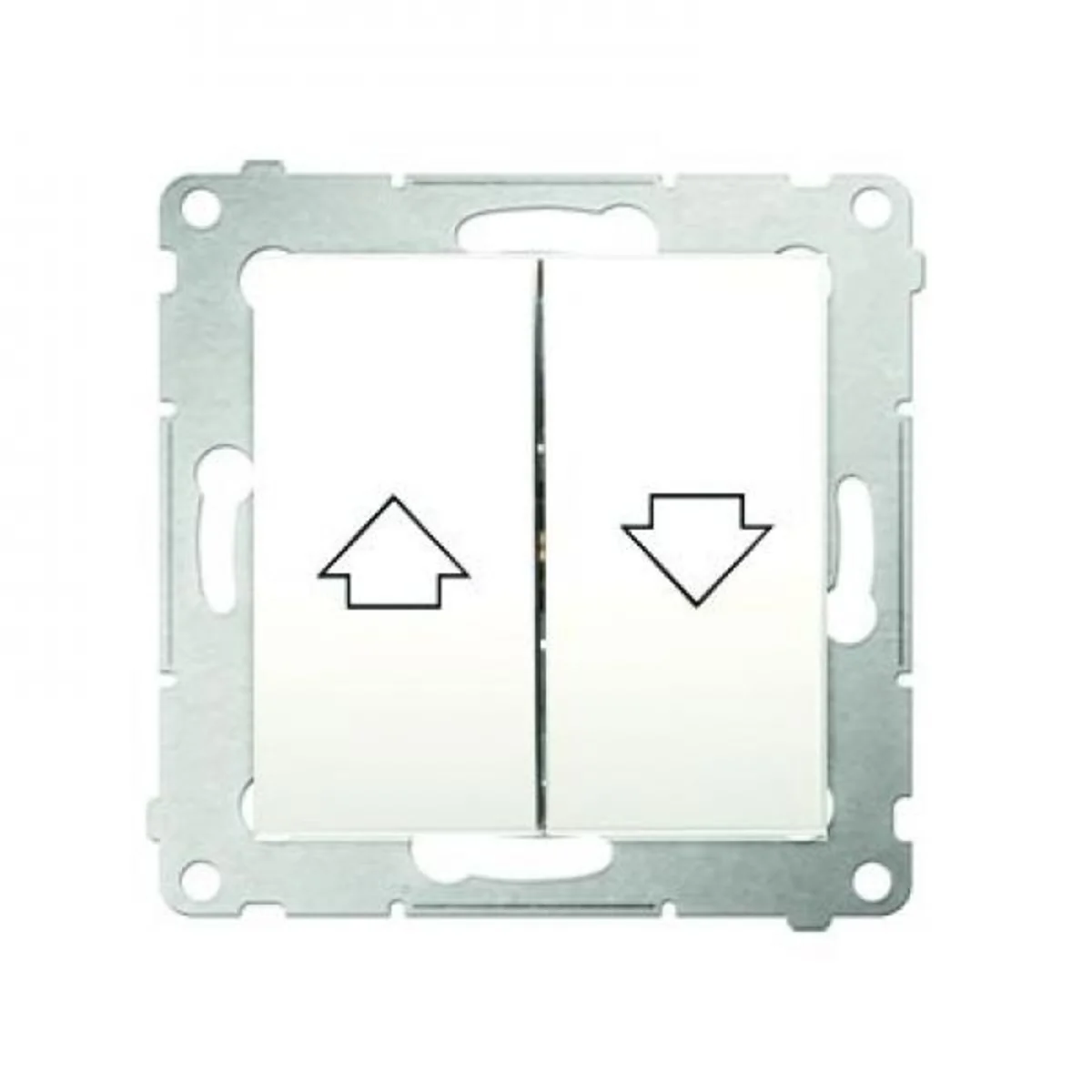

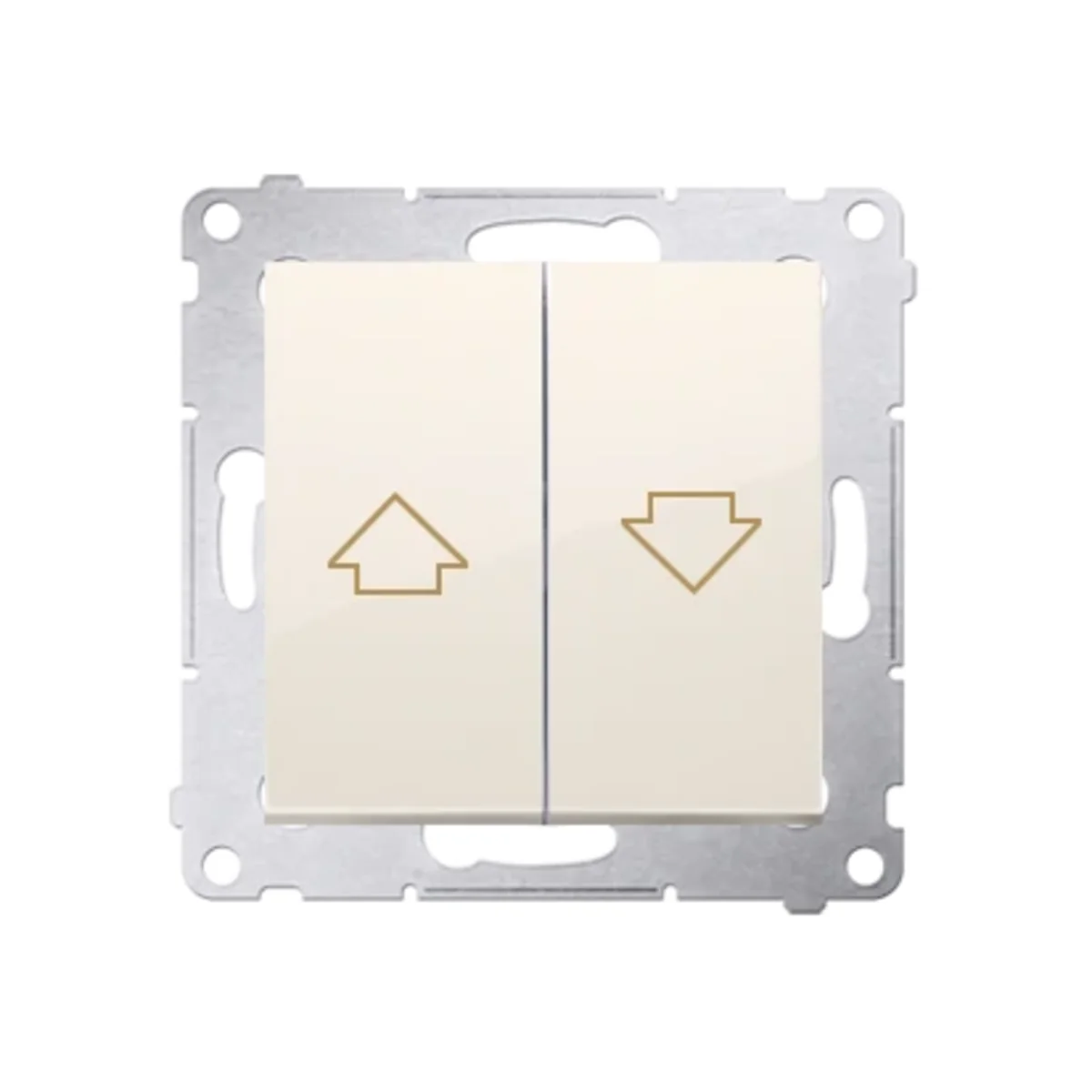

Blind button for controlling the roller shutter from many places (module) 10A 250V cream screw terminals DZP1W.01/41

Name: Blind button for controlling the roller shutter from many places (module) 10A 250V cream screw terminals
Brand: KONTAKT-SIMON
SKU: MMO068KONT
Price: 13.14 PLN

local index:

MMO068KONT

Catalog No:

DZP1W.01/41

EAN code:

5902787823061

Blind button for controlling the roller shutter from many places (module) 10A 250V cream screw terminals

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 45

Number of keys: 2

See full description

Price:

13,14 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Louvre button from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DZP1W.01/41.

FEATURES

To control one roller blind out of many places.
To obtain IP44 splash-proof class, use a frame gasket.
Serial push-button.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The shutter button characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Width [mm]

75
Version

Single
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

33
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

45
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Blinds
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Backlight

NO
Variant

Two-position normally open
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Mechanical controllable

Yes
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,080	0,080	0,892
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,050	0,230
Depth (m)	0,045	0,160	0,100
