B.KWADRAT/S.1 Front plate for loudspeaker socket and miniature connectors, cream gloss 11968982

local index:
MAP121BERK
Catalog No:
11968982
EAN code:
4011334279112
Manufacturer: BERKER
Color: Beige
Shape: Square
Material: Plastic
Price:
4,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

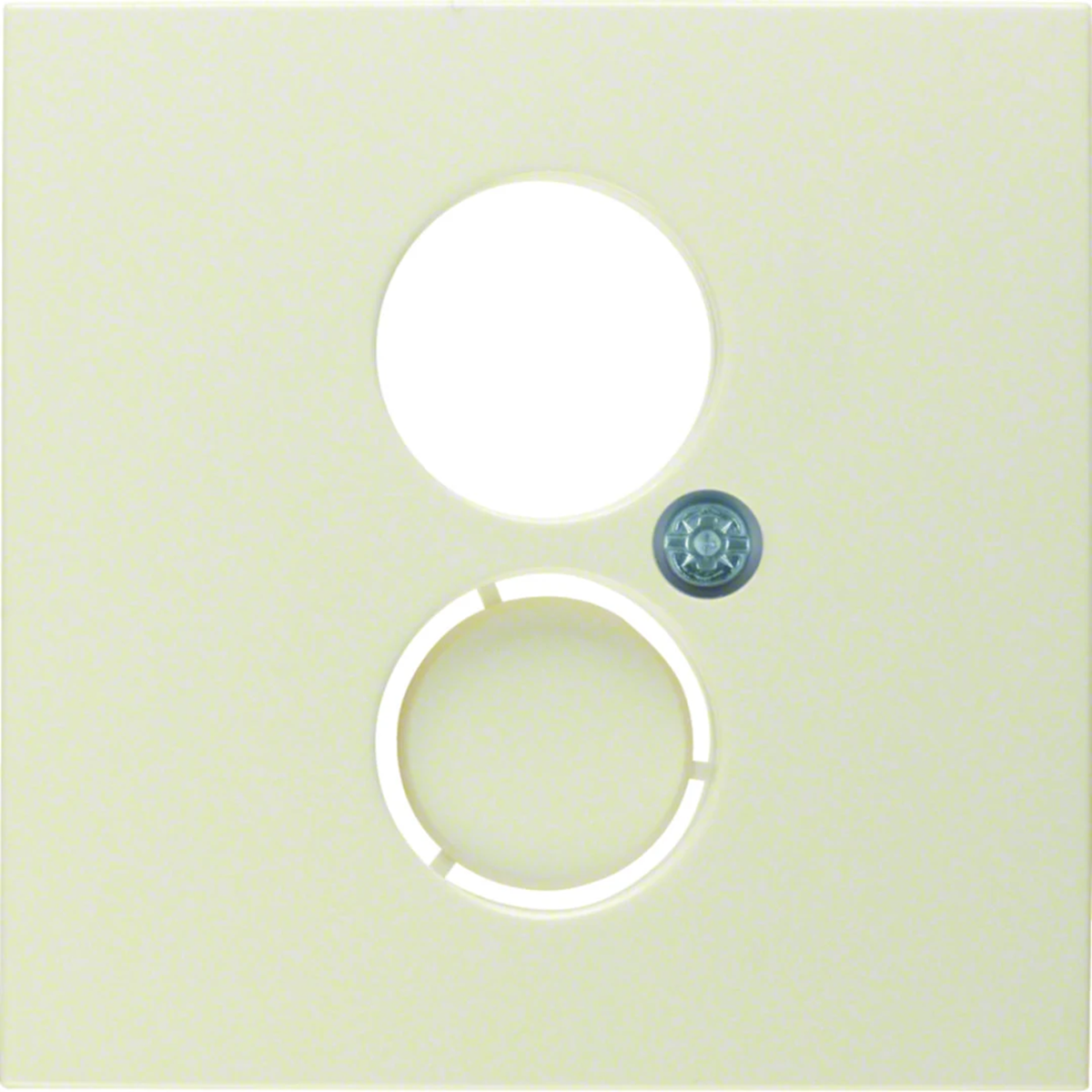

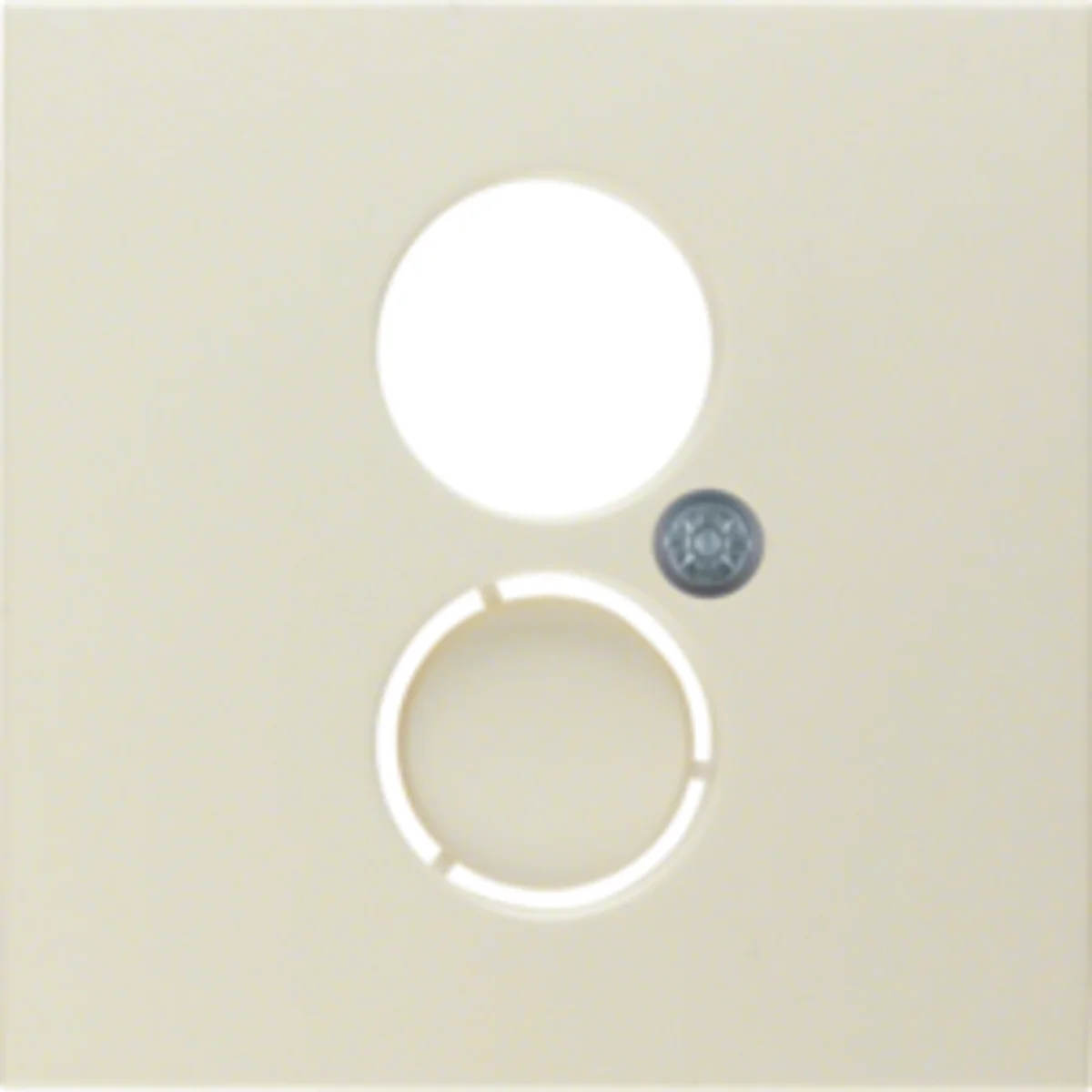

Frontplate for loudspeaker socket and with carrier plate for miniature connectors, Berker B.Kwadrat/S.1 series, with the following features:

  • 1 hole with the possibility of breaking out the end cap,
  • Support plate / support ring: for plasterboard walls,
  • Without inscription field,
  • Mounting type: KNX - Berker R.1 /R.3/Serie 1930/R.classic,
  • Surface color: glossy cream,
  • Main design line: Berker S.1,
  • For products no.: 4450502, 450501.

Technical data

  • Color
    Beige
  • Material
    Plastic
  • Family
    B.SQUARE
  • Surface finish
    Shiny
  • For modular equipment
    Not applicable
  • Shape
    Square
  • Type
    To the speaker jack
  • Level of security
    IP20
  • Accurate color
    Creamy
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    No
  • Luster terminal
    No
  • Device width
    55 mm
  • Device depth
    16 mm
  • Utilization
    Loudspeaker connection
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 300 pcs. 9600 pcs.
Weight (kg) 0,010 0,123 4,102 151,251
Width (m) 0,056 0,080 0,300 0,800
Length (m) 0,016 0,066 0,225 1,050
Depth (m) 0,056 0,125 0,400 1,200
