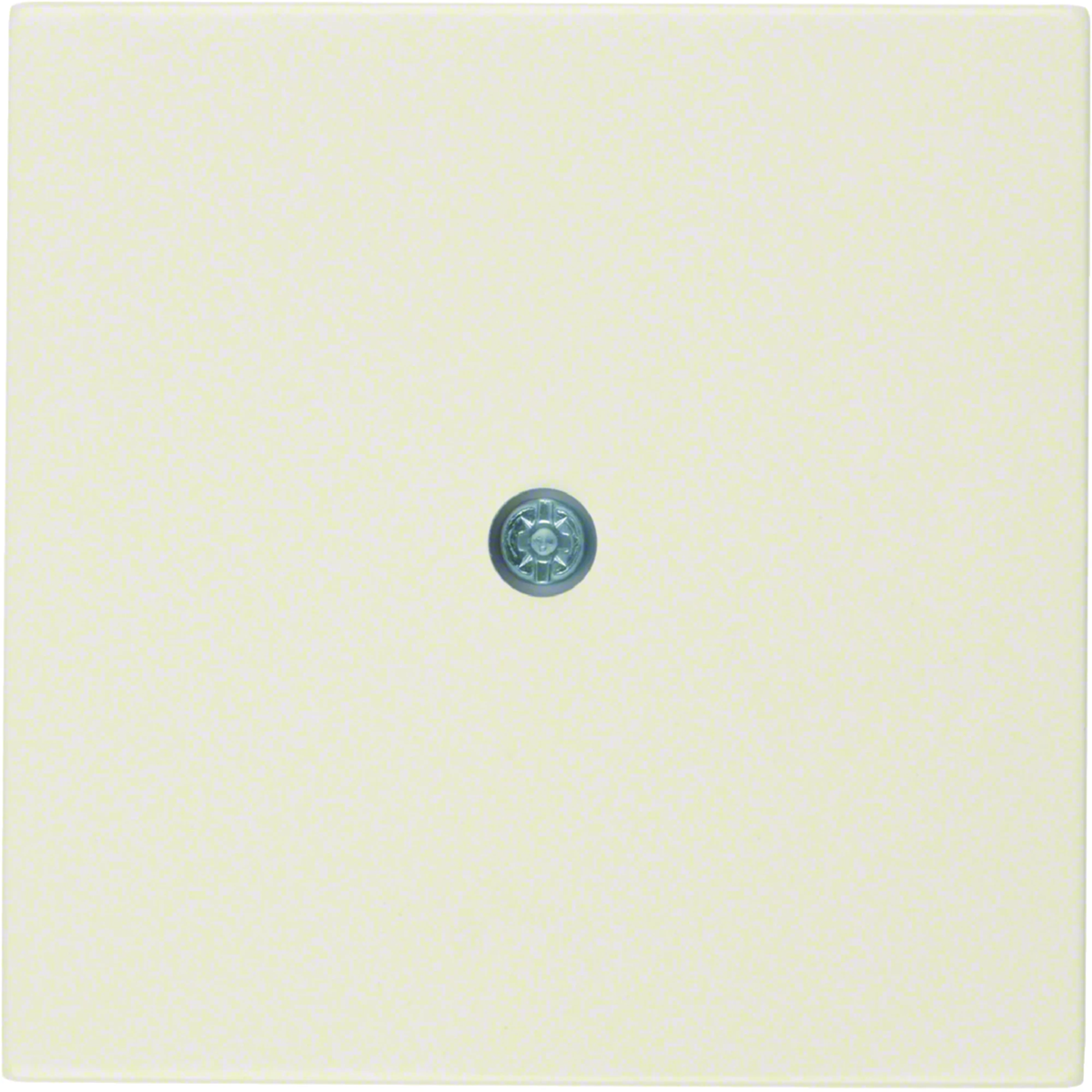

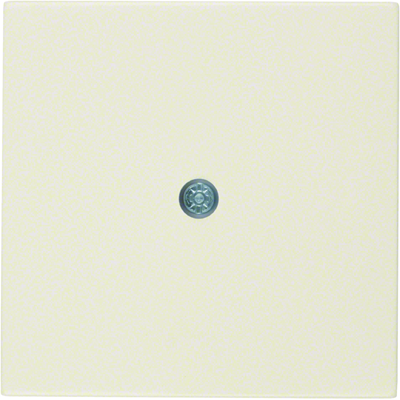

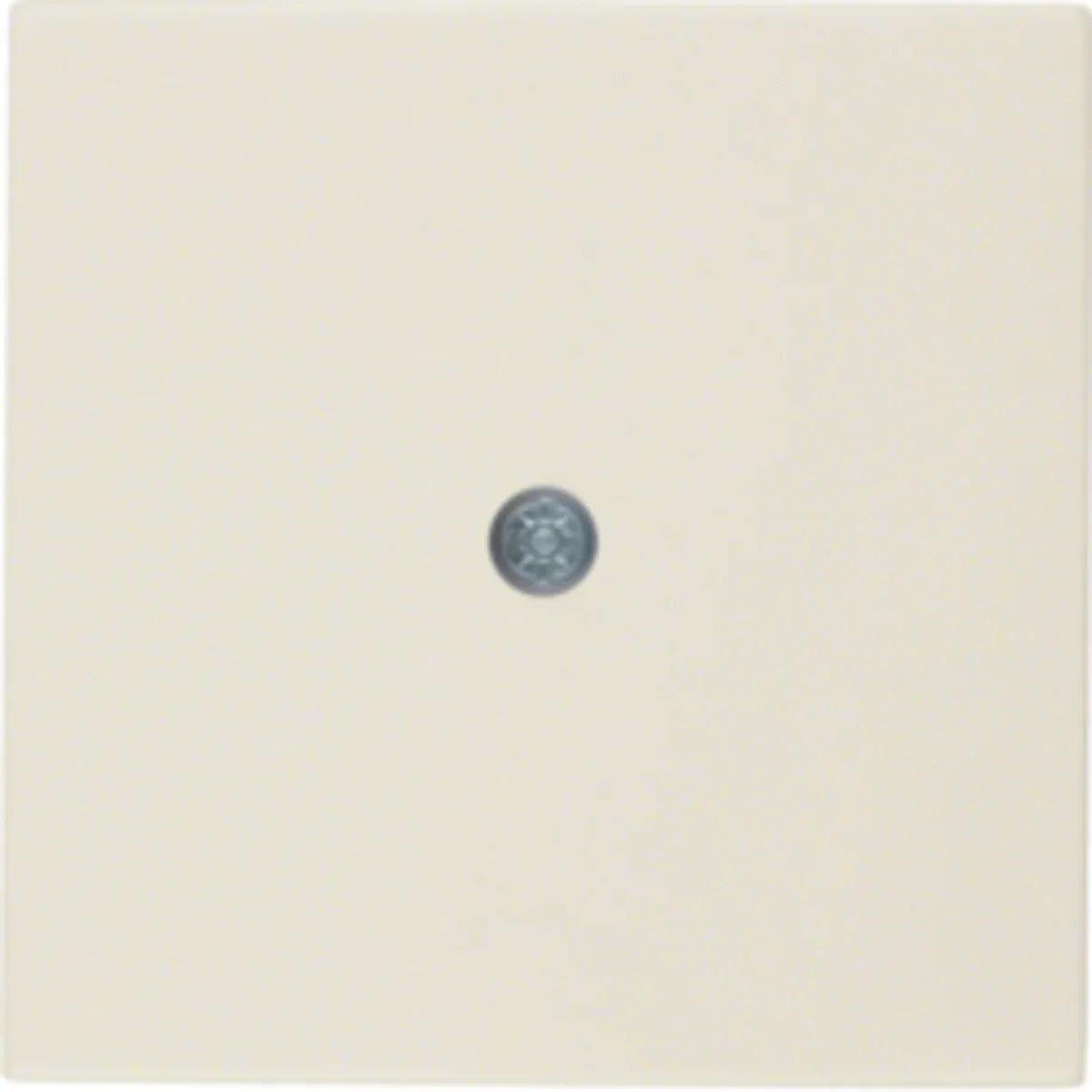

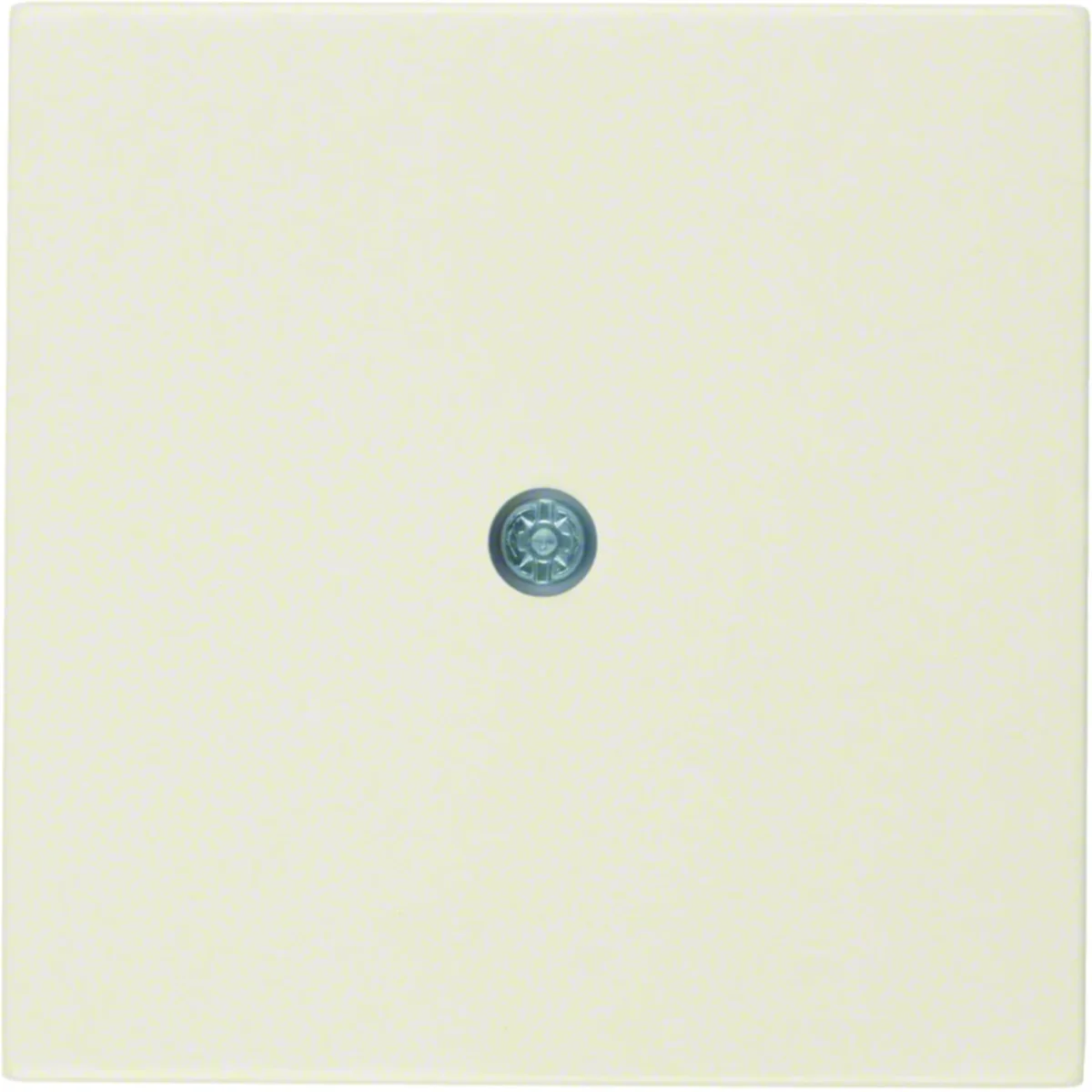

B.KWADRAT/S.1 Front plate for cable connections, cream gloss 10198982

local index:
MAZ019BERK
Catalog No:
10198982
EAN code:
4011334277002
Manufacturer: BERKER
Color: Beige
Material: Plastic
Installation: helical
Price:
5,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Front plate for cable terminals of the B.Kwadrat/S.1 series, with the following features:

  • Mounting type: for fixing with screws,
  • Surface color: glossy cream,
  • Exits: grooved at the bottom.

Technical data

  • Color
    Beige
  • Installation
    helical
  • Level of security
    IP20
  • PKWIU
    27.12.40.0
  • Material
    Plastic
  • Family
    B.SQUARE S.1
  • Accurate color
    Creamy

Other technical data

  • Assembly arrangement
    Central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Cable outlet
  • With dust cover
    No
  • Outlet direction
    Bottom
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    No
  • Luster terminal
    No
  • Device width
    55 mm
  • Device depth
    20 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 200 pcs. 6400 pcs.
Weight (kg) 0,013 0,161 3,649 136,758
Width (m) 0,056 0,077 0,300 0,800
Length (m) 0,020 0,066 0,225 1,050
Depth (m) 0,056 0,177 0,400 1,200
