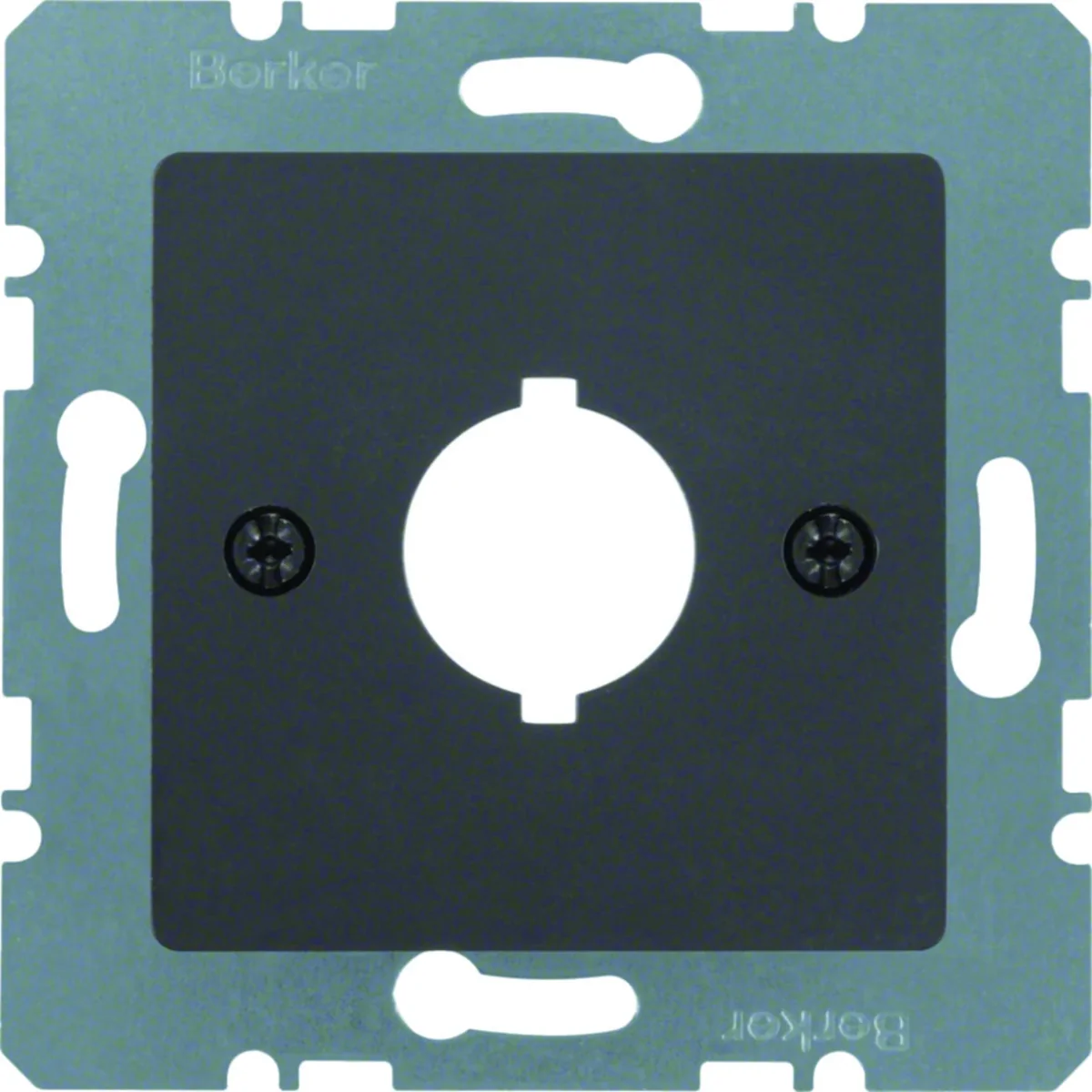

B.KWADRAT/K.1 Central plate with a hole Ø 18.8 mm for answering devices, anthracite matt 14311606

local index:
MAP187BERK
Catalog No:
14311606
EAN code:
4011334298878
Manufacturer: BERKER
Number of holes: 1
Color: Graphite
Shape: Square
Price:
12,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Central platefor answering cameras, series Berker B.Kwadrat/B.3/B.7. The product part number is 14311606.

  • with Ø 18.8 mm
  • for single potential equalization socket

Technical data

  • Number of holes
    1
  • Shape
    Square
  • Type
    To the equipotential socket
  • Surface finish
    matte
  • For modular equipment
    Not applicable
  • Color
    Graphite
  • Material
    Plastic
  • Family
    B.SQUARE
  • Accurate color
    Anthracite
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element with adapter plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Other
  • With dust cover
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    13.9 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 220 pcs. 7040 pcs. 1 pcs.
Weight (kg) 0,329 7,685 265,904 0,030
Width (m) 0,098 0,300 0,800 0,071
Length (m) 0,089 0,225 1,050 0,014
Depth (m) 0,105 0,400 1,200 0,071
