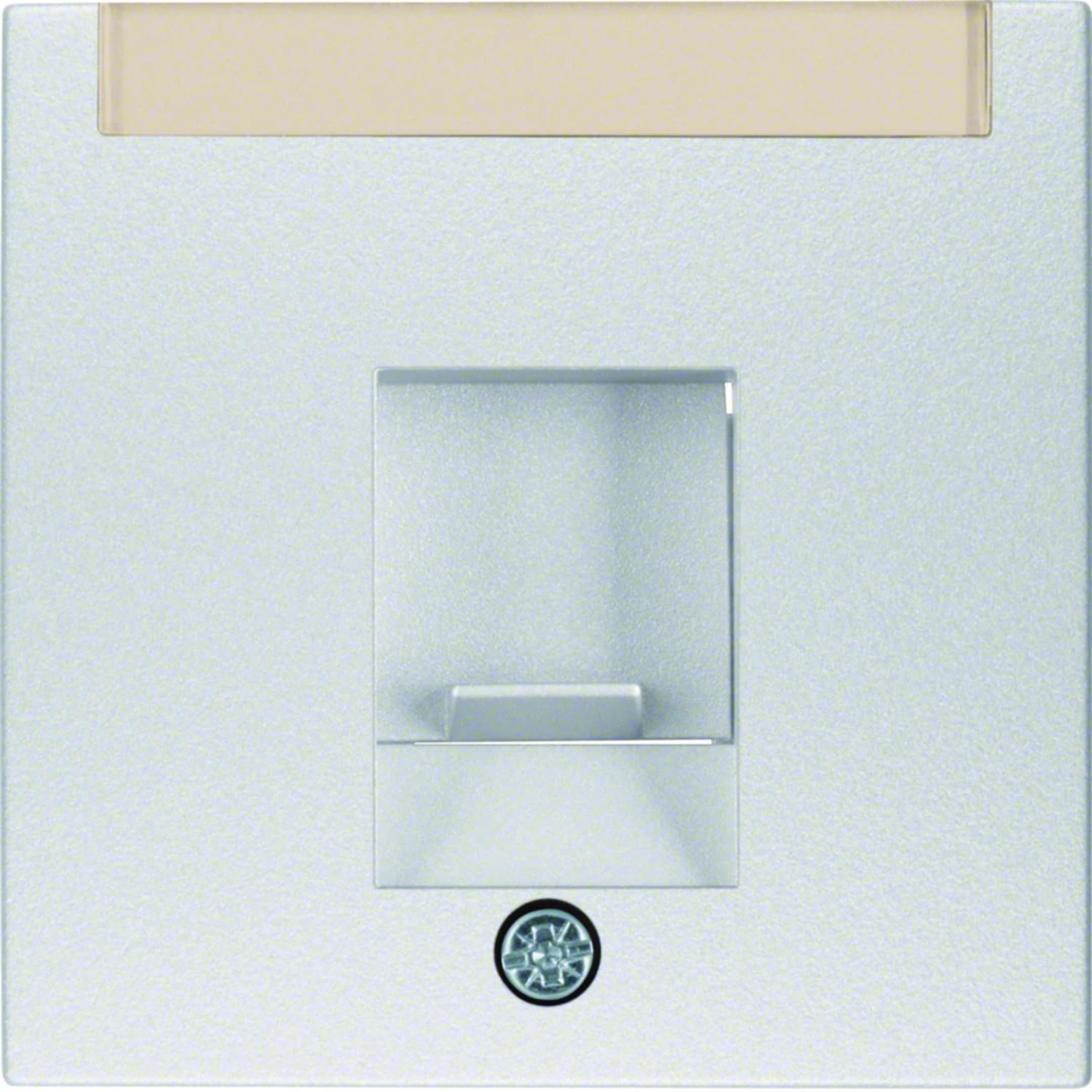

B.KWADRAT/B.3/B.7 Single central element with a dust-protecting latch and an aluminum description field 11701404
local index:
MAP074BERK
Catalog No:
11701404
EAN code:
4011334255642
Price:
16,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single central element with a dust-proof latch and a description field, from the Berker seriesB.Kwadrat/B.3/B.7 :
- to order numbers 4540 0..
- 6 mm high inscription field
- for single carrier plates with colored fixing elements
Technical data
-
ColorSilver
-
MaterialPlastic
-
TypeTo the internet socket To the telephone socket
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
PKWIU27.12.40.0
-
ShapeSquare
-
Descriptive fieldYes
-
FamilyB.SQUARE
-
Surface finishmatte
-
For modular equipmentNot applicable
Other technical data
-
Assembly arrangementCentral cover plate
-
Support ringNo
-
With hinged lidNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourAluminium
-
TransparentNo
-
Number of modules (module system)1
-
Suitable for number of connectors1
-
Luster terminalNo
-
Device width55 mm
-
Device depth9 mm
-
UtilizationModular Jack
-
With dust coverYes
-
Imprintable labelWith indication plate
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
Type of fasteningMounting with screw
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height55 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 300 pcs. | 9600 pcs. |
| Weight (kg) | 0,010 | 0,123 | 4,102 | 151,251 |
| Width (m) | 0,056 | 0,080 | 0,300 | 0,800 |
| Length (m) | 0,009 | 0,066 | 0,225 | 1,050 |
| Depth (m) | 0,056 | 0,125 | 0,400 | 1,200 |
