B.KWADRAT/B.3/B.7 Shutter time switch with display, matt aluminum 85741183
local index:
MWL012BERK
Catalog No:
85741183
EAN code:
4011334375074
Price:
218,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

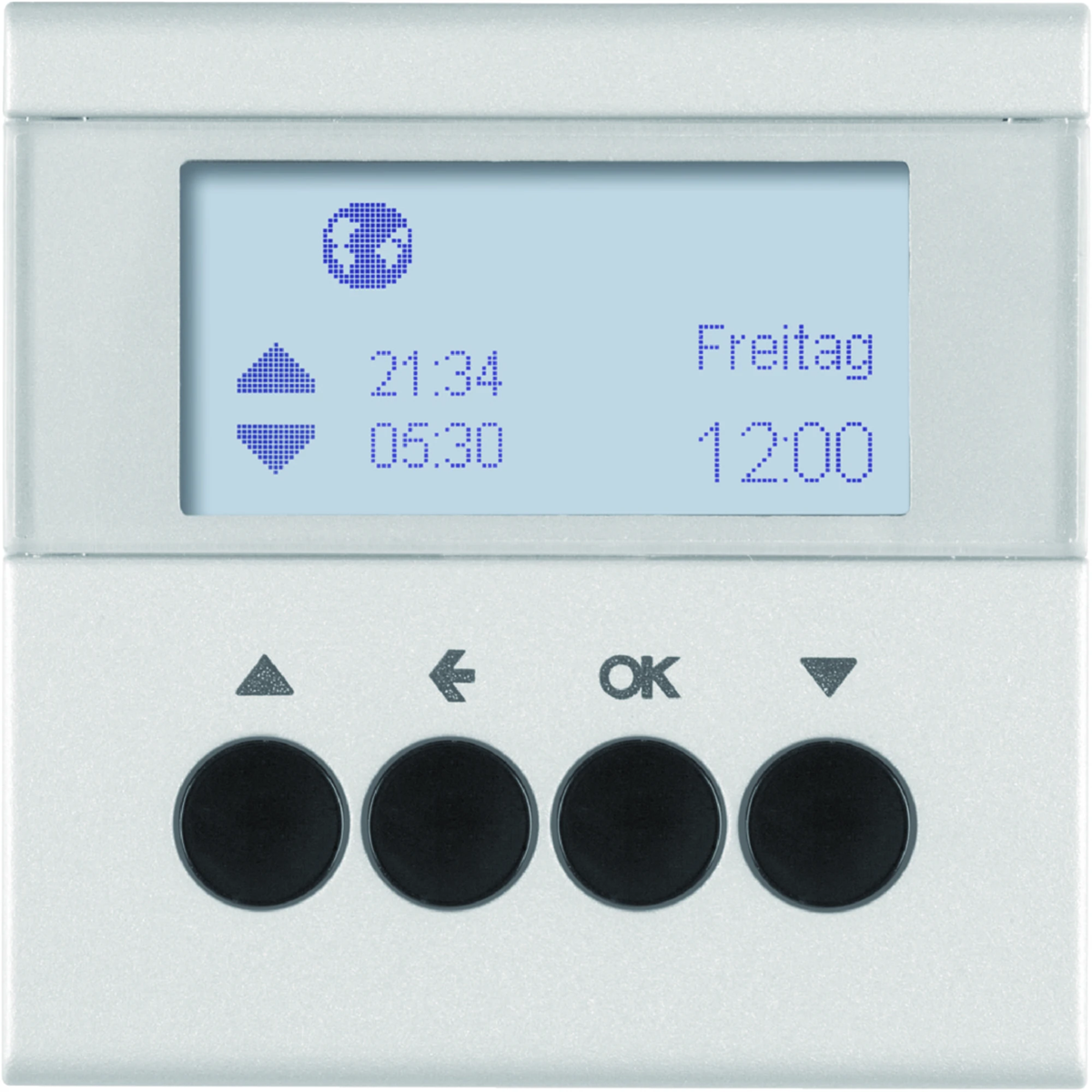

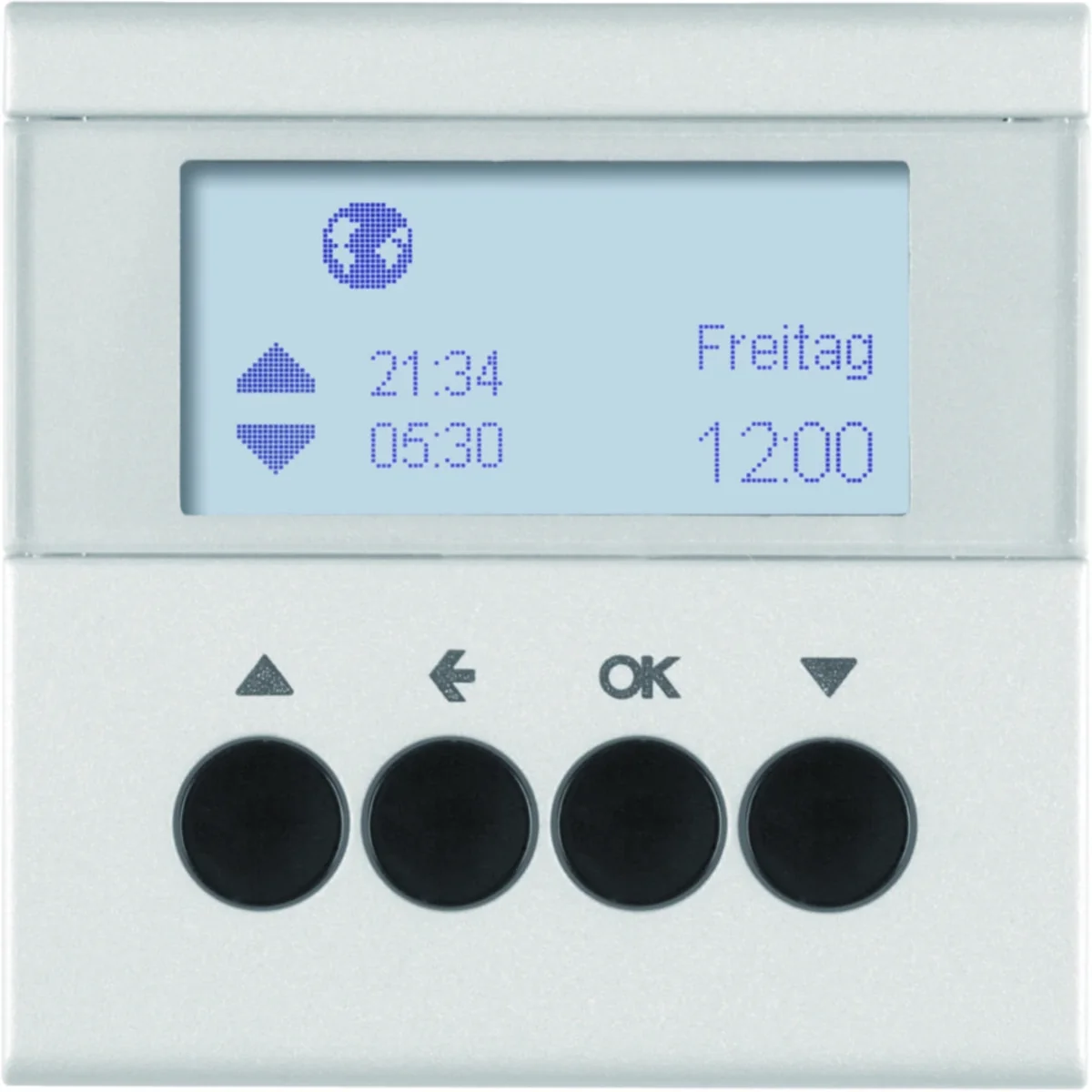

Louver time switch with display, Berker B.Kwadrat/B.3/B.7 series.
Features:
- reset function (factory settings)
- with button lock
- party function, automatic commands, radio commands and extension commands are not executed (lock)
- manual/automatic switchover
Controls and indicators:
- LCD display illuminated during operation
- indication of cap/mechanism compatibility on the display
- adjustable LCD contrast
Settings:
- with automatic winter/summer time changeover (can be disconnected)
- astronomical program for sunrise/sunset switching sun with the possibility of entering the city/country and individual adjustment
- holiday program causing random selection of travel times in automatic mode
Technical data
-
Switching time [s]< 0.6s
-
Rated voltage [V]12
-
Operating temperature range [°C]from -5 to 45
-
Power reserve [h]24
-
PKWIU26.52.24.0
-
MaterialPlastic Metal
-
FamilyB.SQUARE B.3 B.7
-
Minimum slat adjustment time [ms]250
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
Other technical data
-
Assembly arrangementControl end-piece
-
With brightness sensor connectionNo
-
Suitable for rain sensorYes
-
With Astro programNo
-
With memory functionYes
-
Random generatorYes
-
Mounting methodOther
-
Material qualityOther
-
Surface protectionLacquered
-
ColourAluminium
-
TransparentNo
-
Max. switching power0 W
-
Nominal voltage12 V
-
Type of fasteningClamp mounting
-
Integrated timerYes
-
Suitable for wind sensorYes
-
With glass breaking detector connectionNo
-
Substation inputYes
-
Twilight value adjustable0 ... 0 lx
-
Switch-off protectionNo
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
Suitable for degree of protection (IP)IP20
-
Autonomy24 h
-
Frequency0 ... 0 Hz
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,092 | 3,577 | 134,454 |
| Width (m) | 0,084 | 0,300 | 0,800 |
| Length (m) | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,085 | 0,400 | 1,200 |
