Manufacturer: BERKER
Depth [mm]: 41.6
Number of keys: 2
Shape: Square
Price:
7,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

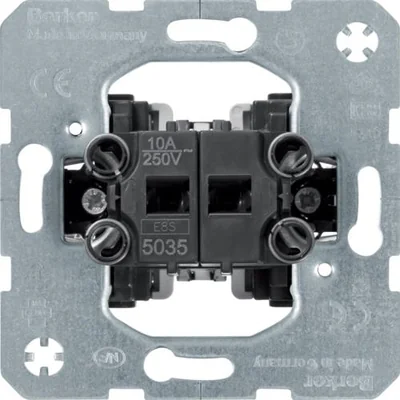

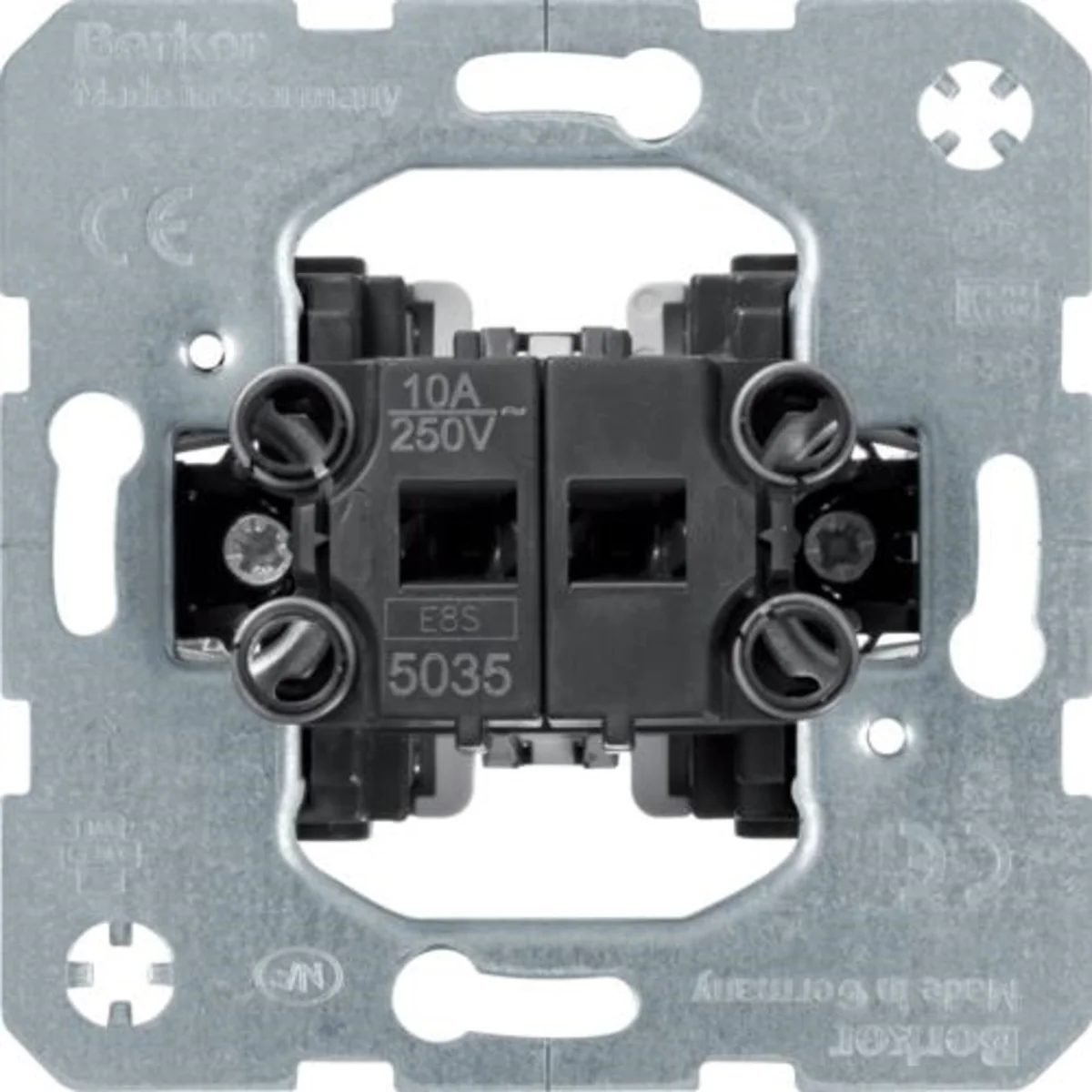

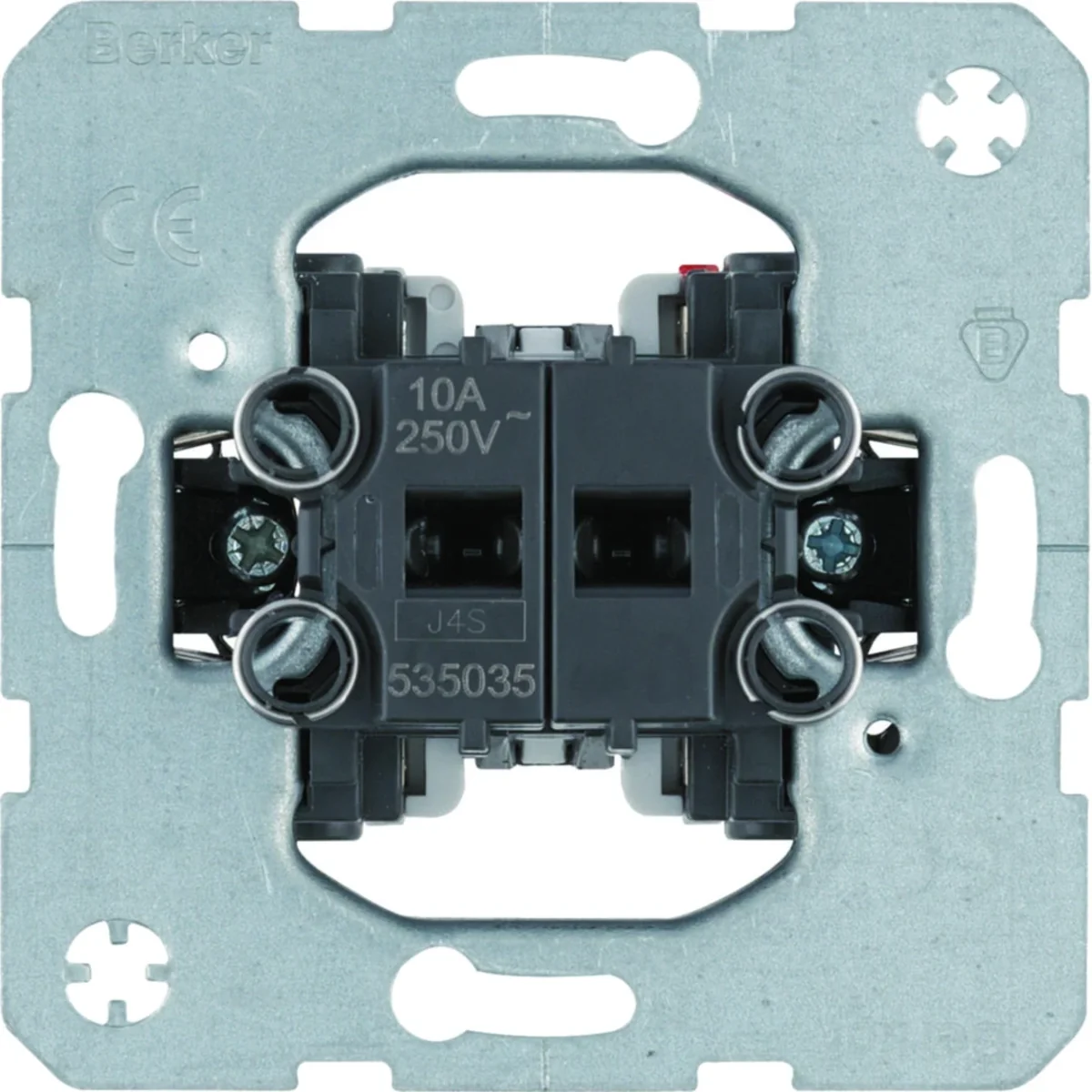

Mechanism of a 2-gang button switch from the one.platform series, from Berker . Product part number is 535035.

  • 2 NO contacts.
  • Lightable with glow plug, incandescent and LED with neutral terminal .
  • For backlighting.
  • With self-clamps.

Technical data

  • Depth [mm]
    41.6
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Height [mm]
    70.8
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of keys
    2
  • Material
    Plastic Metal
  • Rated current [A]
    10
  • Family
    ONE.PLATFORM
  • Width [mm]
    70.8
  • Version
    Confident
  • Backlight
    Yes
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Number of rockers
    2
  • Nominal voltage
    250 V
  • With signal lamp
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Label space/information surface
    No
  • Device width
    70.8 mm
  • Device depth
    41.6 mm
  • Model
    Series push button
  • Number of modules (module system)
    0
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    70.8 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,060 0,690 3,895 144,649
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
