BIS Shutter switch with white backlight ŁN-7BS/00
local index:
MNO007OSPE
Catalog No:
ŁN-7BS/00
EAN code:
5907577425753
Price:
7,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

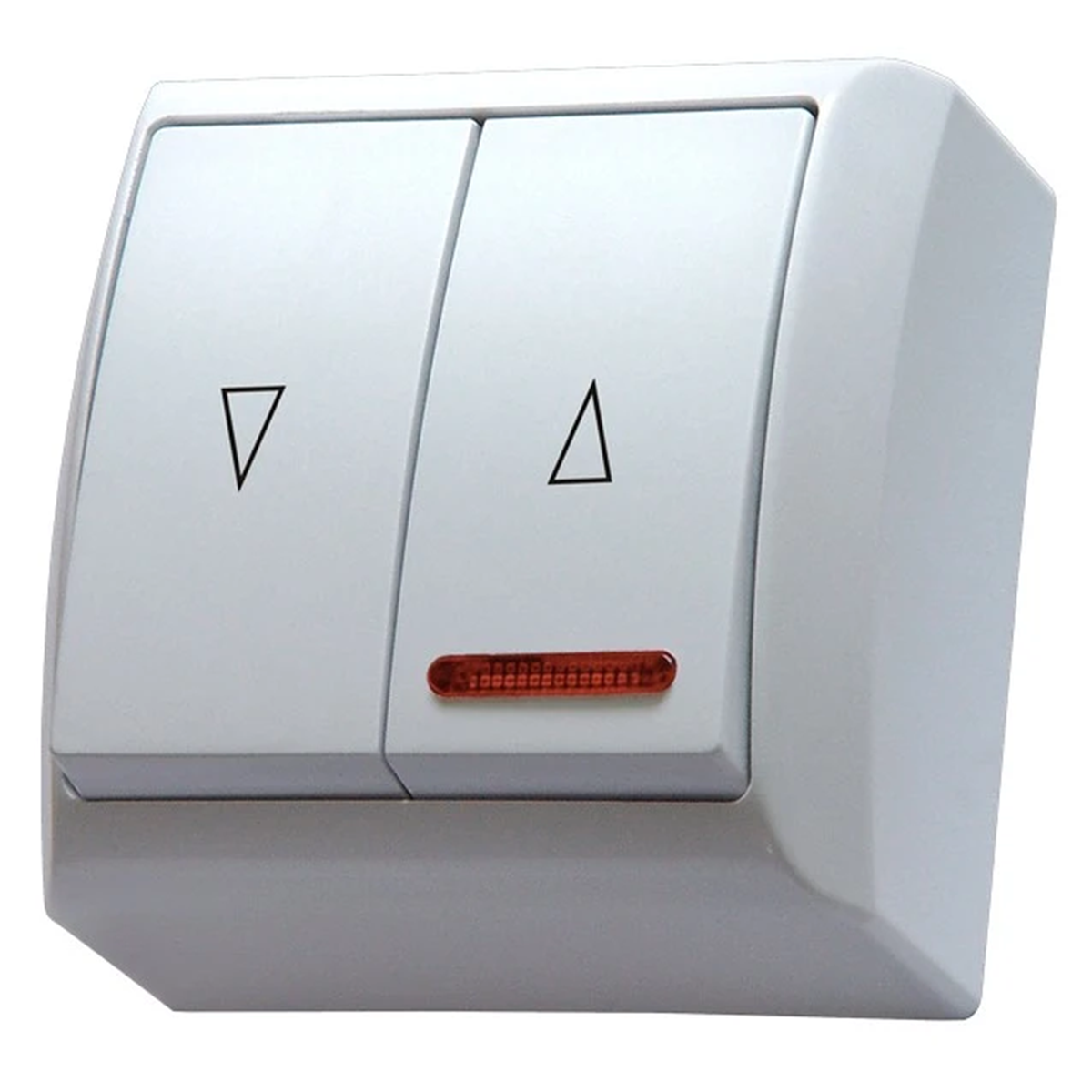

Surface-mounted shutter switch from the Bis series, from Ospel. The product catalog number is ŁN-7BS/00.
- With backlight.
Technical data
-

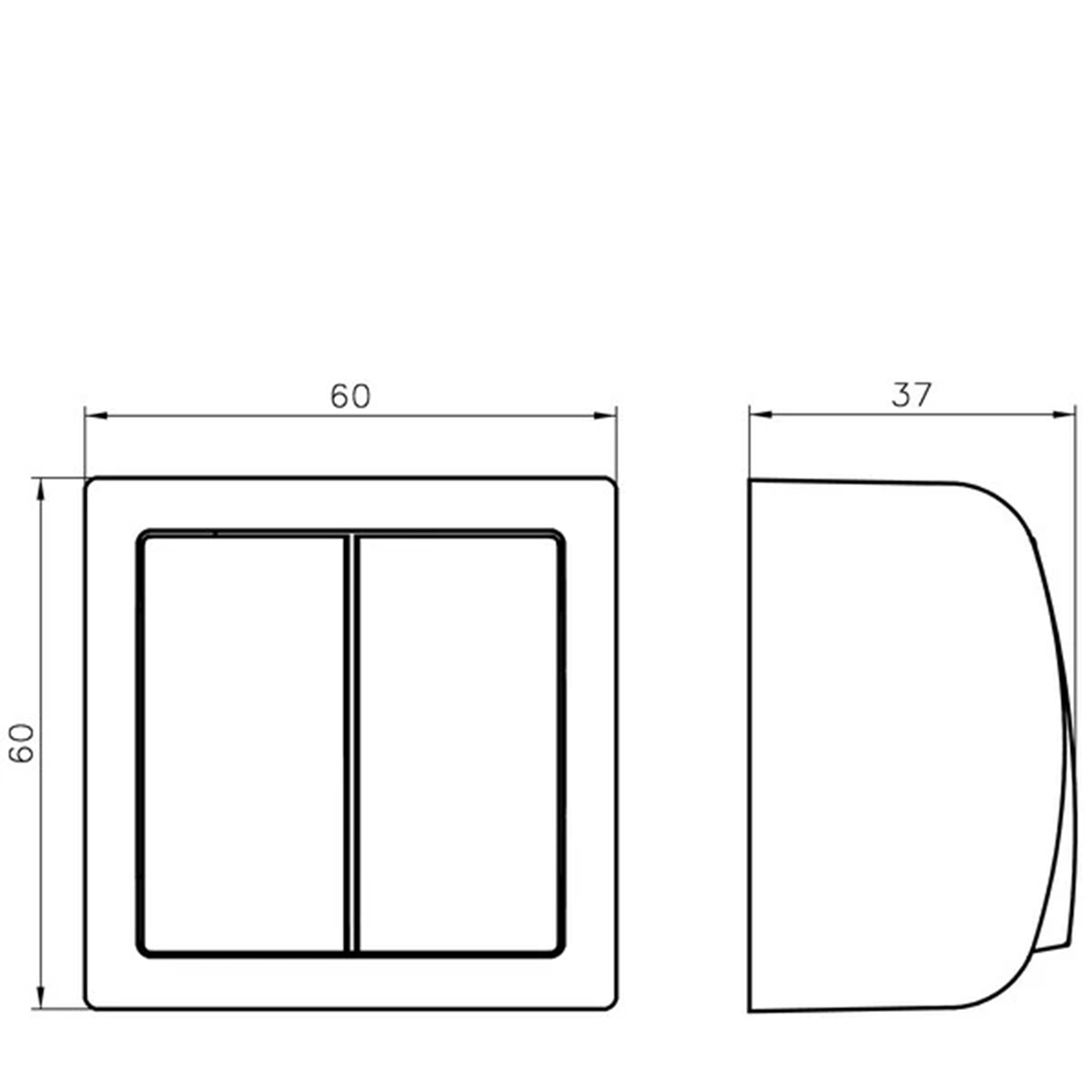

Depth [mm]37
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeSurface-mounted
-
Height [mm]60
-
BacklightYes
-
VariantTwo-position
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingscrews
-
Rated current [A]10
-
FamilyBIS
-
Width [mm]60
-
VersionSingle
-
Surface protectionNatural
-
Terminal typeThreadless
-
For the frame systemNO
-
Backlight colorOrange
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodSurface mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9003
-
Label space/information surfaceYes
-
Rated current10 A
-
Number of buttons2
-
ModelOther
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourWhite
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)0
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,060 | - |
| Width (m) | - | 0,162 |
| Length (m) | - | 0,237 |
| Depth (m) | - | 0,090 |
