BIS Normally open switch "light" white ŁN-5BS/00

local index:
MNZ022OSPE
Catalog No:
ŁN-5BS/00
EAN code:
5907577425739
Manufacturer: OSPEL
Depth [mm]: 37
Number of keys: 1
Color: White
Price:
5,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

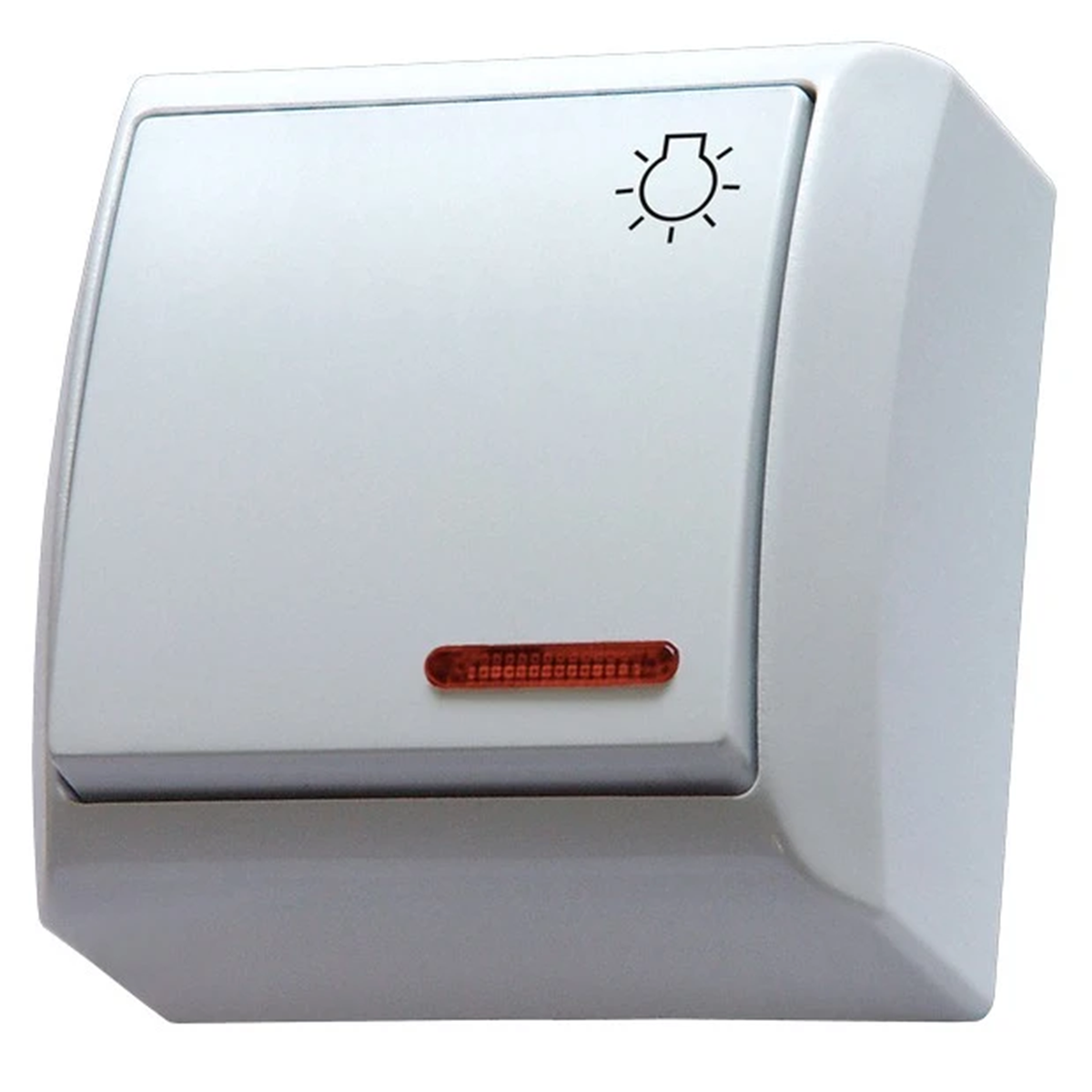

Closing switch "light" surface-mounted of the Bis series, from the manufacturer Ospel. The product catalog number is ŁN-5BS/00.

  • With backlight.

Technical data

  • Depth [mm]
    37
  • Color
    White
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    BIS

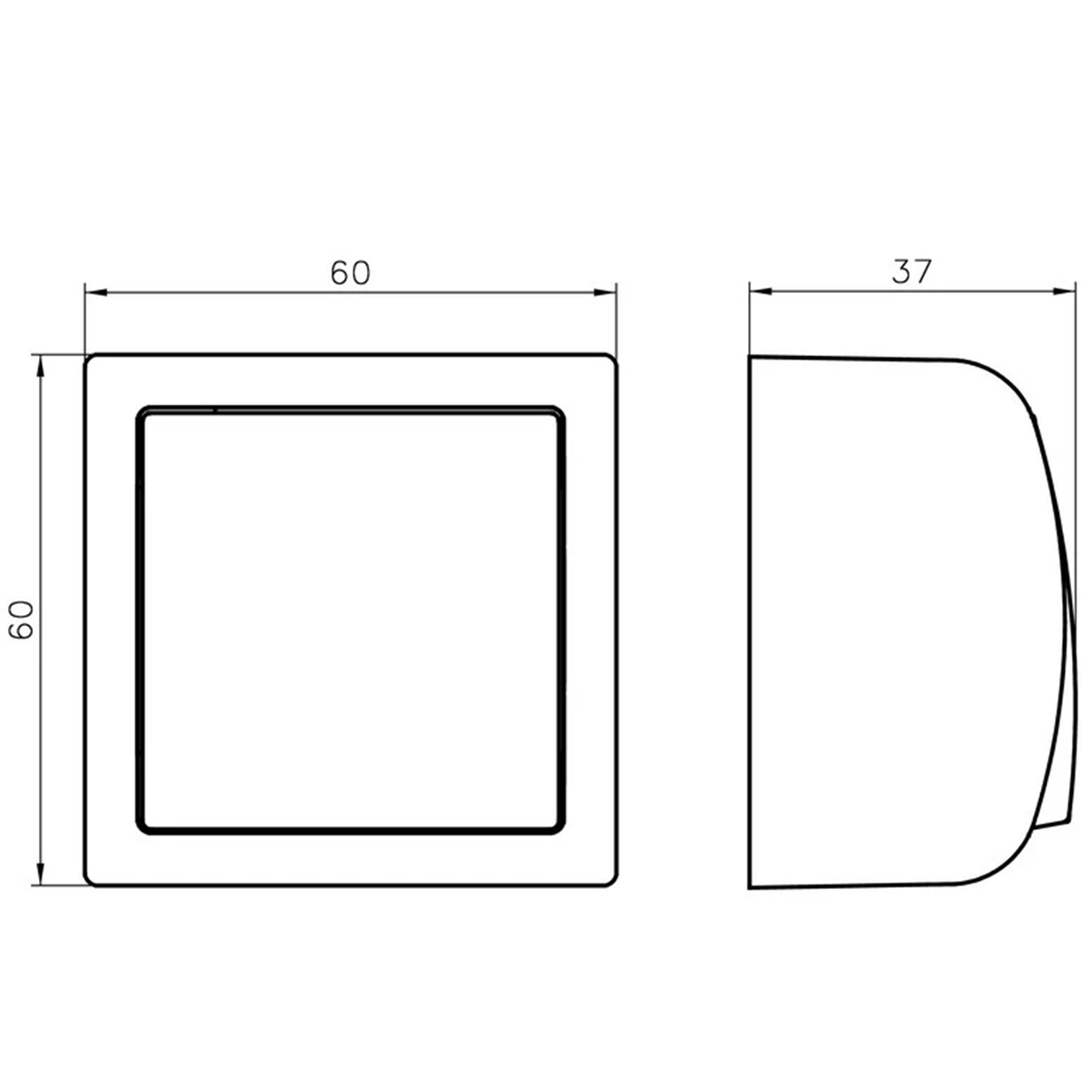

  • Width [mm]
    60
  • Version
    Confident
  • Surface protection
    Natural
  • Terminal type
    Threadless
  • For the frame system
    NO
  • Backlight type
    LTS lamp
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Surface-mounted
  • Height [mm]
    60
  • Backlight
    Yes
  • Variant
    Light
  • Exact material
    Plastic Metal
  • Backlight color
    Orange

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    60 mm
  • Device depth
    37 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    yes
  • Mounting method
    Surface mounted
  • With mounting plate
    no
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    60 mm
  • Built-in depth
    0 mm
