BERKER TS Glass top plate, 8-gang transparent 1388

local index:
MAP145BERK
Catalog No:
1388
EAN code:
4011334253747
Manufacturer: BERKER
Depth [mm]: 5
Number of holes: 8
Color: Transparent
Price:
405,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

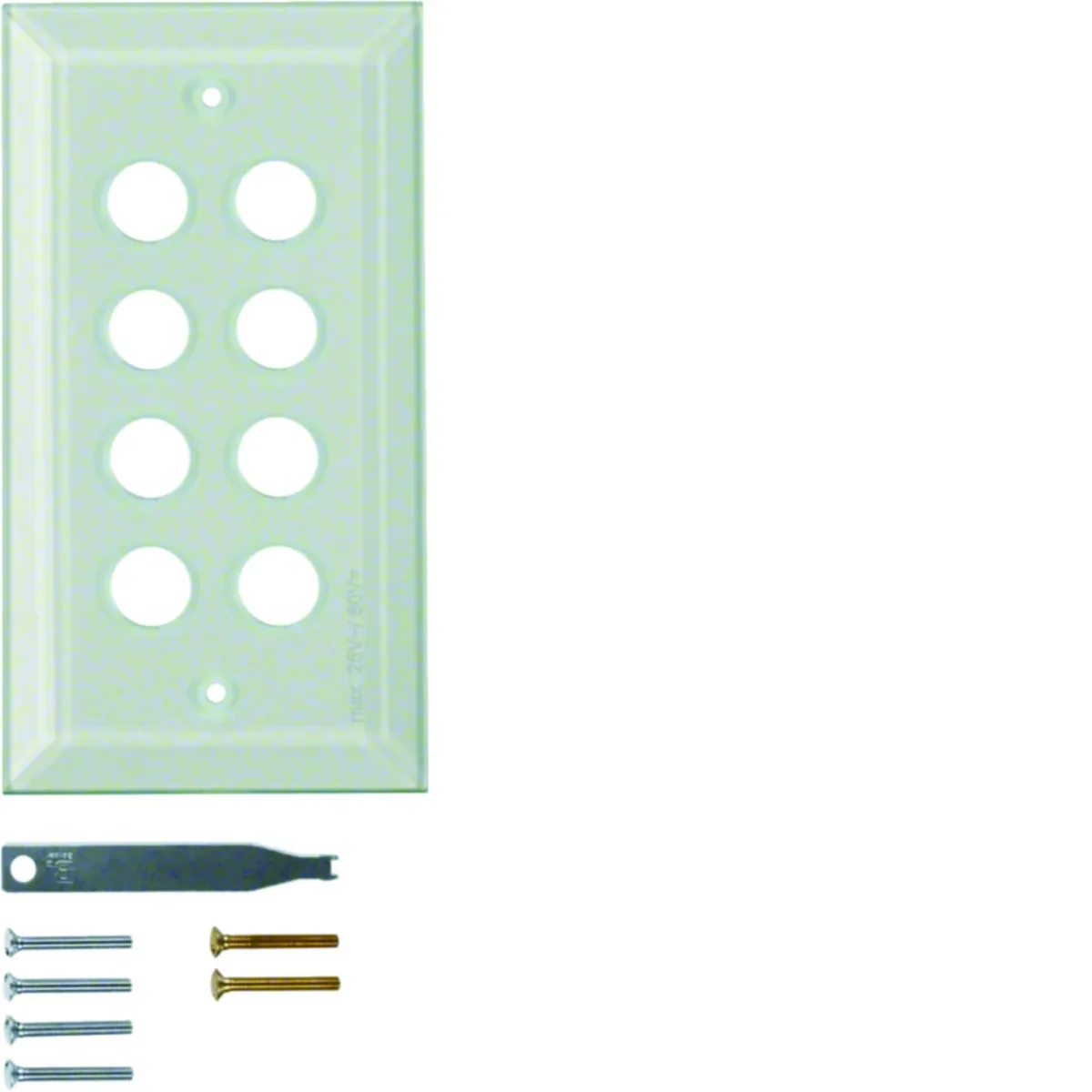

Glass plate decorative 8-fold with bevelled edges from the Berker TS series. The product part number is 1388.

  • Clamp mount.
  • With screwdriver.
  • 2 x pan head screws M3.5 x 25 mm in chrome, gold and stainless steel as protection against disassembly.
  • Shock resistance: IK02.



Characteristics of the series:

Berker TS is not only unusual design. In this program you can also use intelligent control systems: KNX, Berker.Net and tebis TX. The choice of colors and materials gives you full freedom of creativity in arranging rooms.

Technical data

  • Depth [mm]
    5
  • Color
    Transparent
  • Material
    Glass
  • Family
    BERKER TS
  • Height [mm]
    160
  • Accurate color
    Bright
  • For modular equipment
    Not applicable
  • Number of holes
    8
  • Shape
    Rectangular
  • Type
    To the button
  • Width [mm]
    86
  • Surface finish
    Shiny
  • Screw length [mm]
    25
  • PKWIU
    23.19.26.0

Other technical data

  • Number of units
    8
  • Number of units horizontal
    8
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    8
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Glass
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With hinged lid
    No
  • Impact strength
    IK02
  • Width
    86 mm
  • Depth
    5 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    8
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    160 mm
  • Diameter bore hole (opening)
    16.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 72 pcs. 2304 pcs.
Weight (kg) 0,165 0,185 13,760 465,320
Width (m) 0,160 0,092 0,300 0,800
Length (m) 0,005 0,012 0,225 1,050
Depth (m) 0,086 0,172 0,400 1,200
