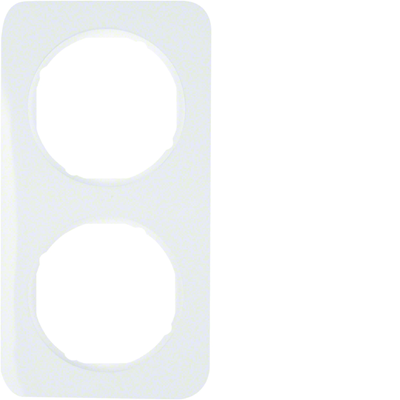

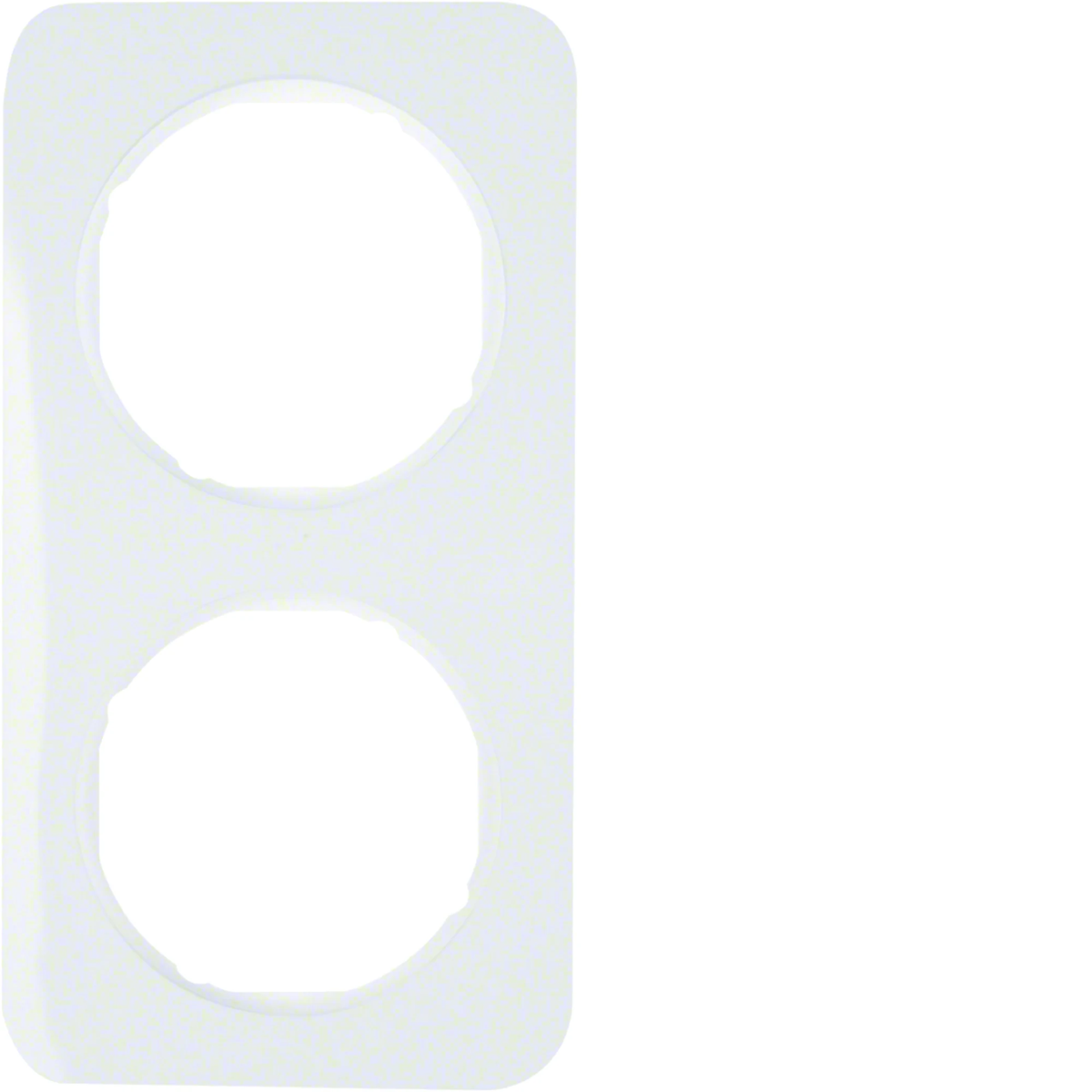

Berker R.1 2-fold white gloss frame 10122189
local index:
MAR091BERK
Catalog No:
10122189
EAN code:
4011334392668
Price:
8,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double framefrom the R.1 series, from Berker. Product part number is 10122189.
- IP44 protection when used with gasket kit order no. 1010 76 00 or 1011 77 00.
Technical data
-
Depth [mm]9.9
-
ColorWhite
-
MaterialPlastic
-
FamilyR.1
-
Width [mm]80.7
-
Surface protectionNatural
-
Accurate colorSnow white
-
For modular equipmentNot applicable
-
PKWIU27.12.40.0
-
Number of modules2
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]151.7
-
Surface finishShiny
-
Mounting directionUniversal
-
The shape of the matching accessoryRound
Other technical data
-
Number of units2
-
Number of units horizontal2
-
Number of modules horizontal (module system)0
-
Liczba łączników2
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
With hinged lidNo
-
Impact strengthIK05
-
Width80.7 mm
-
Depth9.9 mm
-
Built-in height0 mm
-
Mounting directionHorizontal and vertical
-
Number of units vertical2
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height151.7 mm
-
Built-in width0 mm
-
Diameter bore hole (opening)52 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 2 pcs. | 120 pcs. | 3840 pcs. |
| Weight (kg) | 0,031 | 0,085 | 5,510 | 201,320 |
| Width (m) | 0,152 | 0,095 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,025 | 0,225 | 1,050 |
| Depth (m) | 0,081 | 0,165 | 0,400 | 1,200 |
