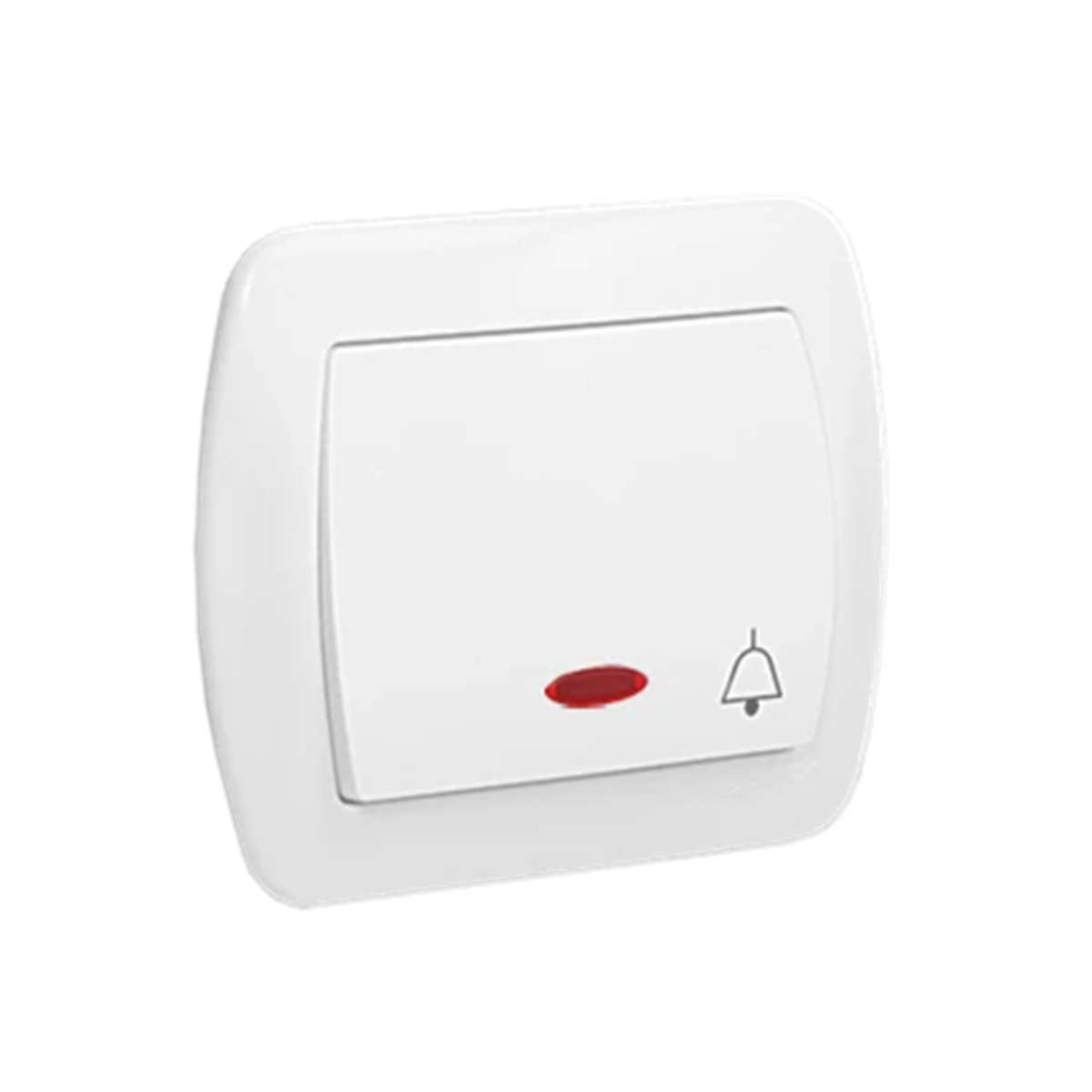

Bell button with backlight 10A 250V white screw terminals AD1L/11

local index:
MMZ093KONT
Catalog No:
AD1L/11
EAN code:
5902787569174
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 1
Price:
5,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

"bell button" with backlight,  Simon Akord series, from the manufacturer Contact Simon. The product catalog number is AD1L/11. In white.



FEATURES

  • “bell” on the key.
  • Built-in, orienting backlight, orange lamp.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon CHORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    90
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Backlight type
    Orientation Smoldering lamp
  • PKWIU
    27.33.11.0
  • Depth [mm]
    37.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    CHORD
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24.5
  • Variant
    Bell
  • Exact material
    PC
  • Backlight color
    Orange

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,056 0,056 0,652
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
