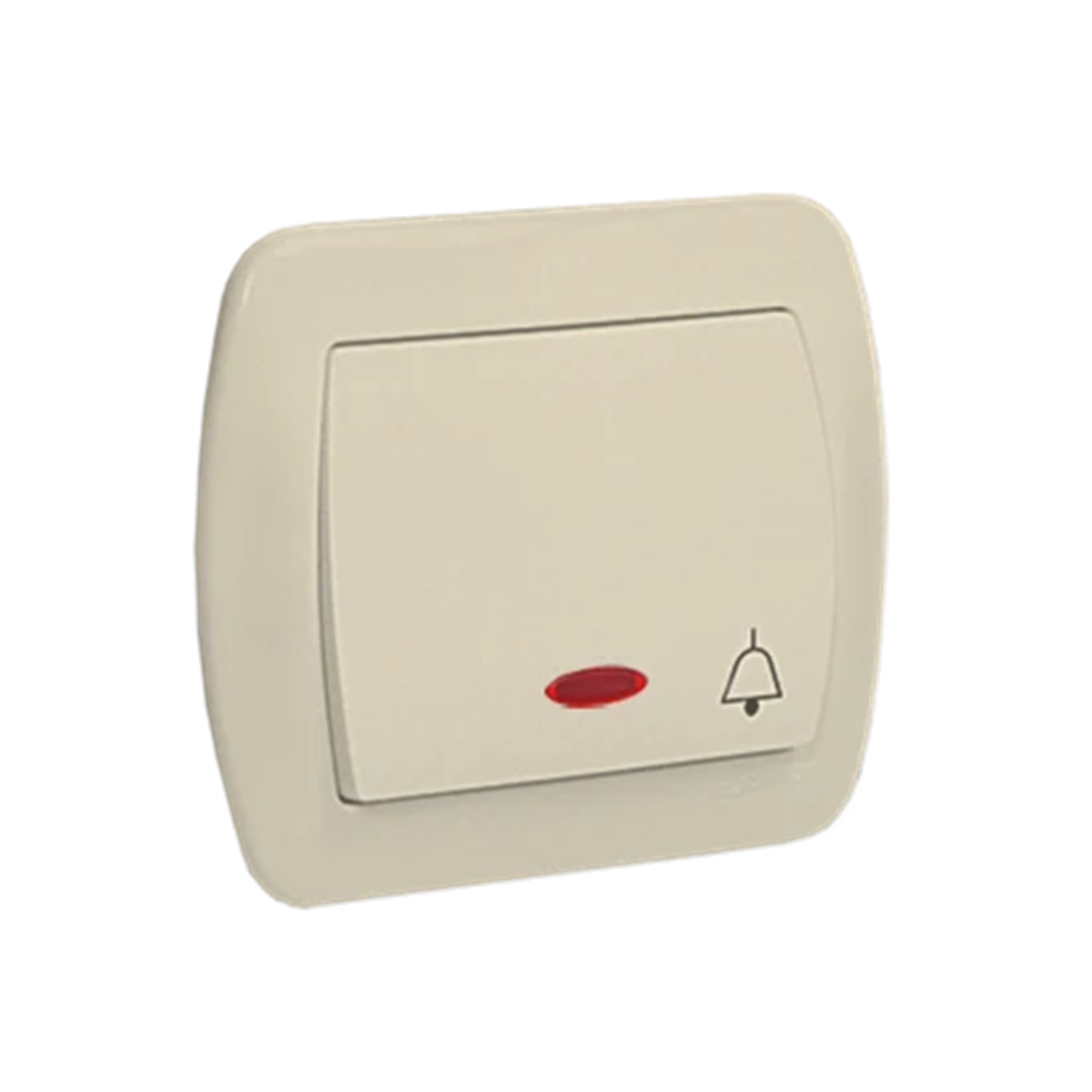

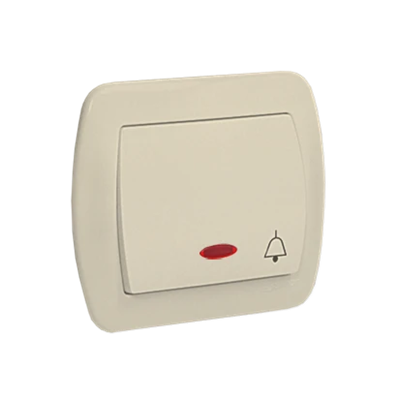

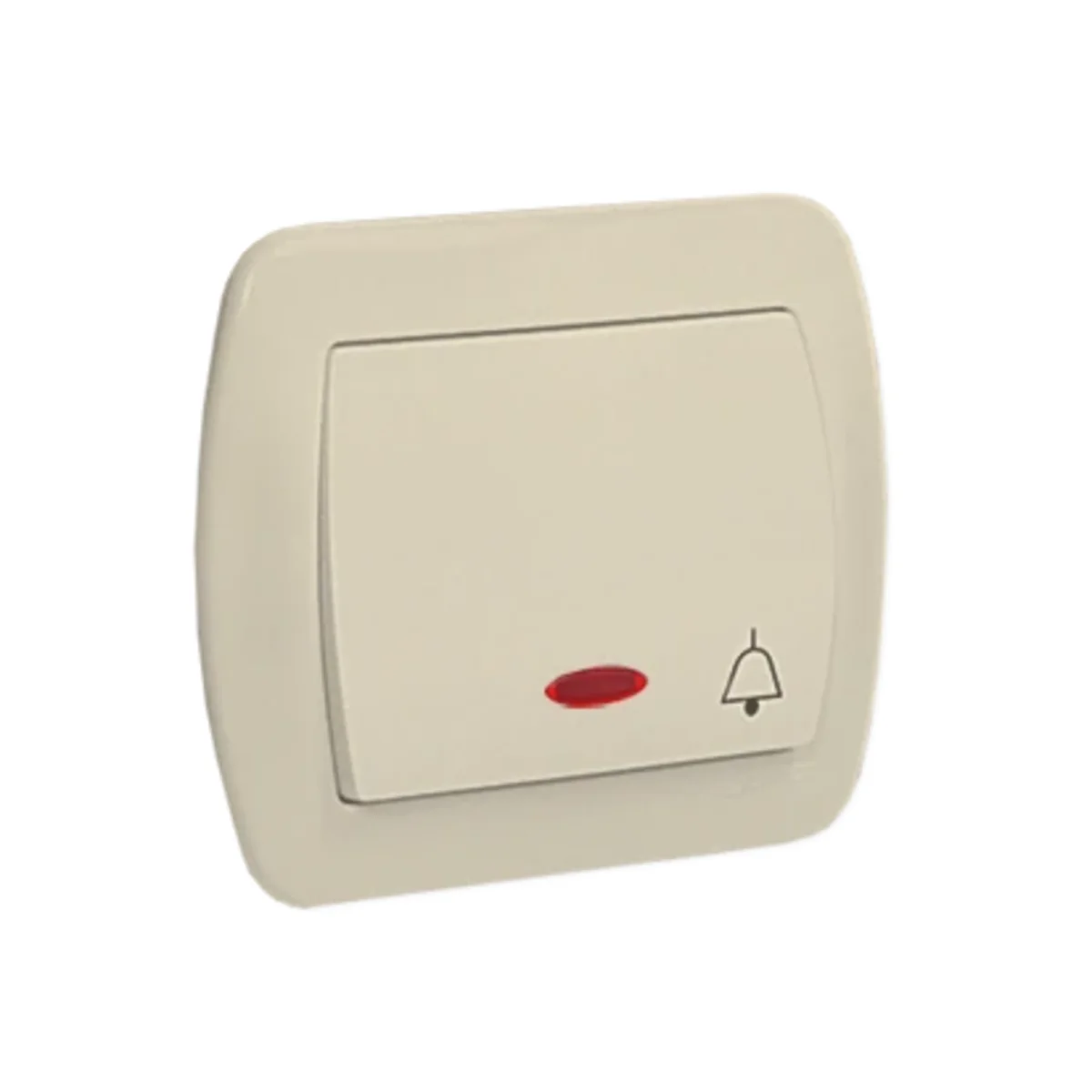

Bell button with backlight 10A 250V beige screw terminals AD1L/12

Índice local:
MMZ094KONT
Número de catálogo:
AD1L/12
Código EAN:
5902787569198
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 1
Precio:
6,20 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 2 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

"bell button" with backlight,  Simon Akord series, from the manufacturer Contact Simon. The product catalog number is AD1L/12. In beige



FEATURES

  • “bell” on the key.
  • Built-in, orienting backlight, orange lamp.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon CHORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Datos técnicos

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    90
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Backlight type
    Orientation Smoldering lamp
  • PKWIU
    27.33.11.0
  • Depth [mm]
    37.5
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    CHORD
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24.5
  • Variant
    Bell
  • Exact material
    PC
  • Backlight color
    Orange

Otros datos técnicos

  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Beige
  • Nominal voltage
    250 V
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Detalles del fabricante

Empaquetado a granel

una especie de paquete Paczka Karton
Cantidad 1 uds. 10 uds.
Peso (kg) 0,056 0,652
Ancho (m) 0,110 0,190
Longitud (m) 0,043 0,230
Profundidad (m) 0,165 0,100
