Bell button (module) 230V, matt bronze metallic DD1.01/46

Name: Bell button (module) 230V, matt bronze metallic
Brand: KONTAKT-SIMON
SKU: MMZ058KONT
Price: 7.75 PLN

local index:

MMZ058KONT

Catalog No:

DD1.01/46

EAN code:

5902787832964

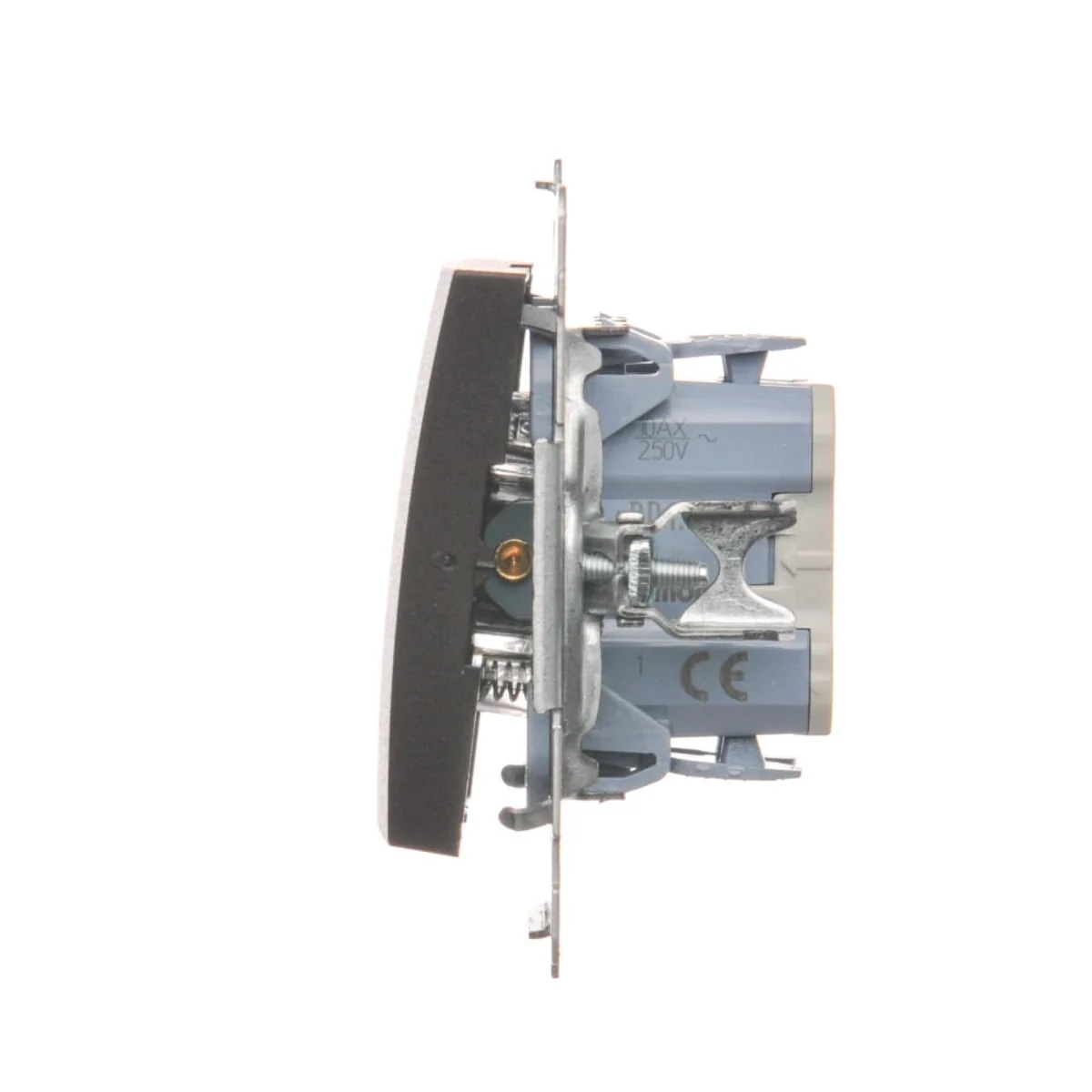

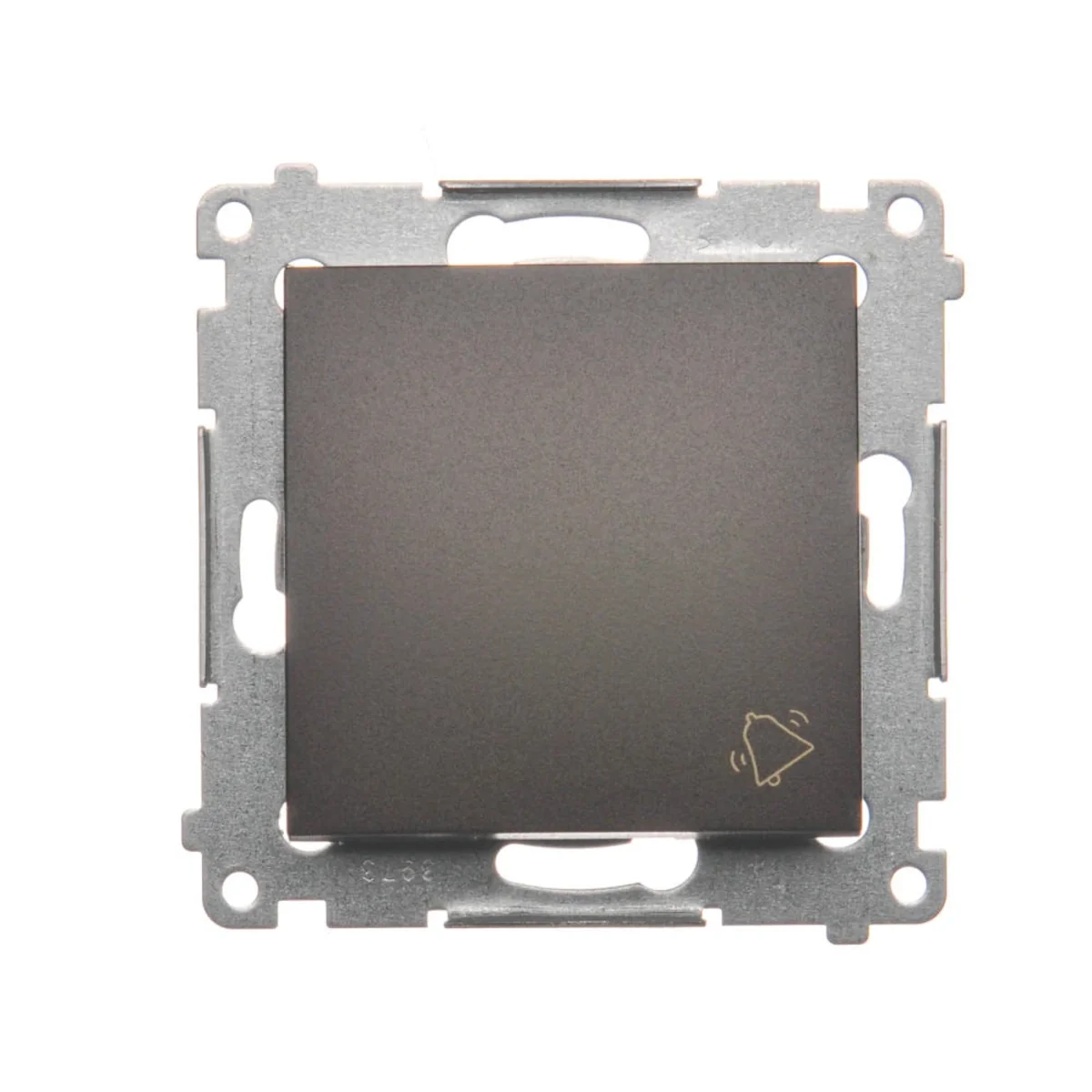

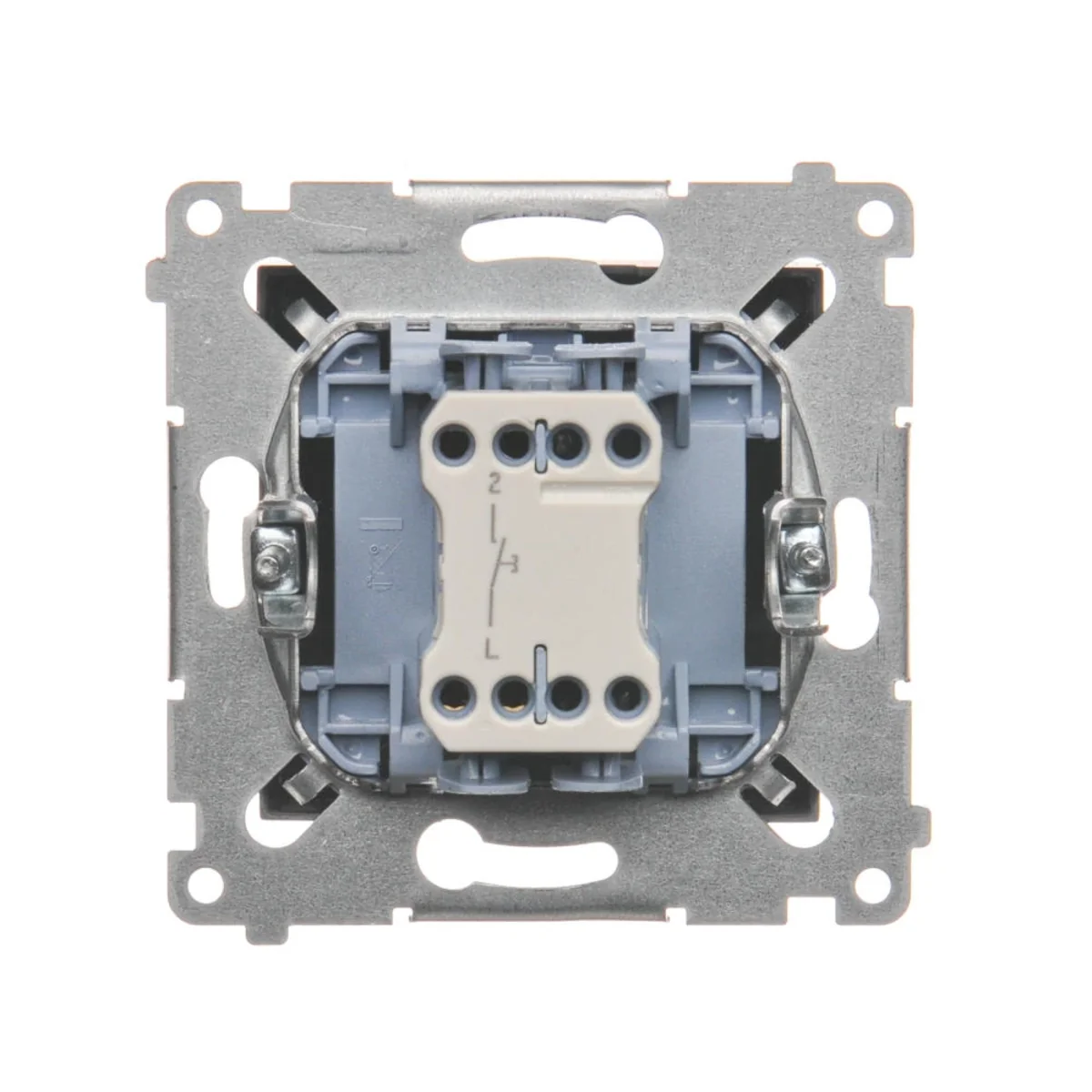

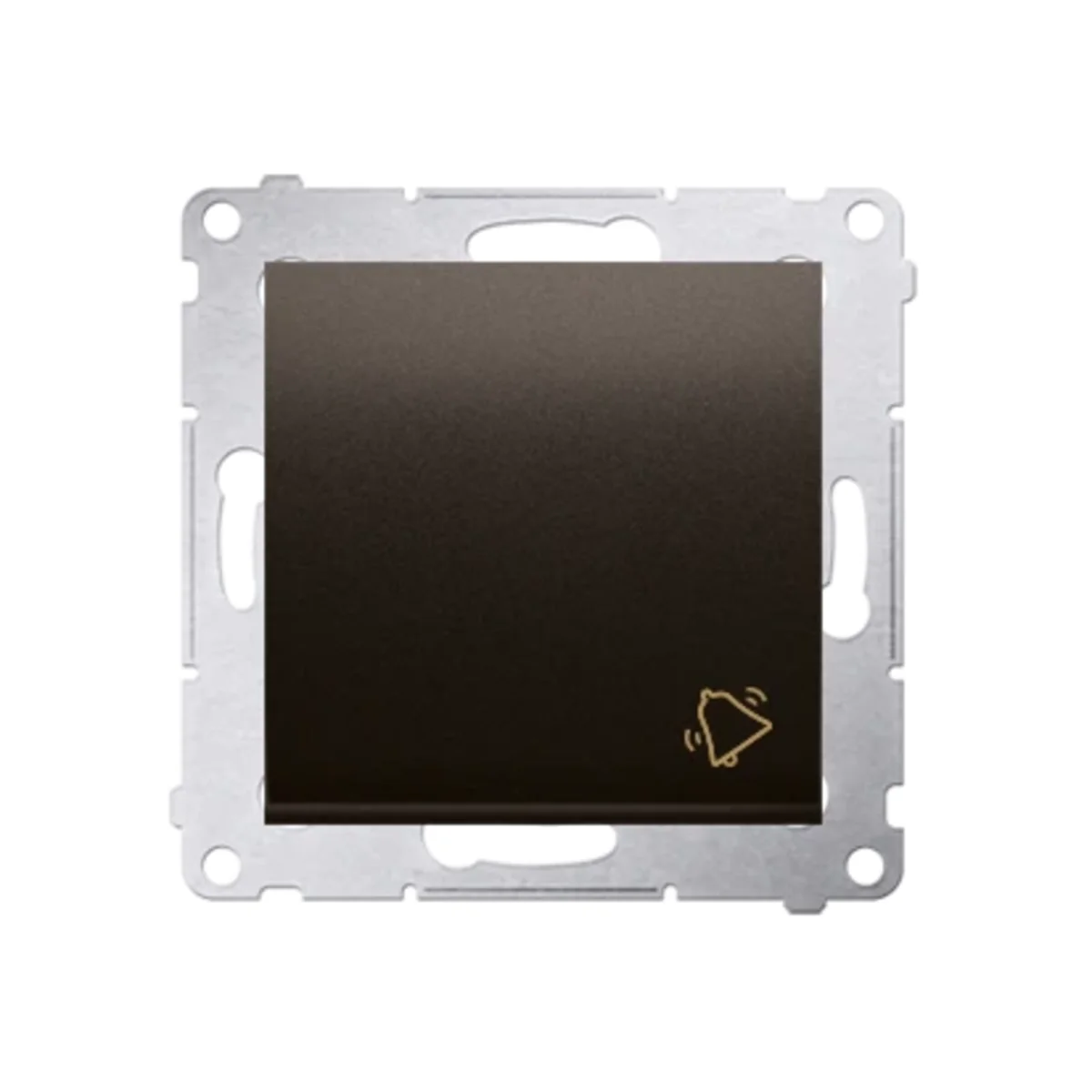

Bell button (module) 230V, matt bronze metallic

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

7,75 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

"bell button" from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DD1.01/46. ;In the color of matt bronze, metallised.

FEATURES

Quick connectors.
"bell" symbol on the key.
To obtain the IP44 splash-proof class, use the frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Width [mm]

75
Version

Confident
Surface protection

varnishing
Accurate color

Metallic bronze matt
Mounting depth [mm]

26
Variant

Bell
Exact material

PC

Depth [mm]

41
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Bell
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Lacquered
Colour

Brown
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,686
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
