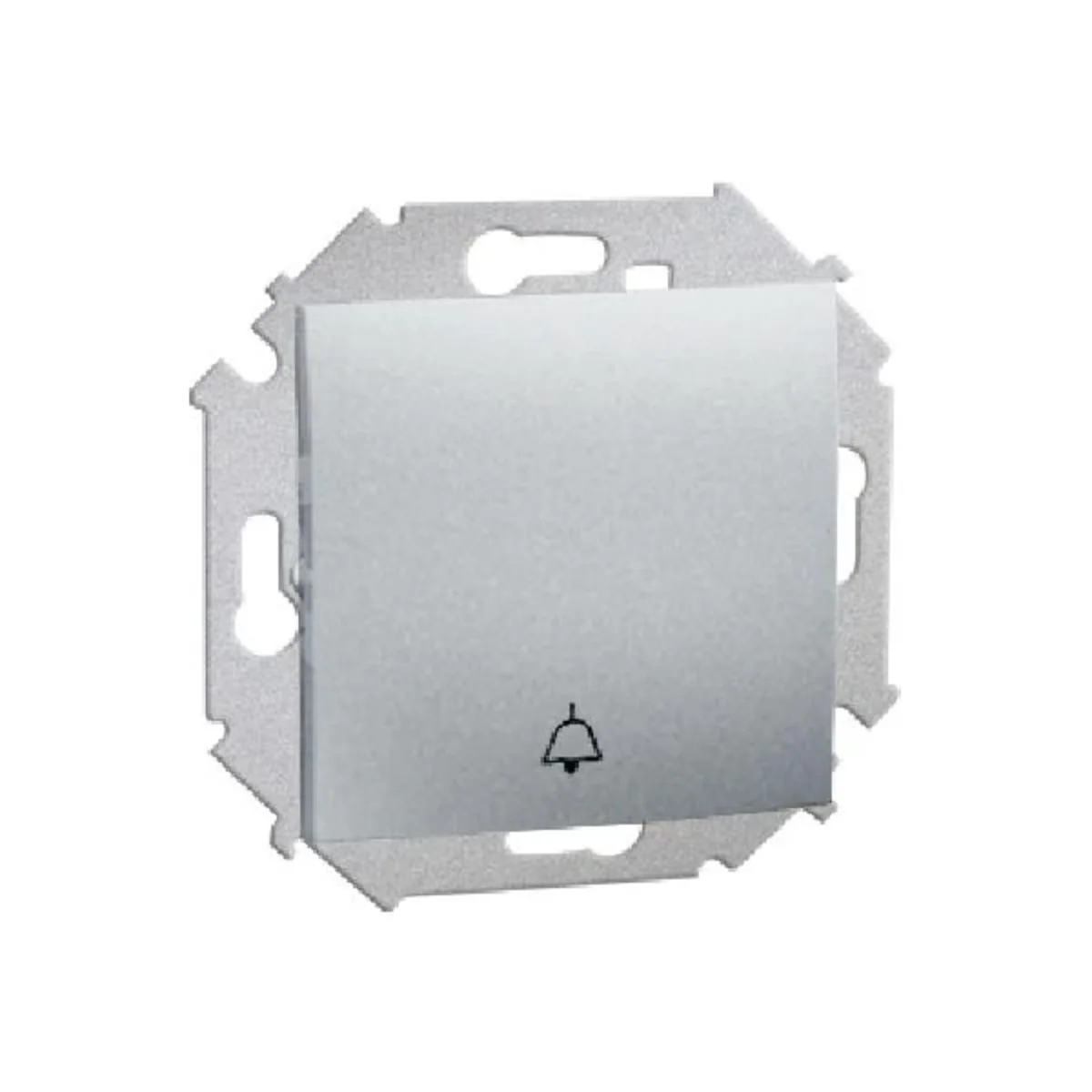

Bell button (module) 10A, 230V, screw terminals, aluminum (metallic) 1591659-026

Indice locale:
MMZ090KONT
Numero di catalogo:
1591659-026
Codice EAN:
5902787830304
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 40
Number of keys: 1
Prezzo:
21,16 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

The bell button from the  Simon 15 series, from the manufacturer Contact Simon. The product catalog number is 1591659 -026. In aluminium, metallised.

  • “bell” on the key.



SERIES DESCRIPTION

TheSimon 15series are elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees composition
with many interiors

Dati tecnici

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    74
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Aluminum metallised
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    ABS
  • Depth [mm]
    40
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 15
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    74
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Altri dati tecnici

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20

Dettagli del produttore

  • Produttore
    KONTAKT - SIMON S.A.
  • Indirizzo
    43-500 Czechowice-Dziedzice Bestwińska 21
  • NIP
    6520005366
