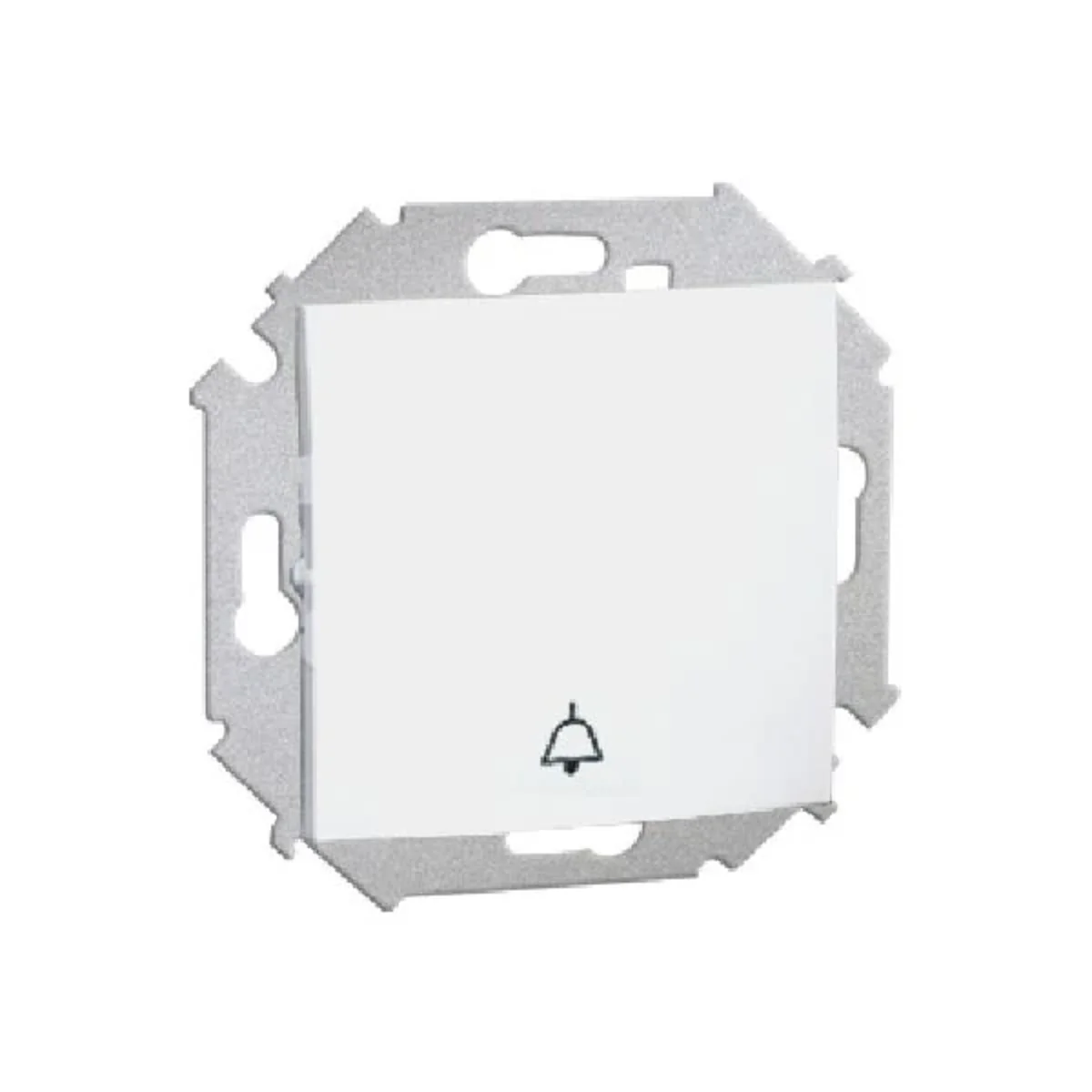

"Bell" button for IP44 version (module) 10A 230V screw terminals white 1591659B-030

Índice local:
MMZ019KONT
Número de catálogo:
1591659B-030
Código EAN:
5902787544591
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 40
Number of keys: 1
Precio:
22,63 zł
gross / uds.
(IVA incluido 23%)
Fuera de stock
Añadir a solicitud de presupuesto
Imprimir

Descripción del producto

"bell button" for IP44 version, from the Simon 15 series, from the manufacturer Contact Simon. The product catalog number is 1591659B -030. In white.

  • Symbol “bell” on the key.
  • To obtain the IP44 splash-proof class, use the frame gasket.



SERIES DESCRIPTION

Series Simon 15are elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees a composition with many interiors

Datos técnicos

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    74
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    40
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 15
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    74
  • Surface finish
    Shiny
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    ABS

Otros datos técnicos

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V

Detalles del fabricante

  • Fabricante
    KONTAKT - SIMON S.A.
  • Dirección
    43-500 Czechowice-Dziedzice Bestwińska 21
  • NIF
    6520005366
