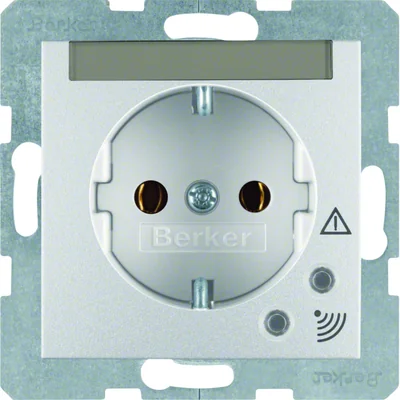

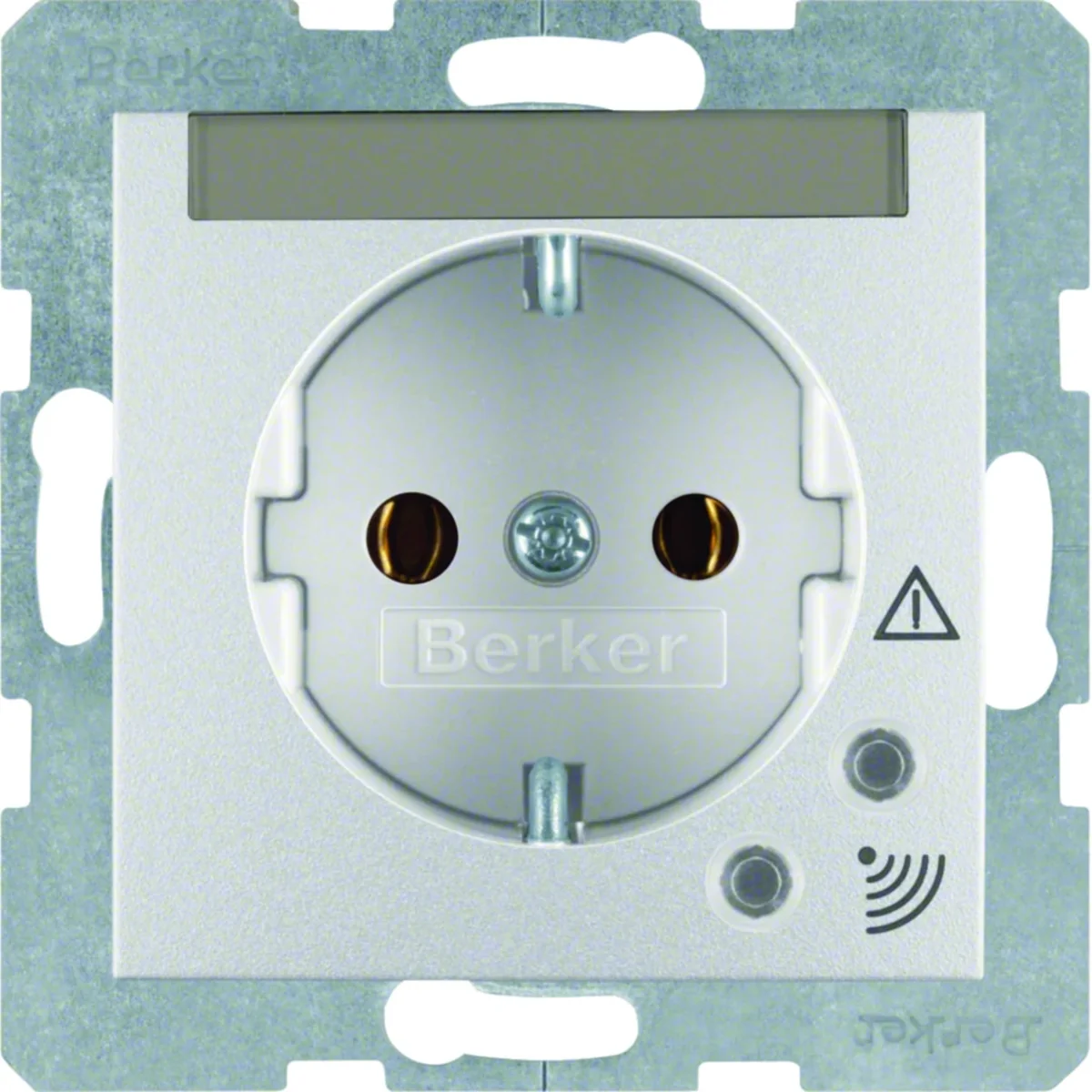

B.7 SCHUKO socket with overvoltage protection and aluminum description field 41081404

local index:
MEE001BERK
Catalog No:
41081404
EAN code:
4011334225256
Manufacturer: BERKER
Number of sockets: 1
Color: Silver
Shape: Square
Price:
238,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket with earthing SCHUKO, with overvoltage protection and description field, from the Berker B.7 series, perfectly harmonizing with modern interiors, both in the office and and home. It is an elegant design in the setting of precious materials.

  • The height of the description field is adapted to the 6 mm P-touch strip.

Control elements and indicators :

  • with acoustic error signaling.

Equipment:

  • with LED for activation/fault.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    B.7
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Overvoltage protection
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Descriptive field
    Yes
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • Number of units
    1
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Other
  • Material
    Plastic
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Other
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Lockable
    No
  • With function lighting
    Yes
  • Over voltage protection
    Yes
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Device width
    71 mm
  • Device depth
    42 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,103 0,128 4,873 175,926
Width (m) 0,071 0,084 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
