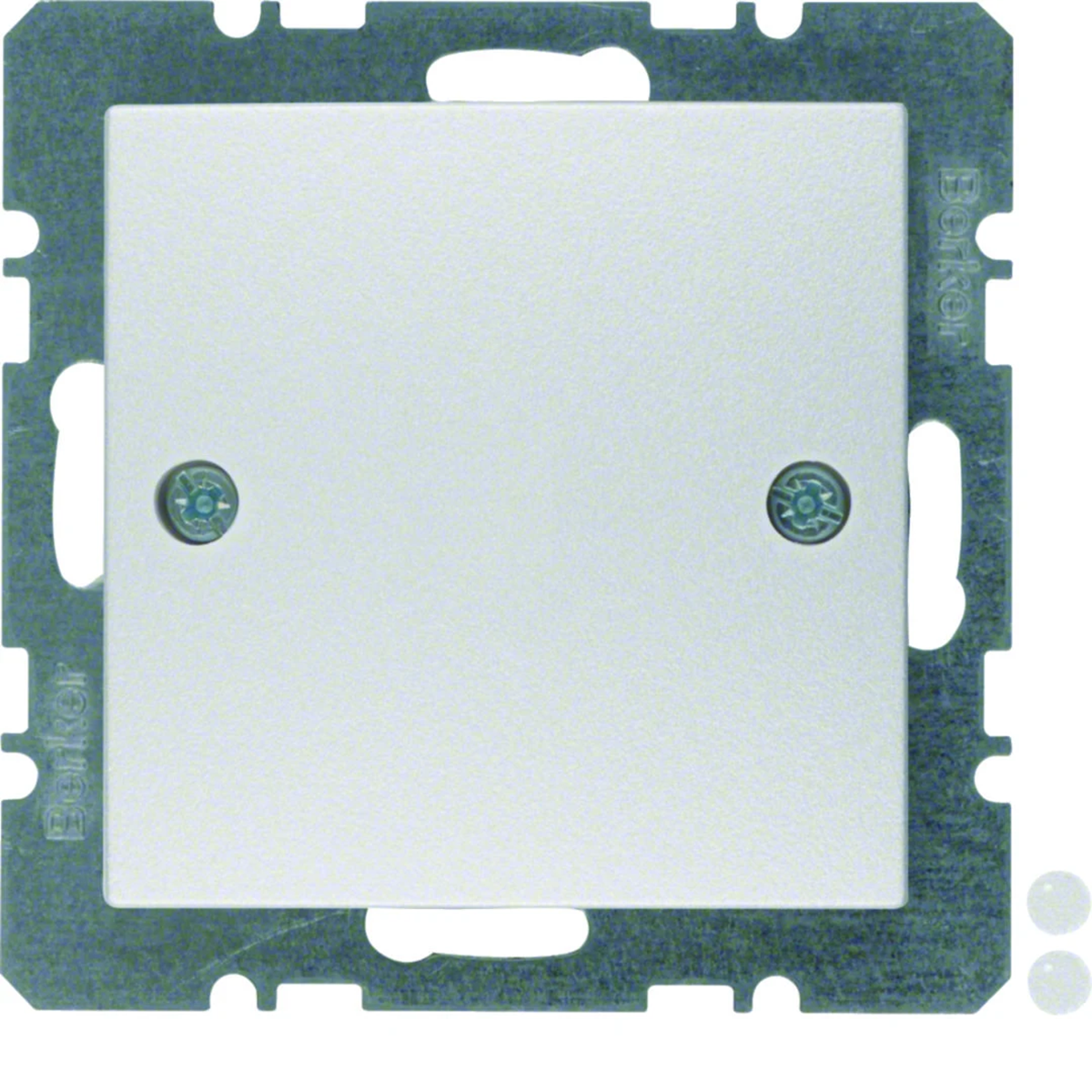

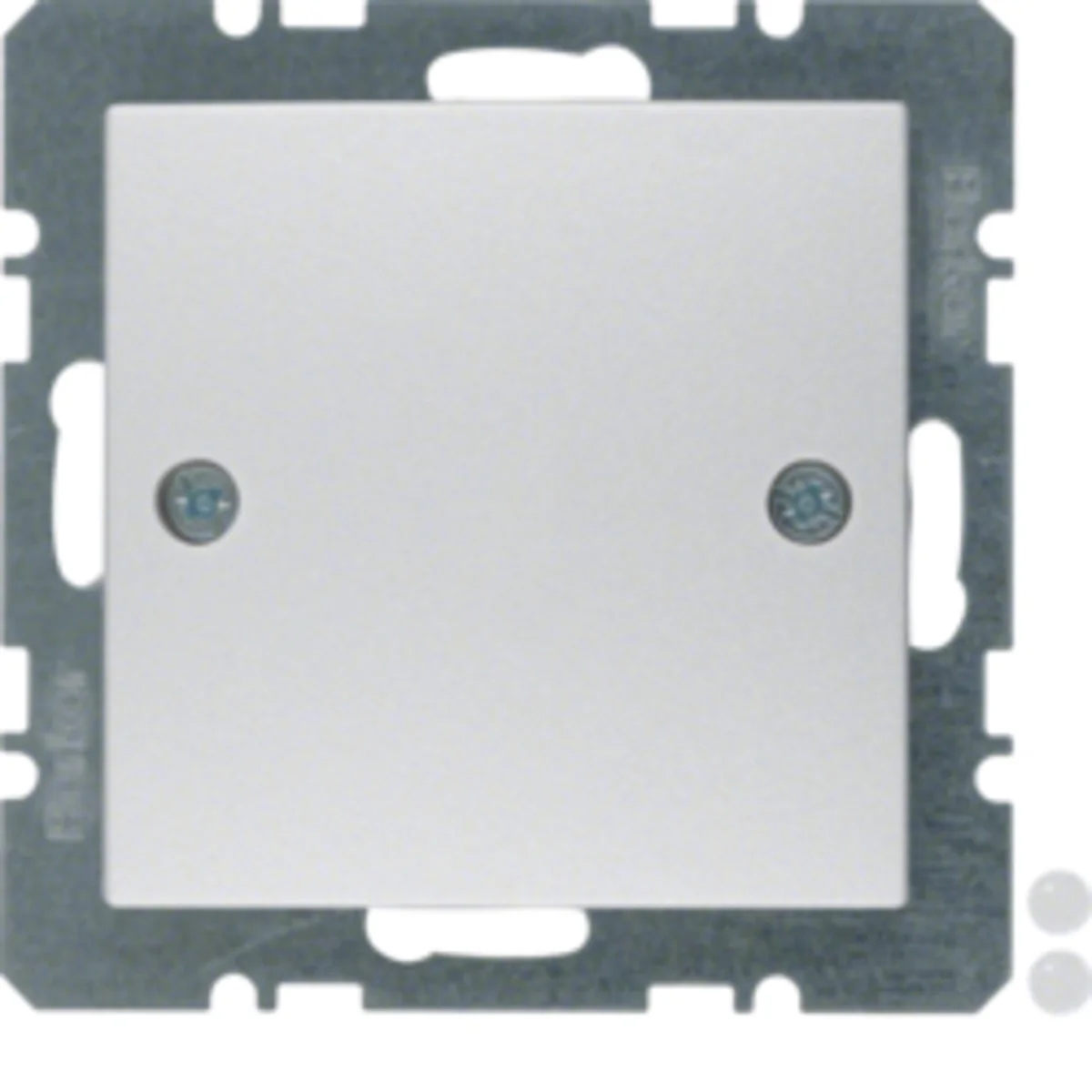

B.7 End cap with central element and aluminum screw fixing 10091414

local index:
MAZ052BERK
Catalog No:
10091414
EAN code:
4011334249290
Manufacturer: BERKER
Material: Aluminum
Installation: helical
Family: B.7
Price:
17,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

End cap with a central element and screw fixing from Berker B.7 - a series whose wiring accessories are an architectural detail that emphasizes the style of the interior. This modern, yet classic in its elegance design, thanks to the variety of available colors, can become the icing on the cake of any arrangement.

  • Support plate / support ring: on the support plate with a large cut-out,
  • Cover: with screwed cover,
  • Type of mounting: for screw fixing,
  • Cut-out: for individual cutouts or openings for the installation of special solutions,
  • Relay: with mounting space, e.g. for a relay.

The end cap is made of matt aluminum, the surface is varnished.

Technical data

  • Material
    Aluminum
  • Family
    B.7
  • Installation
    helical
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    No
  • With buses/couplings
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    11.6 mm
  • Utilization
    Blind cap
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 100 pcs. 3200 pcs.
Weight (kg) 0,031 0,710 3,995 147,849
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,012 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
