B.7 Aluminum/white frame with large cut-out 13096914
local index:
MAR034HAGE
Catalog No:
13096914
EAN code:
4011334385004
Price:
200,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

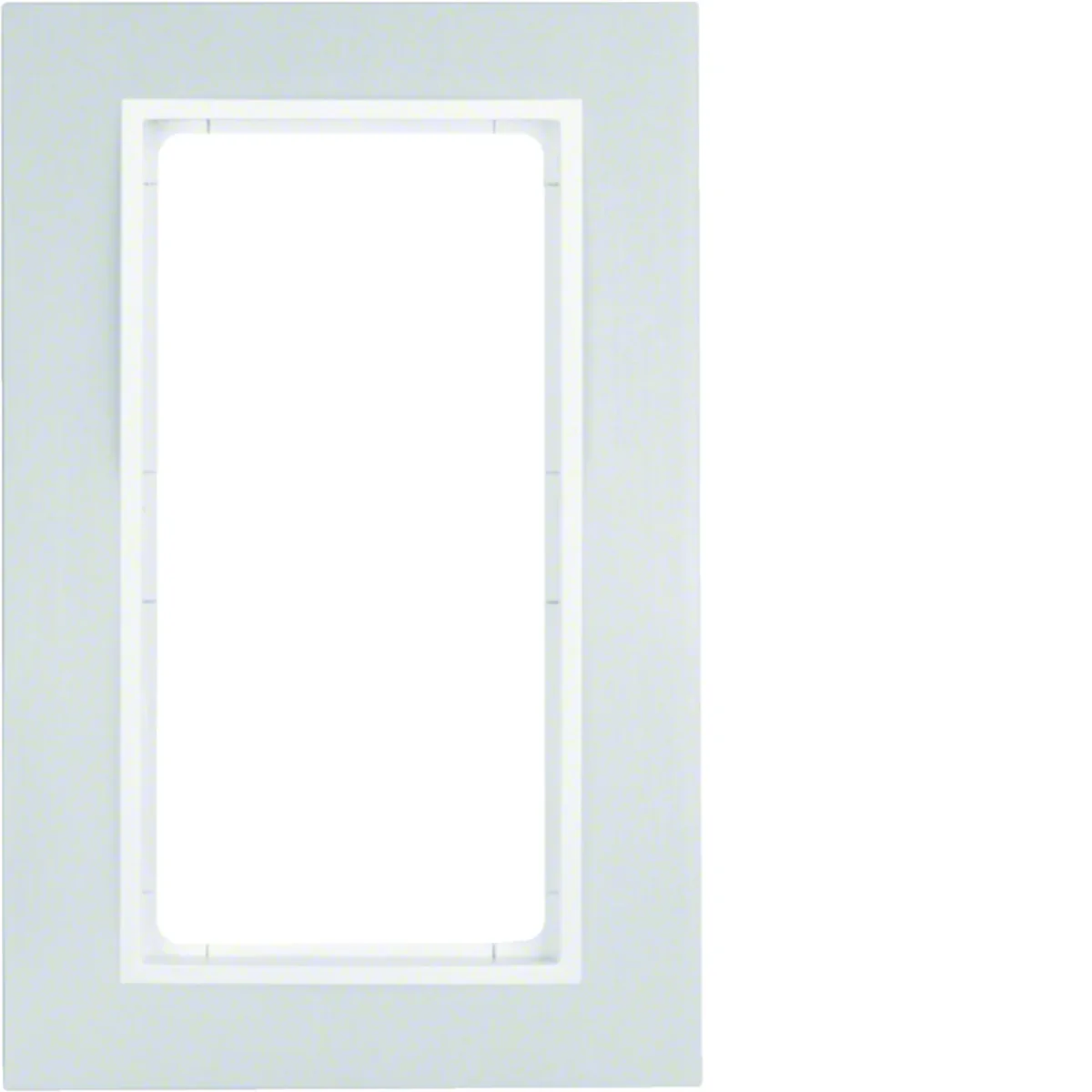

Frame with a large cut-out from the B.7 series. The product catalog number is 13096914.
- For KNX pushbuttons.
- For vertical mounting.
SERIES DESCRIPTION
The Berker B.7 seriesadds elegance to any interior, thanks to the combination of a delicate frame texture with a sharp contour.
Technical data
-
Depth [mm]9.6
-
Colorsilver White
-
MaterialMetal
-
FamilyB.7
-
Width [mm]95
-
Surface finishmatte
-
Mounting directionVertical
-
Exact materialAnodized aluminum
-
PKWIU27.12.40.0
-
Number of modules1
-
ShapeRectangular
-
TypeStandard + Intermediate
-
Level of securityIP20
-
Height [mm]146
-
Accurate colorAluminum
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialMetal
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9006
-
With hinged lidNo
-
Impact strengthIK07
-
Width95 mm
-
Depth9.6 mm
-
Built-in height111.1 mm
-
Mounting directionVertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityAluminium
-
Surface protectionAnodised
-
ColourAluminium
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height146 mm
-
Built-in width55.4 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 2 pcs. | 44 pcs. | 1408 pcs. |
| Weight (kg) | 0,089 | 0,218 | 5,238 | 187,616 |
| Width (m) | 0,095 | 0,109 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,042 | 0,225 | 1,050 |
| Depth (m) | 0,146 | 0,193 | 0,400 | 1,200 |
