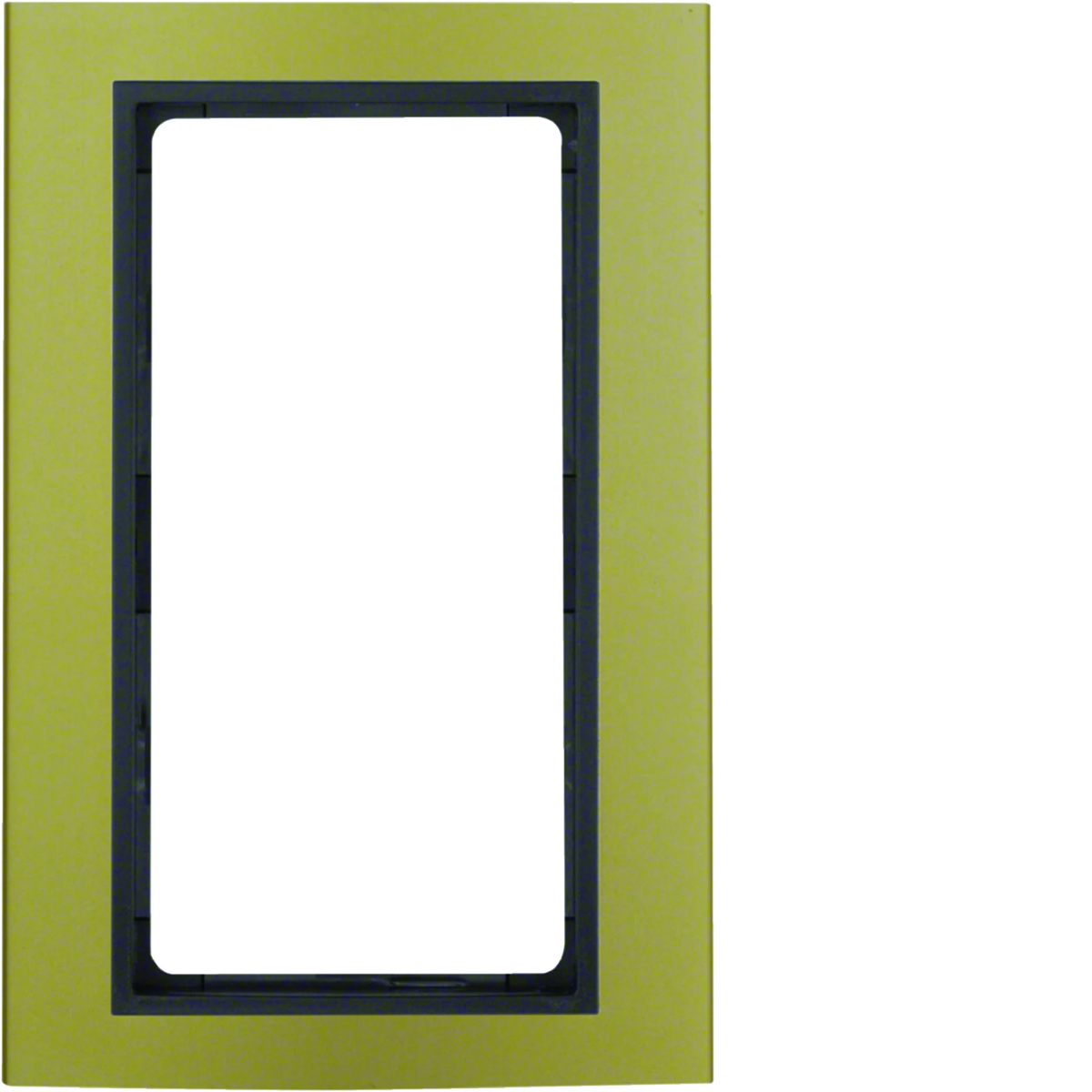

B.3 Frame with large cut-out aluminum gold/anthracite 13093016

local index:
MAR005HAGE
Catalog No:
13093016
EAN code:
4011334384946
Manufacturer: HAGER
Depth [mm]: 9.5
Number of modules: 1
Color: gold | Graphite
Price:
48,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Frame with a large cut-out from the B.3 series. The product catalog number is 13093016.

  • For KNX buttons.



DESCRIPTION SERIES

The Berker B.3series will perfectly fit into modern interiors, thanks to its elegant design and the use of precious materials.

Technical data

  • Depth [mm]
    9.5
  • Color
    gold Graphite
  • Material
    Metal
  • Family
    B.3
  • Width [mm]
    91
  • Surface finish
    matte
  • Mounting direction
    Vertical
  • Exact material
    Anodized aluminum
  • PKWIU
    27.12.40.0
  • Number of modules
    1
  • Shape
    Rectangular
  • Type
    Standard + Intermediate
  • Level of security
    IP20
  • Height [mm]
    137.1
  • Accurate color
    Aluminum Gold Anthracite
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    1004
  • With hinged lid
    No
  • Impact strength
    IK07
  • Width
    91 mm
  • Depth
    9.5 mm
  • Built-in height
    111.1 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Anodised
  • Colour
    Gold
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    137.1 mm
  • Built-in width
    55.4 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1920 pcs.
Weight (kg) 0,063 0,065 4,340 163,880
Width (m) 0,137 0,095 0,300 0,800
Length (m) 0,009 0,025 0,225 1,050
Depth (m) 0,091 0,170 0,400 1,200
