B. SQUARE "USA/CANADA" NEMA 5-20R earthed socket cream 41688982
local index:
MEE049BERK
Catalog No:
41688982
EAN code:
4011334305033
Price:
47,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

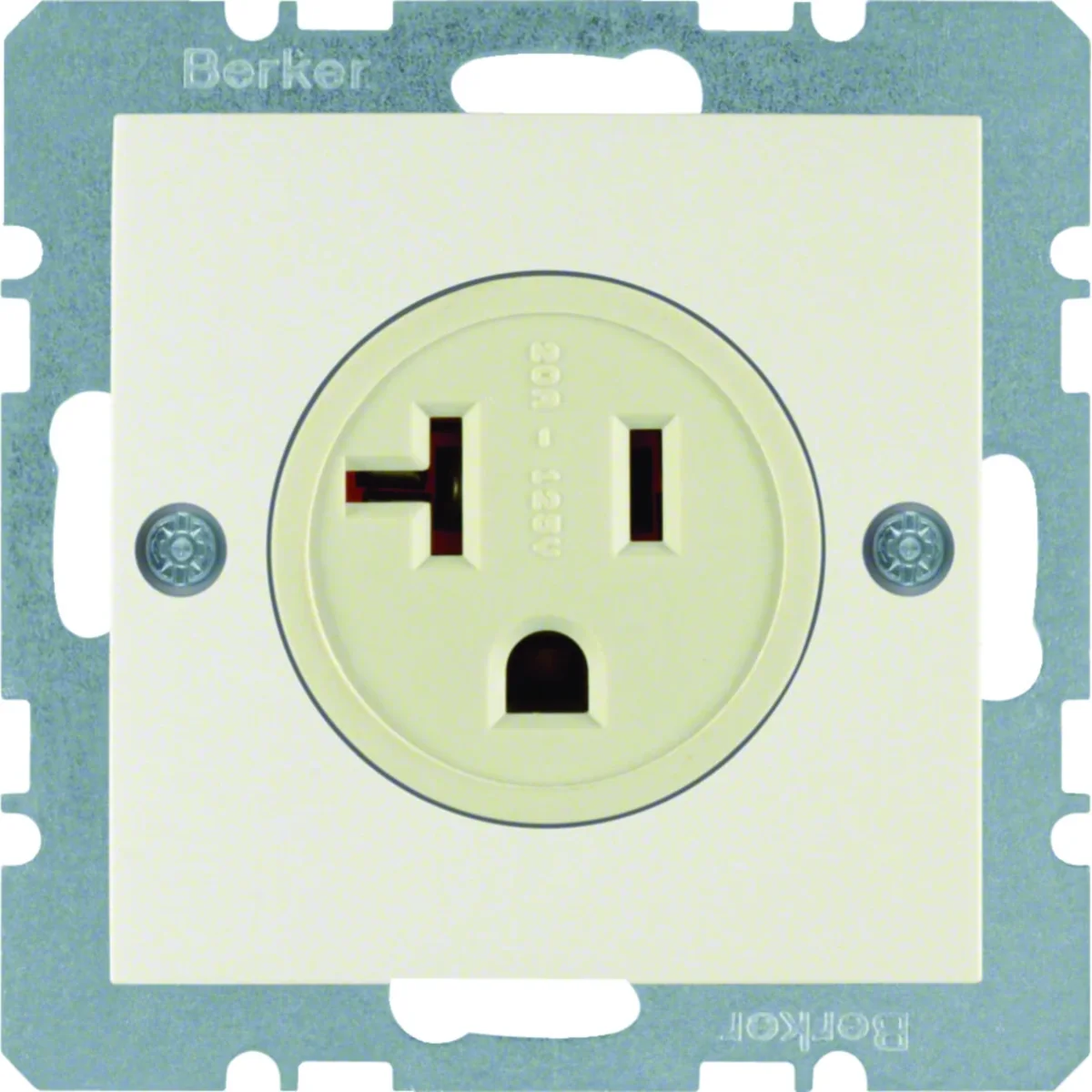

Earthed socket, USA/CANADA standard, NEMA 5-20 R standard. With screw terminals.
Technical data
-
Number of sockets1
-
ShapeSquare
-
Fixingscrews
-
Rated voltage [V]125
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Surface finishShiny
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]20
-
FamilyB.SQUARE
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
Accurate colorCreamy
-
Mounting depth [mm]19
-
StandardAmerican Canadian
-
On the DATA keyNO
-
Exact materialThermoplastic
Other technical data
-
ModelNEMA
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage125 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth30 mm
-
Protective contactYes
-
Number of active contacts (flat)2
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current20 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,067 | 0,775 | 4,245 | 155,849 |
| Width (m) | 0,071 | 0,175 | 0,300 | 0,800 |
| Length (m) | 0,030 | 0,080 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,235 | 0,400 | 1,200 |
