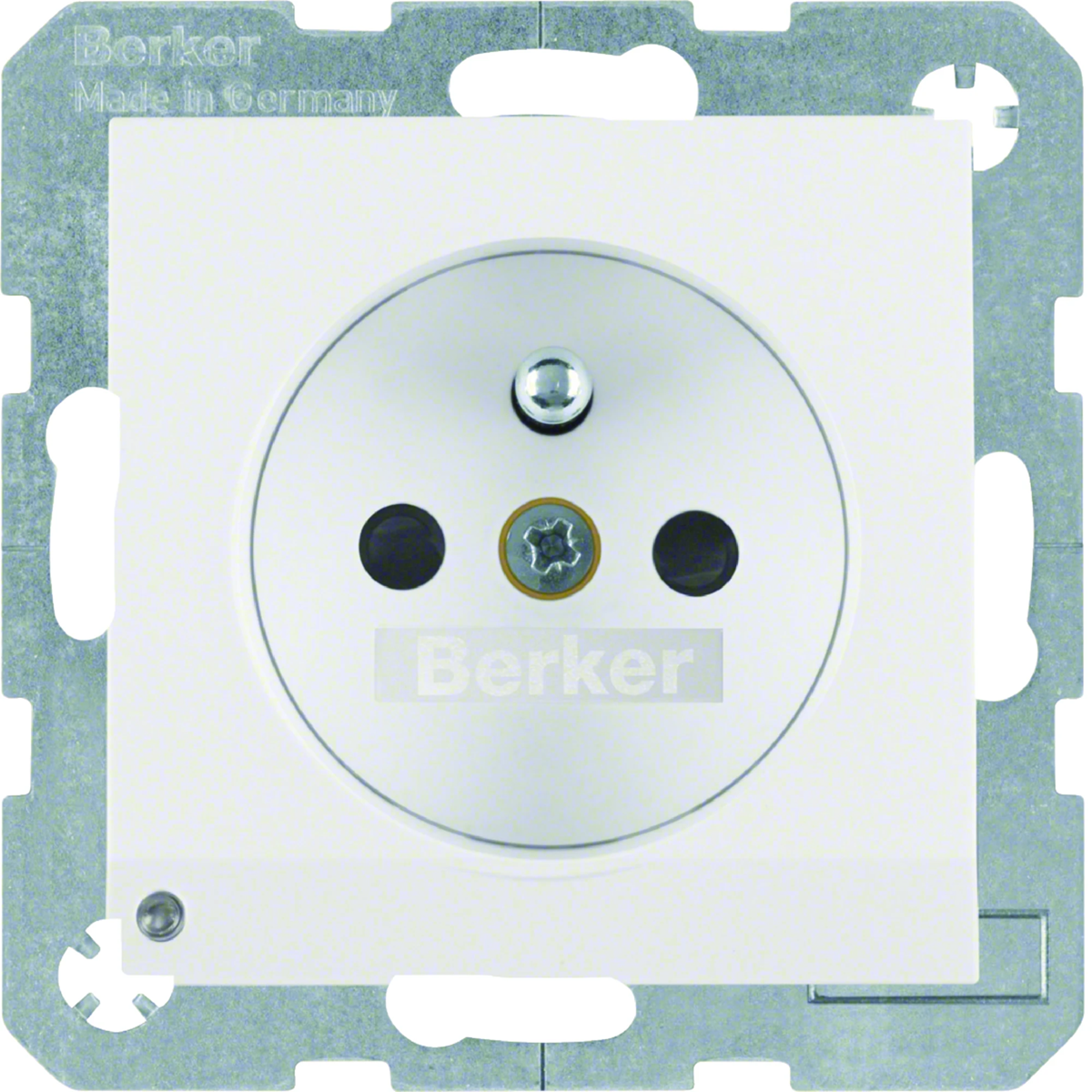

B. SQUARE Socket with grounding and white LED orientation lighting 6765101909
local index:
MEE161BERK
Catalog No:
6765101909
EAN code:
4011334365679
Price:
82,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Earthed socket and LED orientation illumination, from the Berker series S.1/B.3/B.7< /strong>.
- 2-pole
- integrated light sensor that turns on the orientation light at dusk and turns it off when there is sufficient light
- long LED lifetime
- white LED light
Technical data
-
Number of sockets1
-
ShapeSquare
-
Input power [W]0.25
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyB.SQUARE
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
Accurate colorSnow white
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialThermoplastic
-
ColorWhite
-
MaterialPlastic
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9010
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingYes
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth41.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,096 | 1,045 | 4,633 | 168,259 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,069 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,385 | 0,400 | 1,200 |
