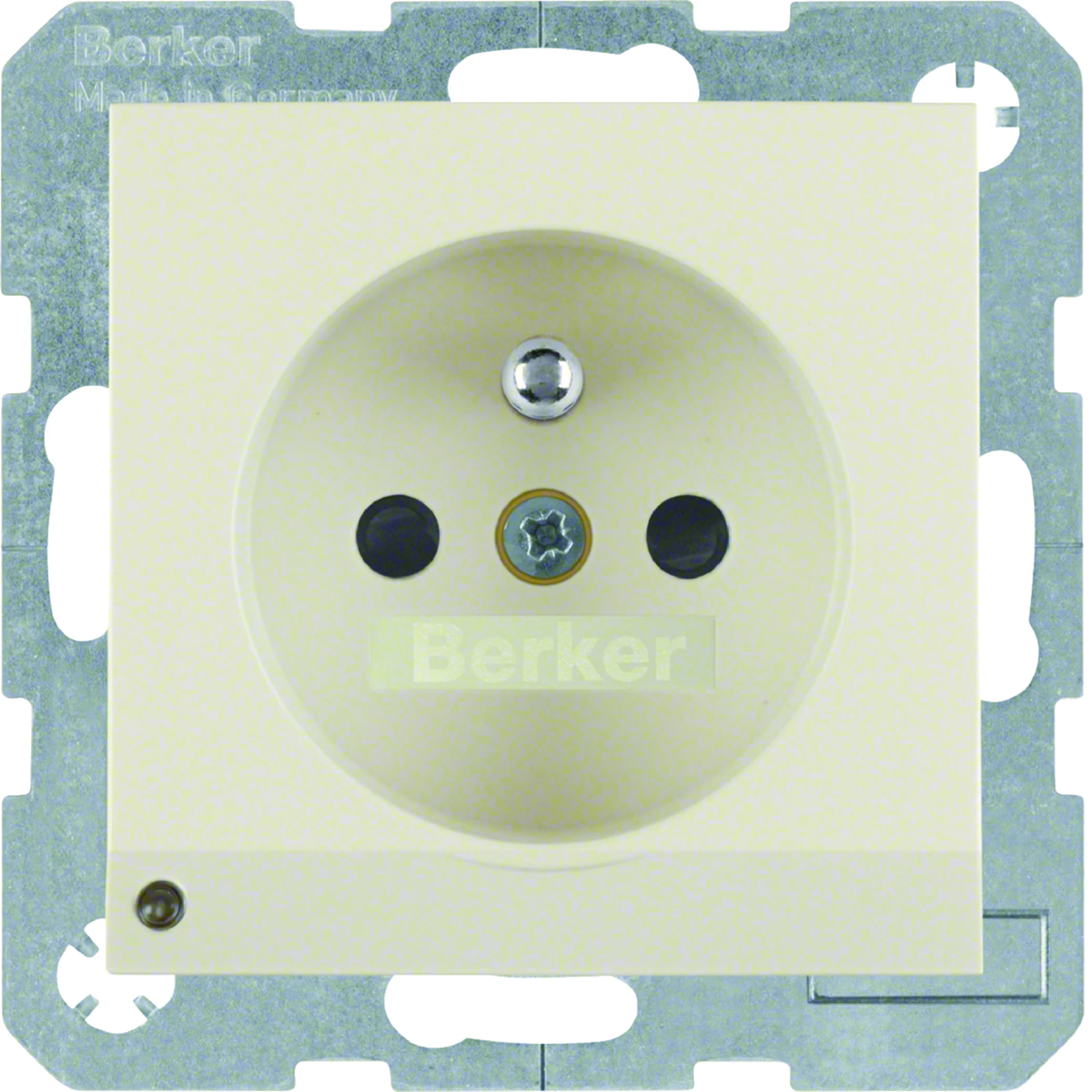

B. SQUARE Socket with grounding and LED orientation illumination - cream gloss 6765108982
Lokaler Index:
MEE171BERK
Katalognummer:
6765108982
EAN-Code:
4011334365693
Preis:
363,44 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Earthed socket and LED orientation backlight, from the Berker series B.Square.
- 2-pole
- integrated light sensor that turns on the orientation light at dusk and turns it off when there is sufficient light
- long life of the LEDs < li> white LED light
Technische Daten
-
Number of sockets1
-
ShapeSquare
-
Input power [W]0.25
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyB.SQUARE
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
Accurate colorCreamy
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialThermoplastic
-
ColorBeige
-
MaterialPlastic
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
Surface finishShiny
-
BacklightYes
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Weitere technische Daten
-
ModelEarthing pin
-
Number of active contacts (flat)0
-
Number of modules (module system)1
-
Number of phases1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of socket outlets switchable0
-
Imprint/indicationNone
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingYes
-
Fault current protectionNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Google AssistantNo
-
For heavy conditions according to VDENo
Hersteller-Details
-
HerstellerBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 10 stk. | 40 stk. | 1280 stk. |
| Gewicht (kg) | 1,055 | 4,673 | 169,539 |
| Breite (m) | 0,160 | 0,300 | 0,800 |
| Länge (m) | 0,060 | 0,220 | 1,050 |
| Tiefe (m) | 0,380 | 0,400 | 1,200 |
