B. SQUARE Socket with grounding and control LED with increased protection of contacts, glossy green 6765098913
local index:
MEE154BERK
Catalog No:
6765098913
EAN code:
4011334362722
Price:
87,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

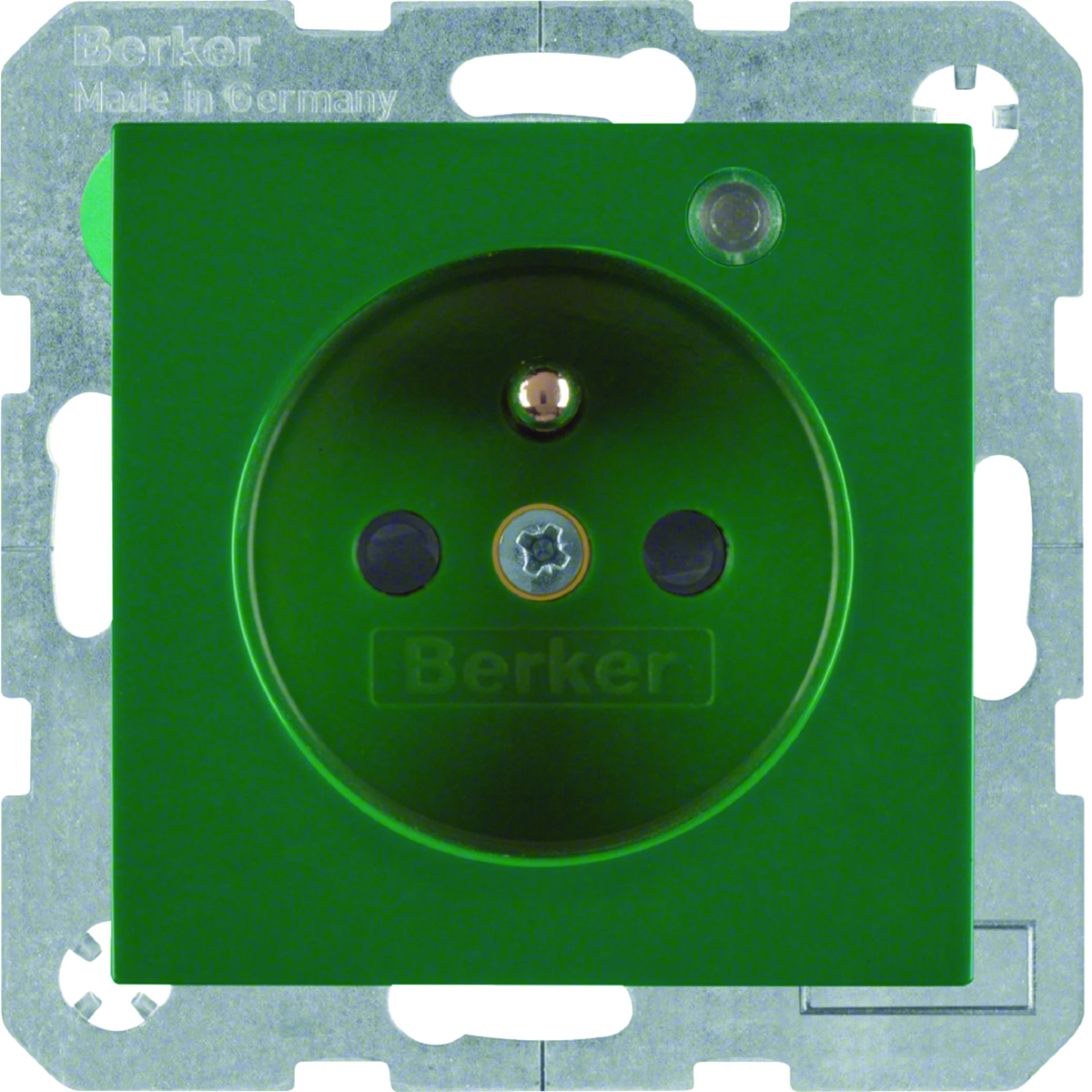

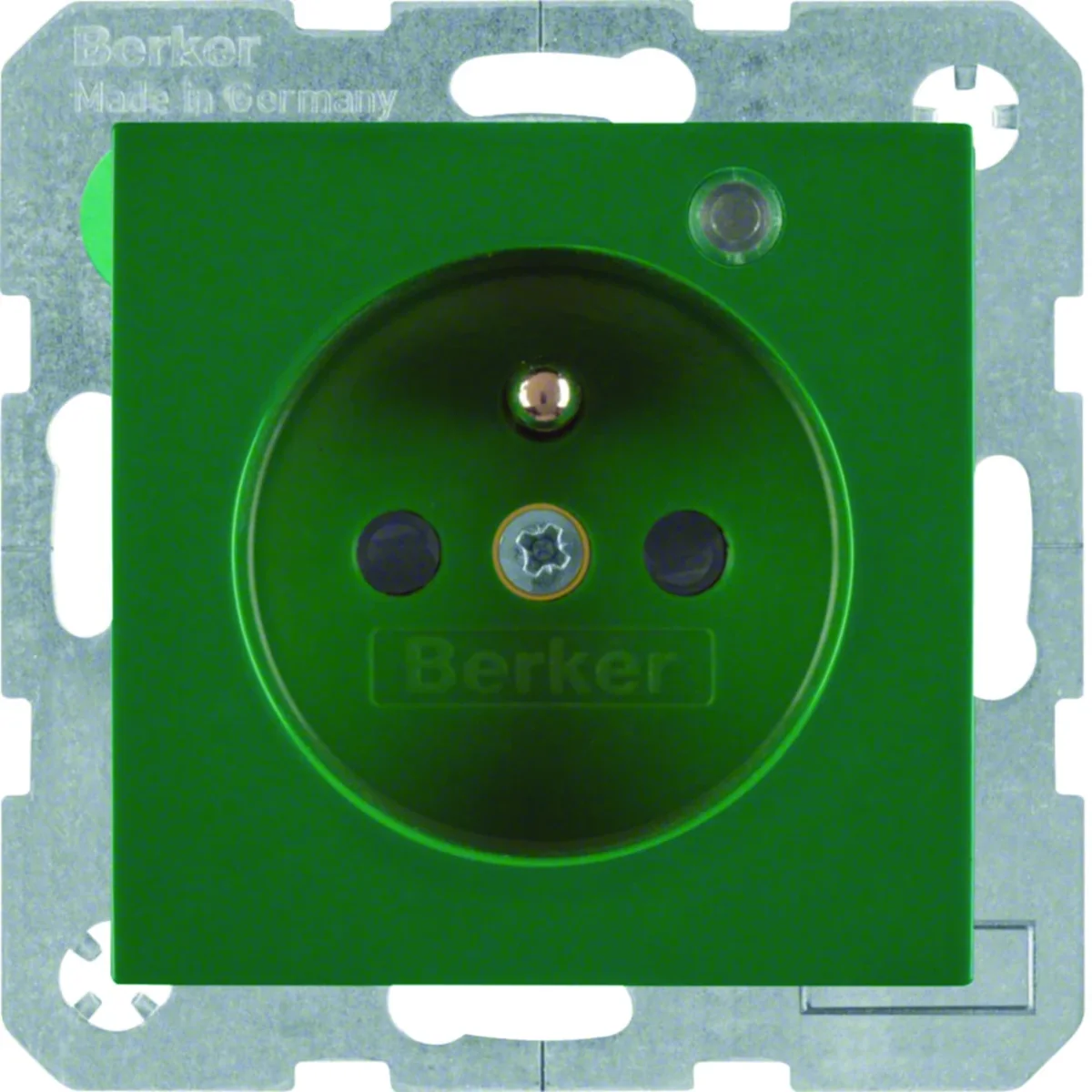

Socket with grounding and LED indicator, with increased contact protection, from the Berker B.Kwadrat/B.3/B.7 series, i.e. simple forms enclosed in high-quality material that will work in modern interiors.
Construction:
- 2-pole.
- with expansion lugs.
Connection:
- with screw-lift clamps.
Technical data
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
GroundHurt
-
BacklightYes
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorGreen
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyB.SQUARE
-
TypeFlush-mounted
-
Surface finishShiny
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialDuroplastic
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourGreen
-
TransparentNo
-
Eject-mechanismNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplySafety power supply (green)
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box31 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)6029
-
LockableNo
-
With function lightingYes
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Device width71 mm
-
Device depth41.6 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,093 | 1,018 | 4,656 | 173,992 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,069 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,385 | 0,400 | 1,200 |
