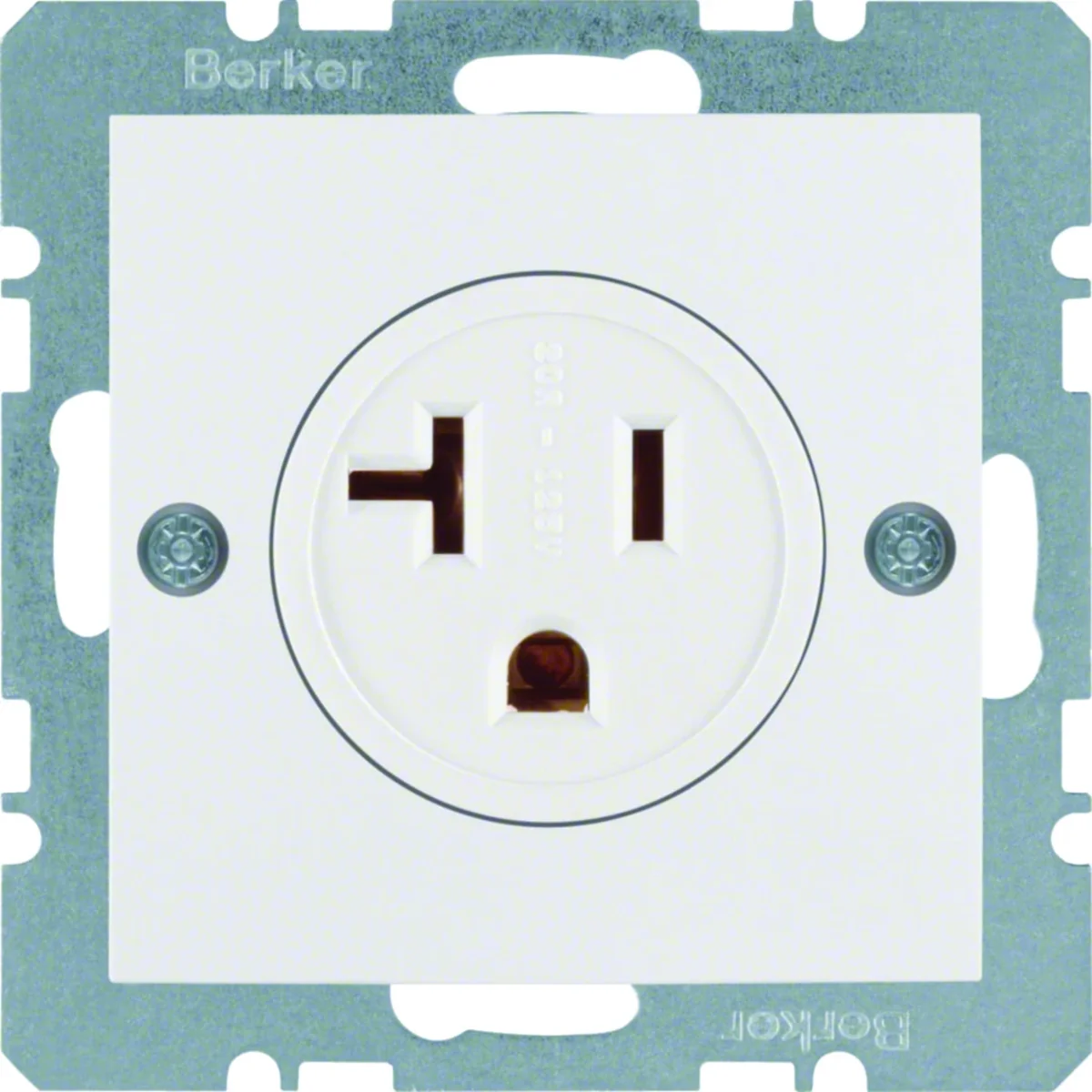

B. SQUARE Socket with earthing "USA/CANADA" NEMA 5-20R snow white 41688989

local index:
MEE050BERK
Catalog No:
41688989
EAN code:
4011334305040
Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
Price:
47,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Earthed socket, USA/CANADA standard, NEMA 5-20 R standard, Berker B.Kwadrat/B.3/B.7/S.1 series. With screw terminals.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    screws
  • Rated voltage [V]
    125
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    20
  • Family
    B.SQUARE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Snow white
  • Mounting depth [mm]
    19
  • Standard
    American Canadian
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    NEMA
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    125 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    30 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    20 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,067 0,760 4,245 155,849
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,030 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
