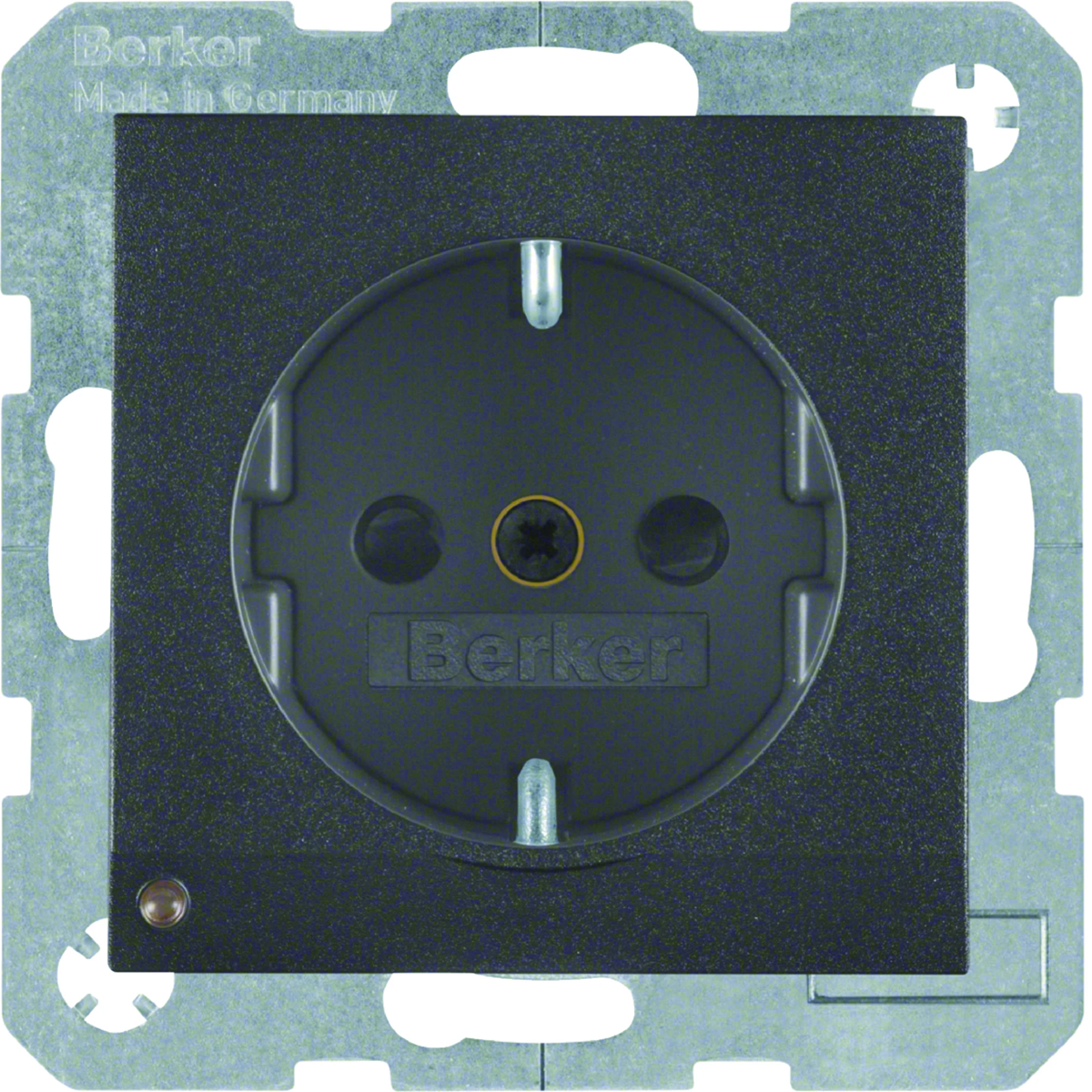

B. SQUARE SCHUKO socket with orientation lighting anthracite 41091606
Índice local:
MEE006BERK
Número de catálogo:
41091606
Código EAN:
4011334364115
Precio:
88,09 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Socket with grounding SCHUKO, with orientation LED backlight, series BerkerB.Kwadrat/B.3/B.7.< /p>
Detection:
- integrated light sensor that turns on the orientation light at dusk and turns it off when there is enough light
LED control:
- white LED light
- long life of LEDs
< strong>Additional information:
- 2-pole
- with lift screw terminals
Datos técnicos
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Groundschuko
-
Degree of mechanical protectionIK05
-
Accurate colorAnthracite
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialThermoplastic
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyB.SQUARE
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Otros datos técnicos
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourAnthracite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)7021
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingYes
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth41.6 mm
Detalles del fabricante
-
FabricanteHAGER POLO Sp. z o. o.
-
Dirección43-100 Tychy Fabryczna 10
-
NIF6460015532
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta |
| Cantidad | 10 uds. | 40 uds. | 1280 uds. |
| Peso (kg) | 1,015 | 4,513 | 164,419 |
| Ancho (m) | 0,160 | 0,300 | 0,800 |
| Longitud (m) | 0,069 | 0,225 | 1,050 |
| Profundidad (m) | 0,385 | 0,400 | 1,200 |
