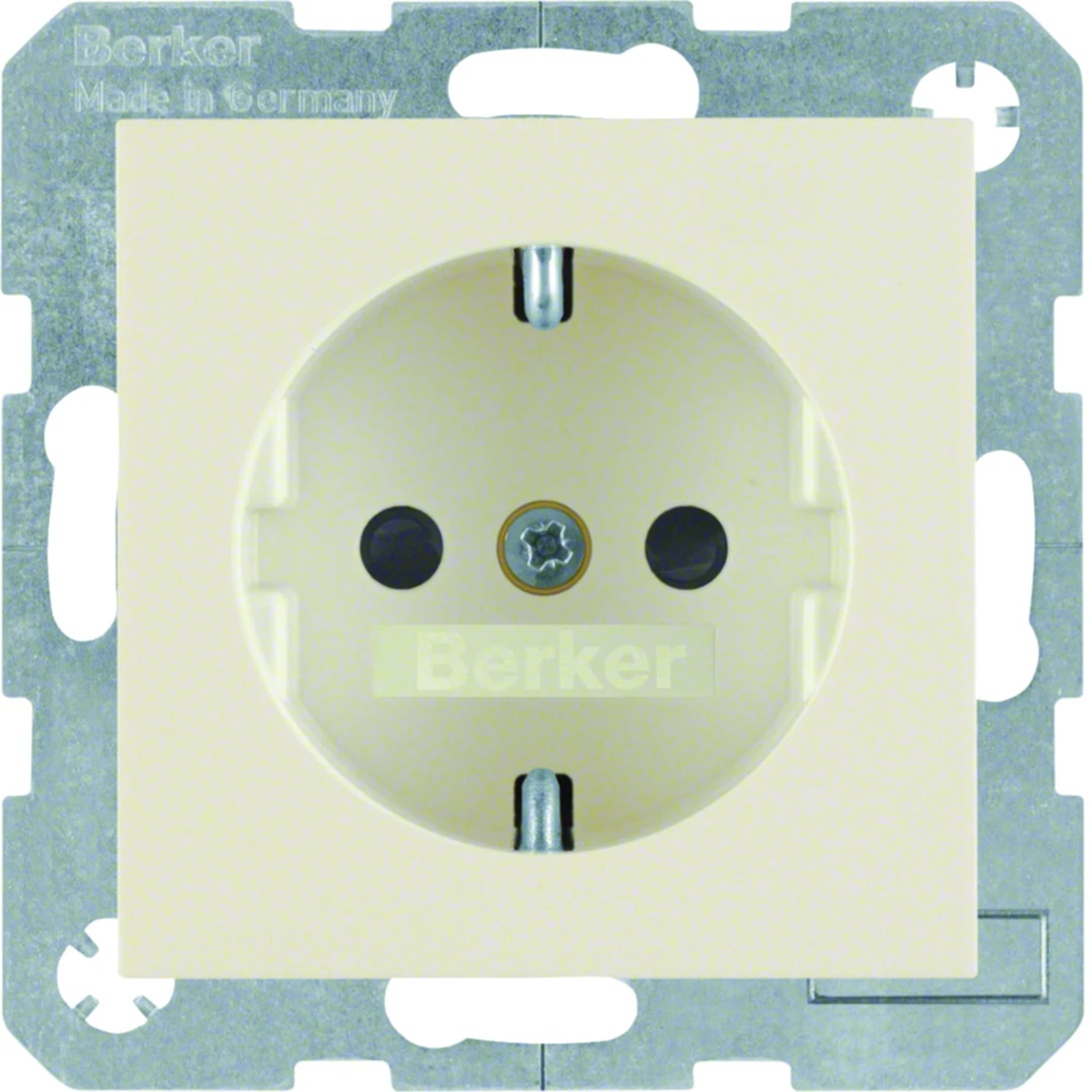

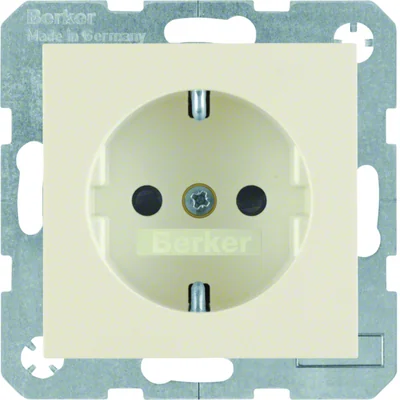

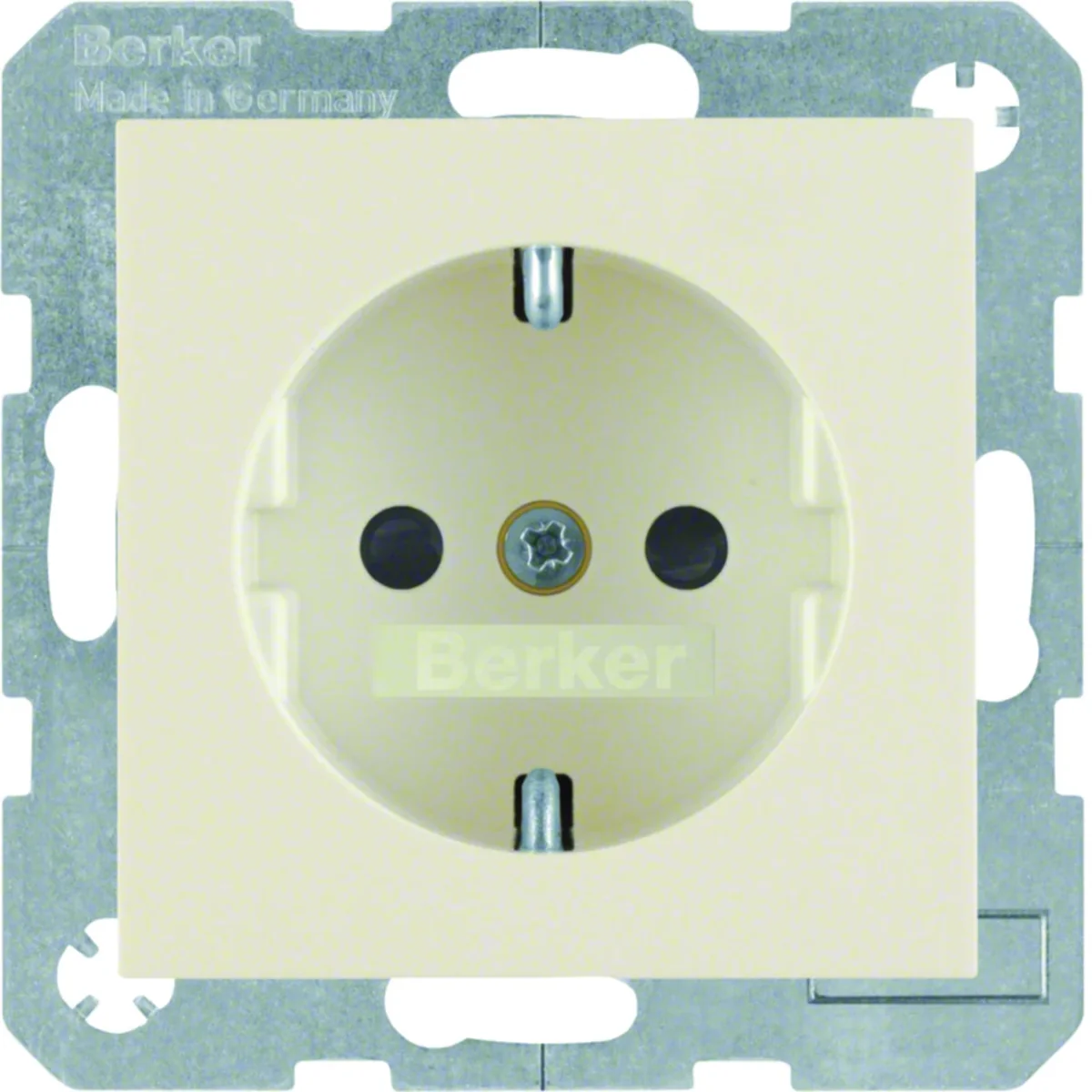

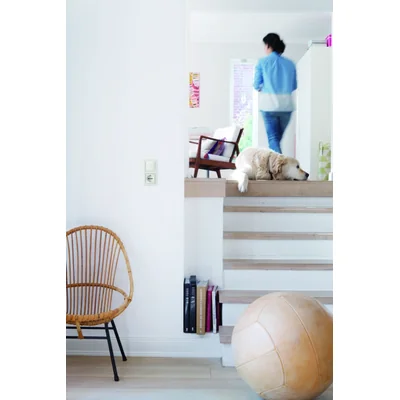

B. SQUARE SCHUKO socket with increased contact protection cream 41238982

local index:
MEE024BERK
Catalog No:
41238982
EAN code:
4011334277804
Manufacturer: BERKER
Number of sockets: 1
Color: Beige
Shape: Square
Price:
9,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

SCHUKO earthed socket Berker S.1 series:

  • increased protection against touch
  • 2 -pole
  • with contact shutters
  • with screw terminals

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    Shiny
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    B.SQUARE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK02
  • Accurate color
    Creamy
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Duroplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    yes
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK02
  • Device height
    71 mm
  • Min. depth of built-in installation box
    31 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    1013
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    41.6 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,990 4,073 150,339
Width (m) 0,160 0,300 0,800
Length (m) 0,069 0,225 1,050
Depth (m) 0,385 0,400 1,200
