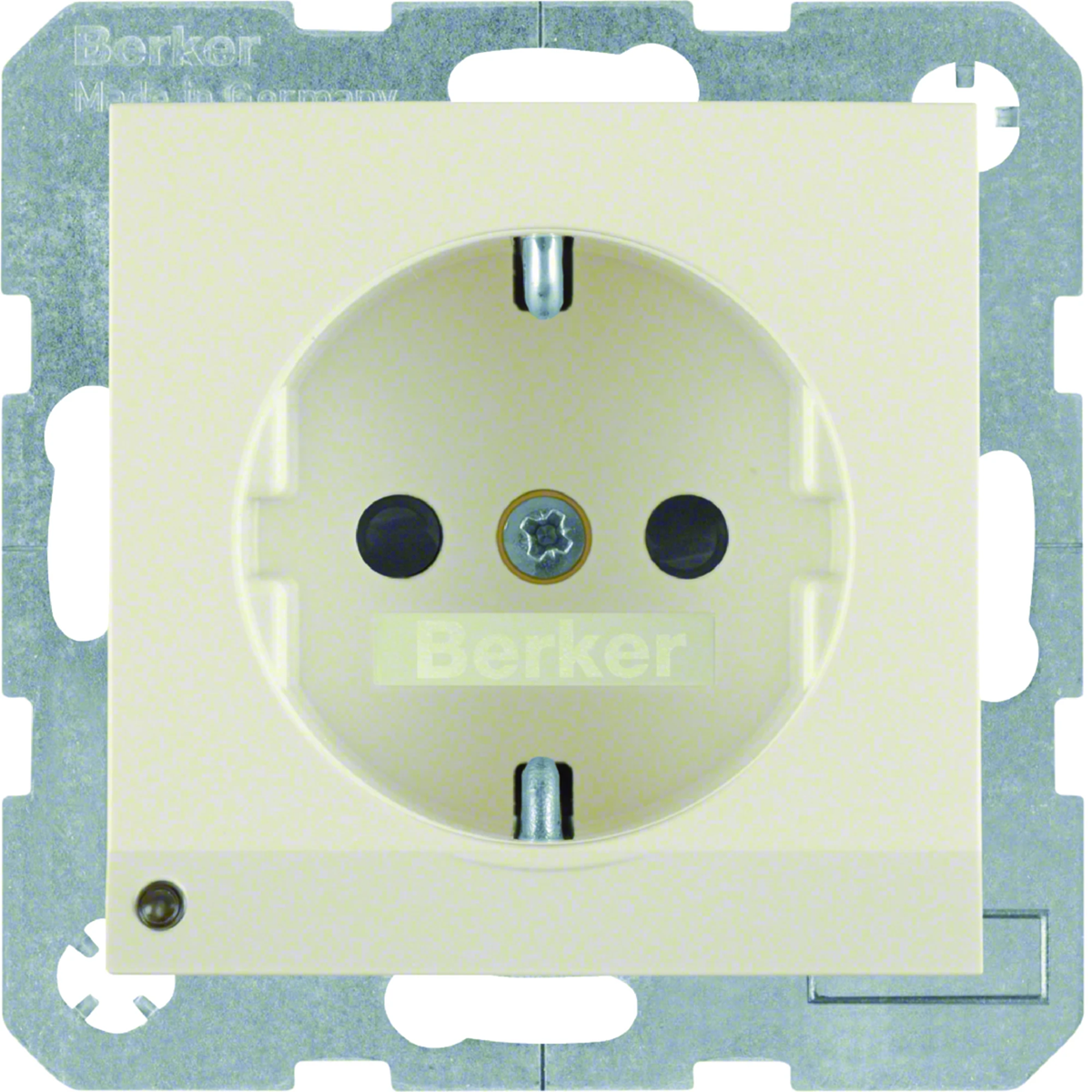

B. SQUARE SCHUKO socket with cream LED orientation illumination 41098982

local index:
MEE009BERK
Catalog No:
41098982
EAN code:
4011334364108
Manufacturer: BERKER
Number of sockets: 1
Color: Beige
Shape: Square
Price:
77,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket with earthing SCHUKO, with LED backlight, Berker seriesB. Square.

Detection:

  • integrated light sensor that turns on the orientation light at dusk and turns it off when there is sufficient light

Control LED:

  • white LED light
  • long life of LEDs

Additional information :

  • 2-pole
  • with lift screw terminals

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    Shiny
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    B.SQUARE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Creamy
  • Mounting depth [mm]
    32
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    1013
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    Yes
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    41.6 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 40 pcs. 1280 pcs.
Weight (kg) 0,093 1,050 4,513 164,419
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,385 0,400 1,200
