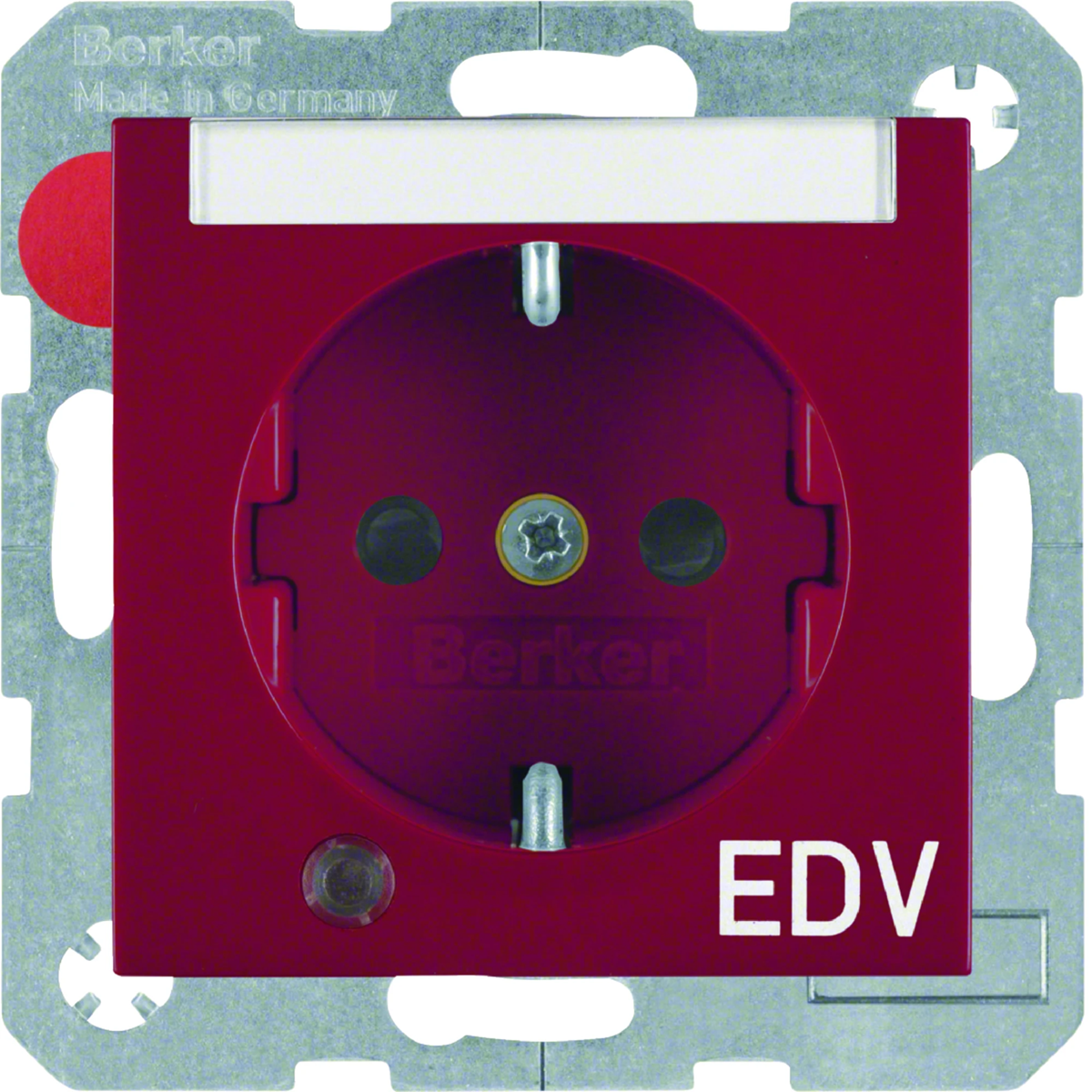

Name: B. SQUARE SCHUKO socket with a control diode and a description field, red \"EDV\" print
Brand: BERKER
SKU: MEE018BERK
Price: 88.61 PLN

Number of sockets

1
Shape

Square
Fixing

Expanding claws
Overprint

EDV
Descriptive field

Yes
Type

Electric
Level of security

IP20
Ground

schuko
Backlight

Yes
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Color

Red
Material

Plastic
Installation

Flush-mounted
Rated voltage [V]

230
Rated current [A]

16
Family

B.SQUARE
Type

Flush-mounted
Surface finish

Shiny
Mounting depth [mm]

32
Standard

European
On the DATA key

NO
Exact material

Duroplastic

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Imprint/indication

EDP (Electronic data processing)
With hinged lid

No
Label space/information surface

Yes
RAL-number (similar)

3003
Lockable

No
With function lighting

Yes
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Device width

71 mm
Device depth

41.6 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
Connection type

Screwed terminal
With enhanced contact protection

Yes
Colour

Red
Transparent

No
Eject-mechanism

No
With orientation lighting

No
Fault current protection

No
Special power supply

EDP (Electronic data processing)
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Glossy
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device height

71 mm
Min. depth of built-in installation box

31 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,011	1,030	4,560	168,920
Width (m)	0,071	0,160	0,300	0,800
Length (m)	0,042	0,070	0,225	1,050
Depth (m)	0,071	0,385	0,400	1,200

B. SQUARE SCHUKO socket with a control diode and a description field, red "EDV" print 41108915
