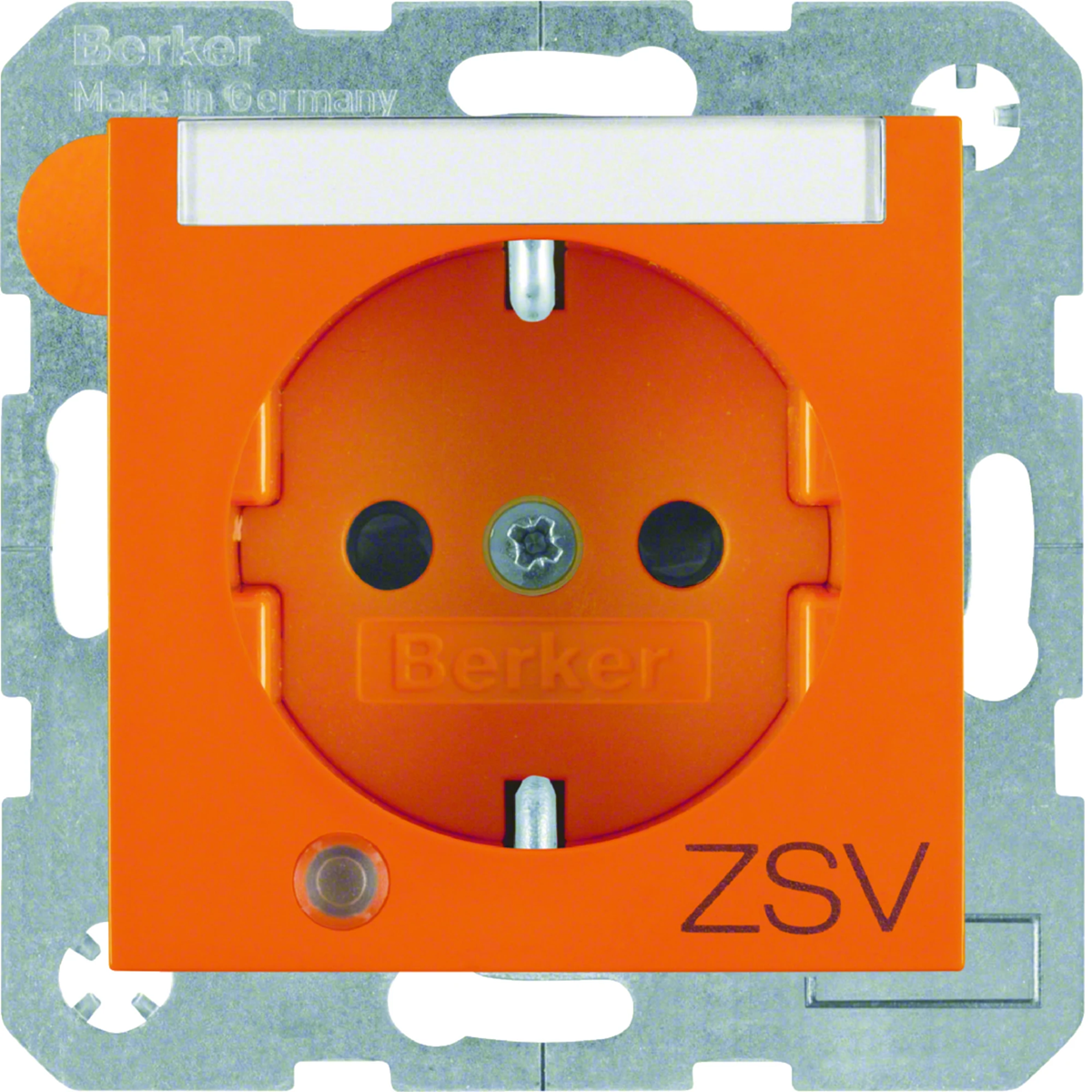

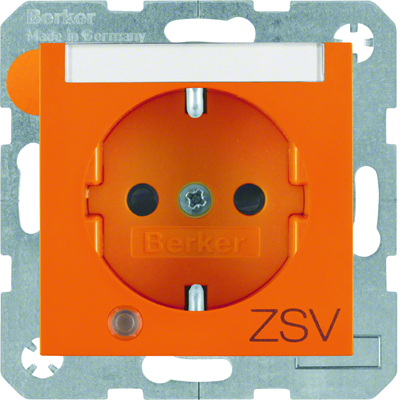

Name: B. SQUARE SCHUKO socket with a control diode and a description field, printing \"ZSV\" orange
Brand: BERKER
SKU: MEE017BERK
Price: 90.27 PLN

Number of sockets

1
Shape

Square
Fixing

Expanding claws
Overprint

ZSV
Descriptive field

Yes
Type

Electric
Level of security

IP20
Ground

schuko
Surface finish

Shiny
Mounting depth [mm]

32
Standard

European
On the DATA key

NO
Exact material

Duroplastic

Color

Orange
Material

Plastic
Installation

Flush-mounted
Rated voltage [V]

230
Rated current [A]

16
Family

B.SQUARE
Type

Flush-mounted
Degree of mechanical protection

IK02
Backlight

Yes
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Imprint/indication

ZSV
With hinged lid

No
Label space/information surface

Yes
RAL-number (similar)

2003
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Glossy
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

41.6 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
Connection type

Screwed terminal
With enhanced contact protection

Yes
Colour

Orange
Transparent

No
Eject-mechanism

No
With function lighting

Yes
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Impact strength

IK02
Device height

71 mm
Min. depth of built-in installation box

31 mm

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	1,015	4,513	164,419
Width (m)	0,160	0,300	0,800
Length (m)	0,069	0,225	1,050
Depth (m)	0,385	0,400	1,200

B. SQUARE SCHUKO socket with a control diode and a description field, printing "ZSV" orange 41108914
