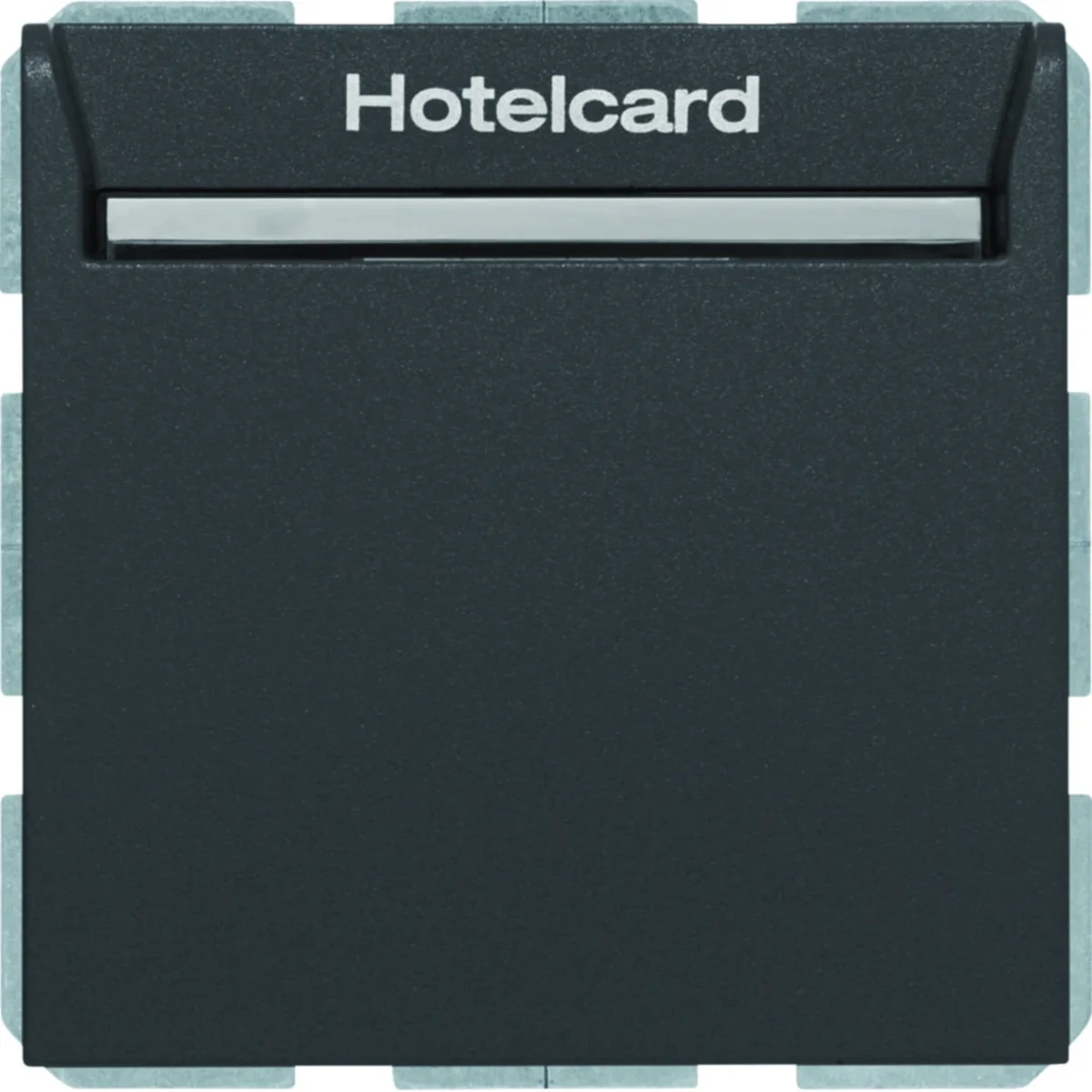

B. SQUARE Relay switch for hotel card anthracite matte 16409906

Relay switch for the hotel card from the B.Kwadrat/B.3/B.7 series, from the manufacturer Berker. Product part number is 16409906.

FEATURES

• 1-pole.
< li>Inductive load at cos φ = 0.6: max. 6 A.
• Power:
  • Conventional transformers: 1500 VA.
  • Electronic transformers: 1500 W.
  • Input power : < 0.2W.
• Card width: max. 55 mm.
• Card thickness: 0.8…1.2 mm.
• Fluorescent bulb control:
  • Compact fluorescent lamps: 500 W.
  • Power of fluorescent lamps in a dual system: 1500 W.
• Incandescent lamp control:
  • Incandescent lamps and 230V halogen lamps: 1500W.
• Blue LED backlight when hotel card is not inserted.
• Screw terminals (max.) : 2 x 2.5 mm².
• Delay time adjustable in steps: 0, 15, 30, 60 s.
• With potentiometer for stepwise adjustment of delay time
• For connection with backlight.
• With dry contact.
• With “Hotelcard”.
