B. SQUARE Central plate for Krone modular socket, anthracite matt 14641606

local index:
MAP194BERK
Catalog No:
14641606
EAN code:
4011334301288
Manufacturer: BERKER
Number of holes: 2
Color: Graphite
Shape: Square
Price:
23,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

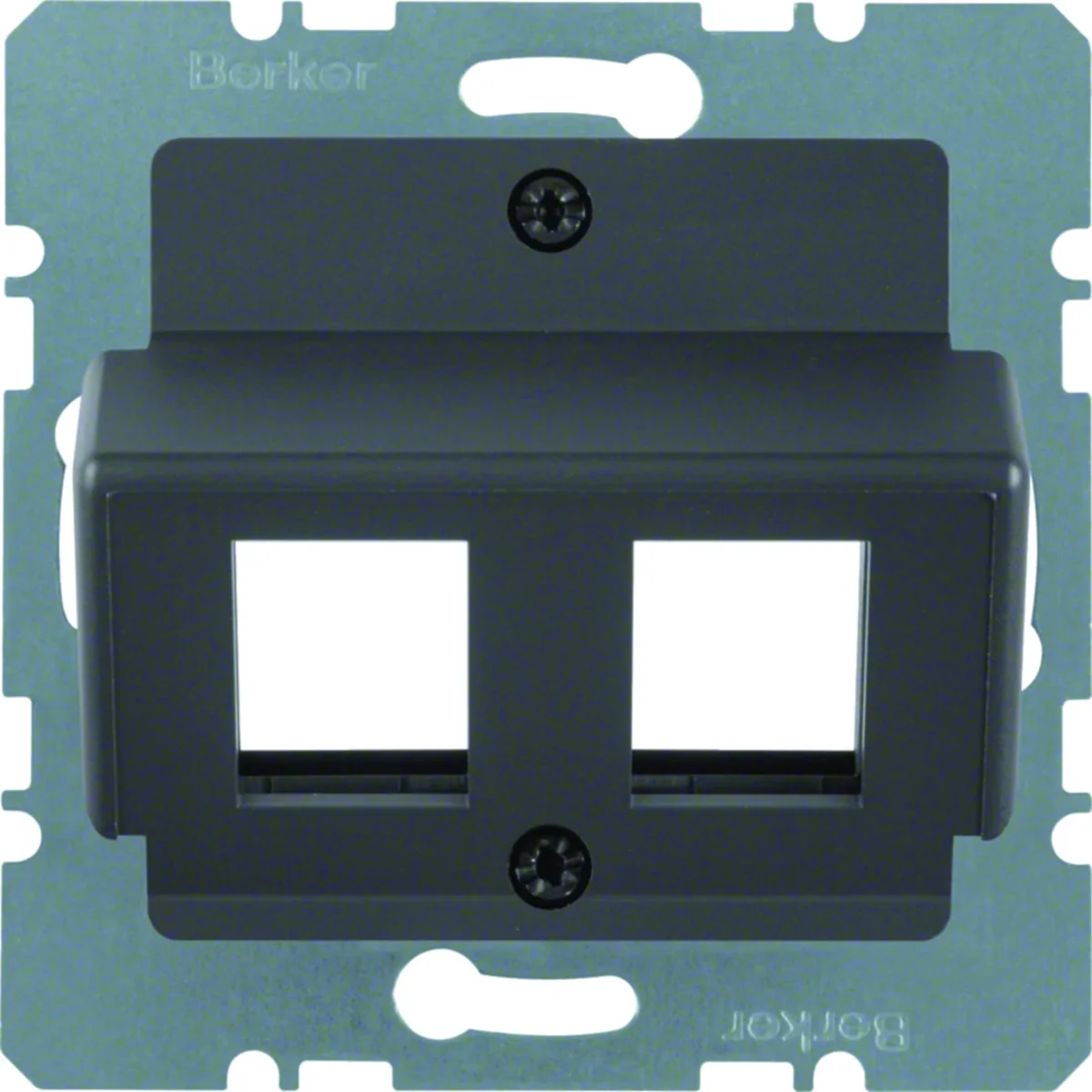

Central plate for Krone modular socket, series Berker B.Kwadrat.

  • with 30° exit angle
  • for Krone MT-RJ Jack´s fiber optic connectors
  • for 3M Volition fiber optic plug connectors
  • for Krone cat.5, cat.5e and cat.6 modular jacks

Technical data

  • Number of holes
    2
  • Shape
    Square
  • Type
    To the internet socket
  • Width [mm]
    14.7
  • Surface finish
    matte
  • For modular equipment
    Not applicable
  • Color
    Graphite
  • Material
    Plastic
  • Family
    B.SQUARE
  • Height [mm]
    19.4
  • Accurate color
    Anthracite
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Central cover plate for intermediate ring
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Imprintable label snap-in in intermediate ring
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • With buses/couplings
    No
  • With strain relief
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm
  • Utilization
    Modular Jack
  • With dust cover
    No
  • Outlet direction
    Inclined
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • Number of modules (module system)
    2
  • Suitable for number of connectors
    2
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    30 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,032 0,410 2,495 99,849
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,023 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
