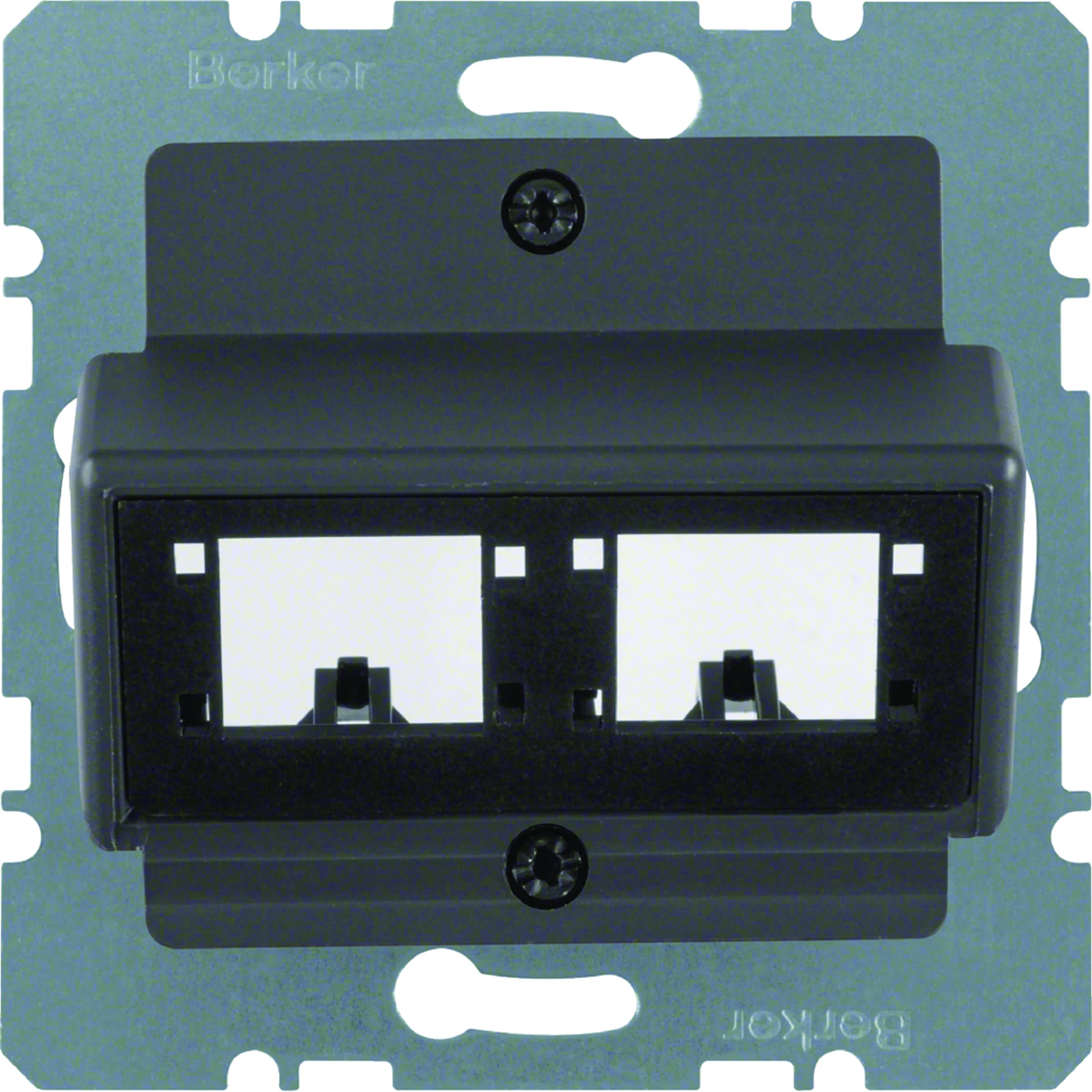

B. SQUARE Central plate for 1 or 2 single modules Reichle&De-Massari anthracite 14721606
local index:
MAP199BERK
Catalog No:
14721606
EAN code:
4011334301295
Price:
19,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Front plate for 1 or 2 Reichle&De-Massari single modules, series Berker B. Square:
- with exit angle 30°
- for fiber optic modules
- for RJ45 connection module cat.5e and cat.6
Technical data
-
Number of holes2
-
ShapeSquare
-
TypeTo the internet socket
-
Surface finishmatte
-
For modular equipmentNot applicable
-
ColorGraphite
-
MaterialPlastic
-
FamilyB.SQUARE
-
Accurate colorAnthracite
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementCentral cover plate for intermediate ring
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelImprintable label snap-in in intermediate ring
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
With buses/couplingsNo
-
With strain reliefNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box0 mm
-
UtilizationModular Jack
-
With dust coverNo
-
Outlet directionInclined
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourAnthracite
-
TransparentNo
-
Number of modules (module system)2
-
Suitable for number of connectors2
-
Luster terminalNo
-
Device width71 mm
-
Device depth30 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,029 | 0,380 | 2,345 | 95,049 |
| Width (m) | 0,051 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,008 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,051 | 0,225 | 0,400 | 1,200 |
