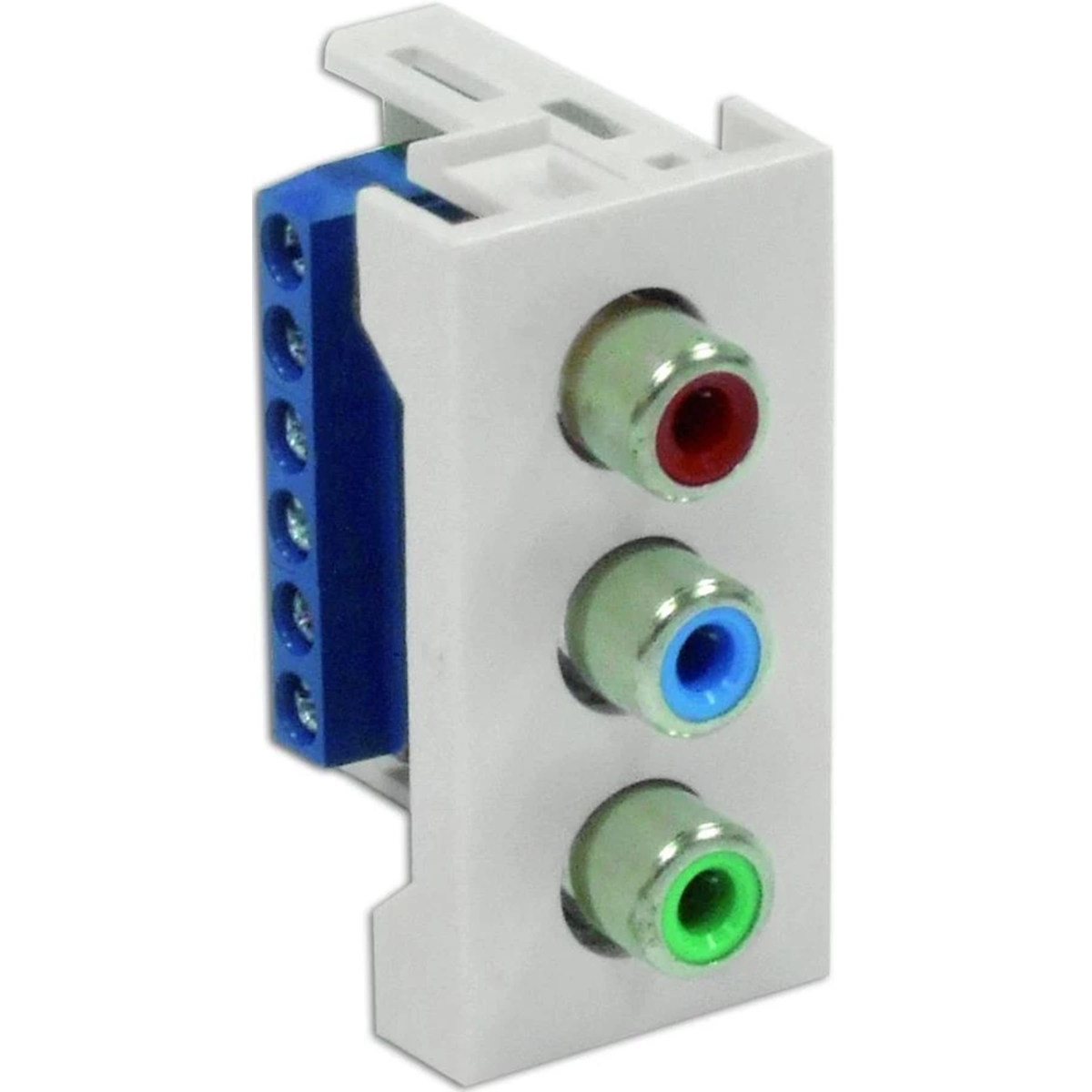

AUDIO VIDEO socket 22.5x45mm FU/FA-2420-3RCA-AV

Low-current audio-video socket in the 22.5x45 adapter (1 module), mounting in the 45x45 standard, 3xRCA (cinch) connectors, screw terminal connection. It is characterized by a compact design, thanks to which it can be used in cable ducts with a depth of 40mm. Intended for use in ICT and audio/video systems. Mounting by snapping into the UCHKP quick mounting bracket, OBUK surface-mounted housing, RAMK masking frame.









Low-current audio-video socket in the 22.5x45 adapter (1 module), mounting in the 45x45 standard, 3xRCA (cinch) connectors, screw terminal connection. It is characterized by a compact design, thanks to which it can be used in cable ducts with a depth of 40mm. Intended for use in ICT and audio/video systems. Mounting by snapping into the UCHKP quick mounting bracket, OBUK surface-mounted housing, RAMK masking frame.







Mechanical:

color: white

dimensions (width x height x depth): 22.5x45x40mm

weight: 18g



Socket:

Connector type: 3xRCA/6x screw terminal

Operating temperature: -10C to +68C

Humidity: 10 to 90%
