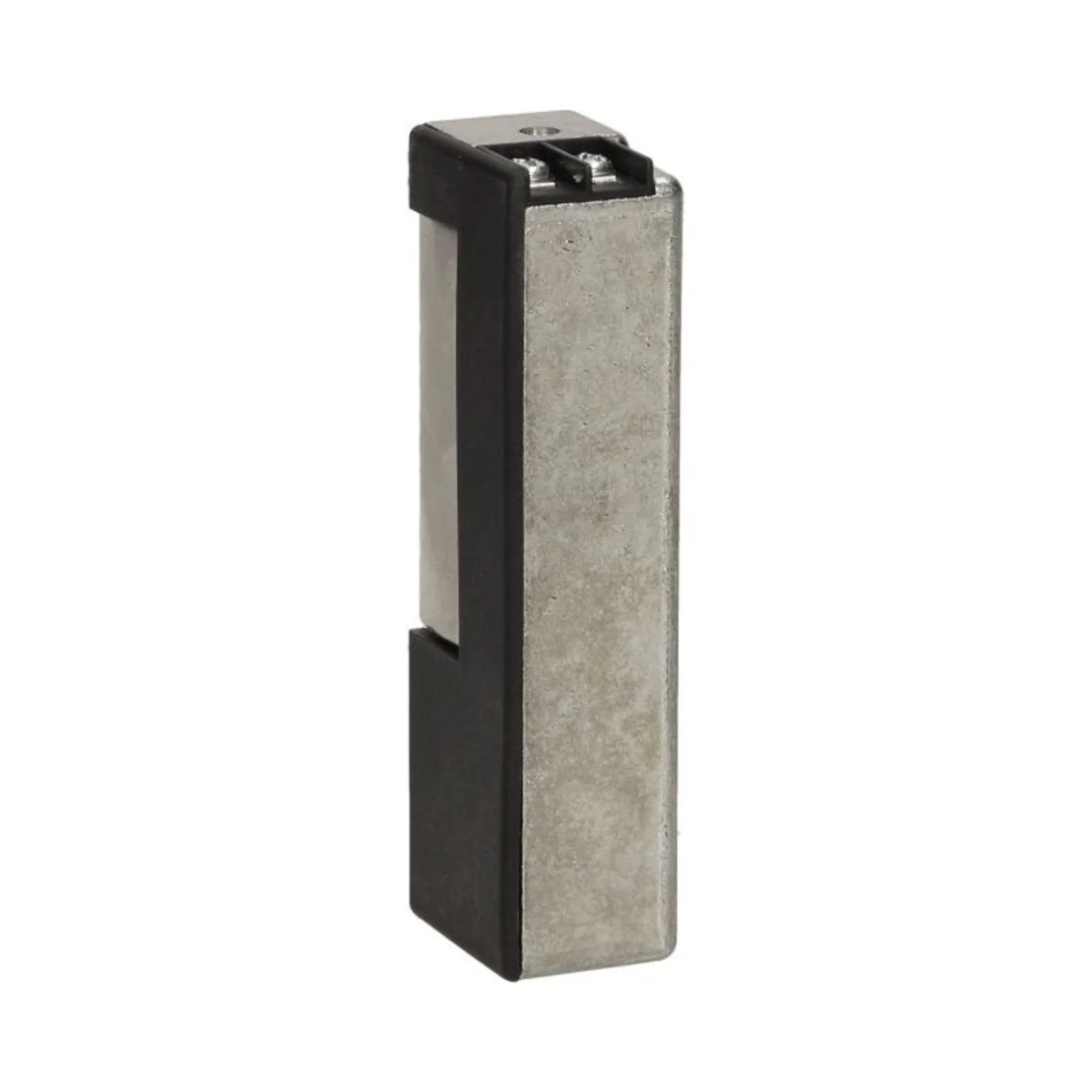

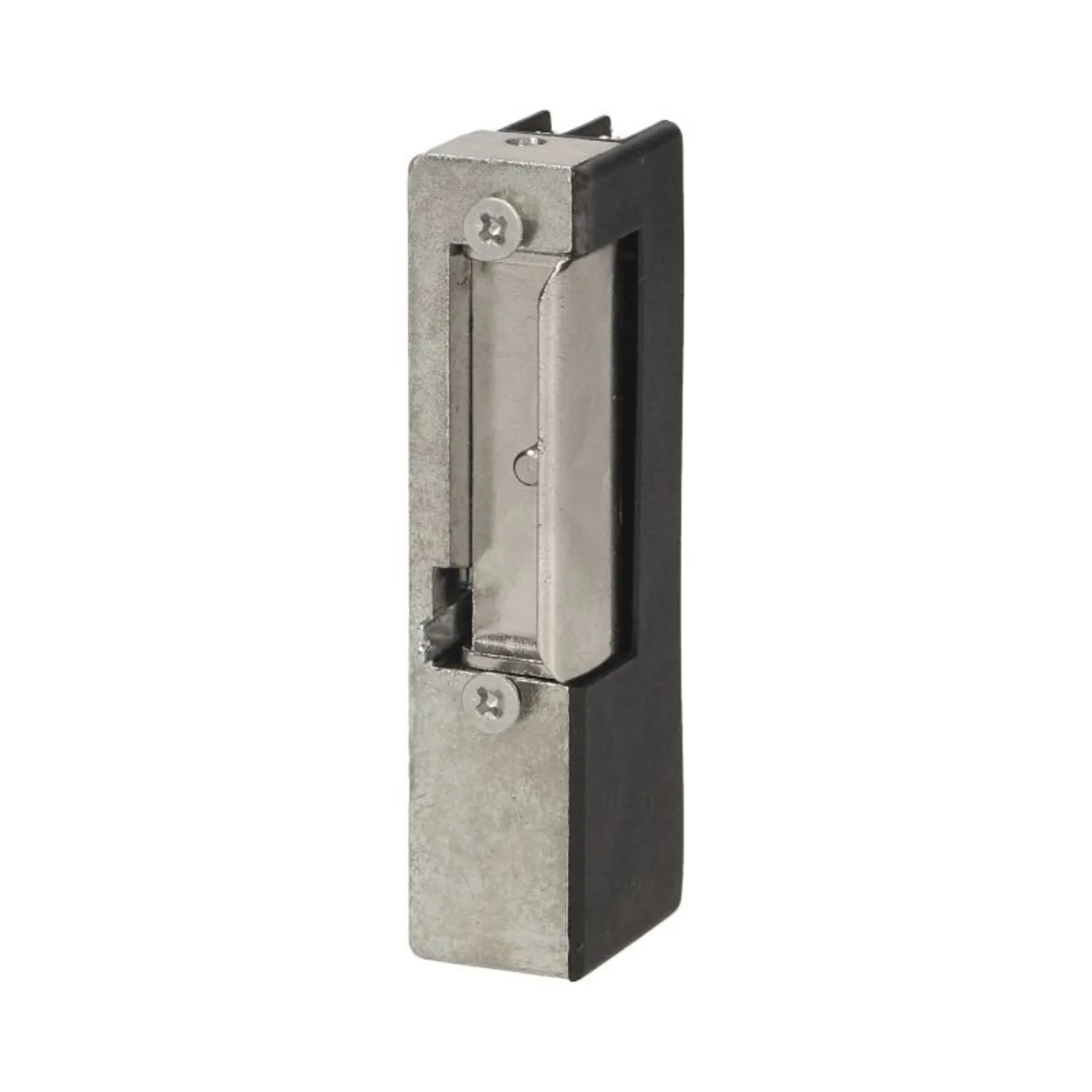

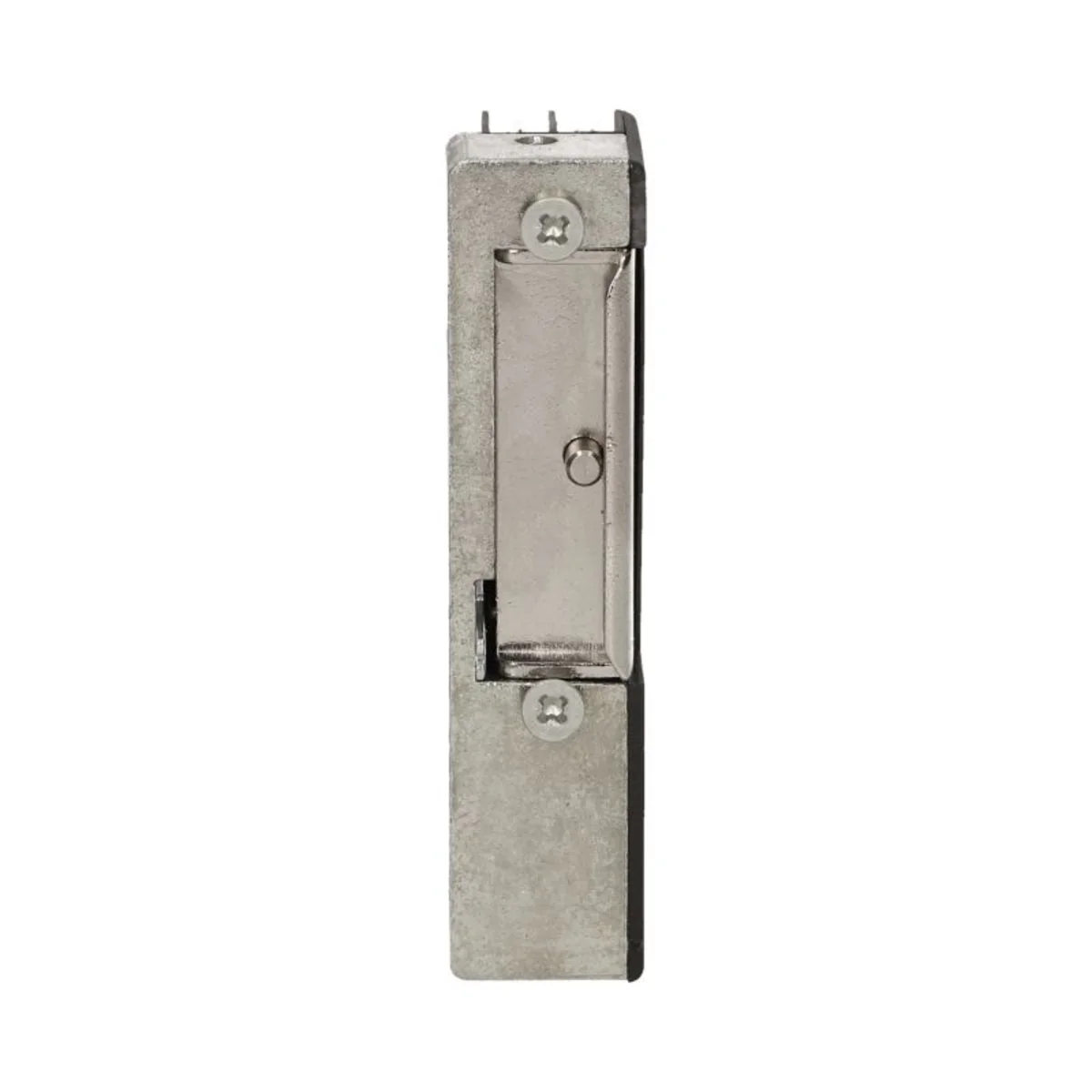

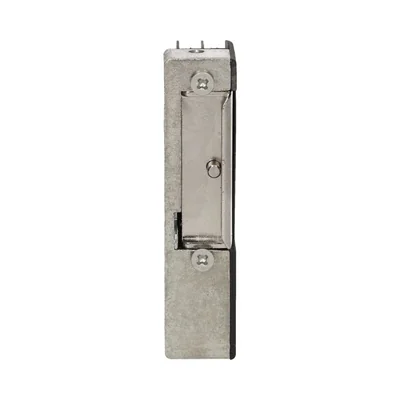

Asymmetric electric strike with memory and lock, right OR-EZ-4012

local index:
AEA035ORNO
Catalog No:
OR-EZ-4012
EAN code:
5901752483682
Manufacturer: ORNO POLSKA
Depth [mm]: 32
Color: Gray
Voltage [V]: 8-14
Price:
14,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ORNO electric strike is designed for remote opening of right and double-leaf doors and gates. It has 2 functions:
- latch locks - moving the lock lever allows you to open the door permanently without the use of an electric impulse
- memory function - allows you to control the electric strike by giving a short voltage pulse, after which the door open state is maintained by mechanical sensor until the door is opened; after they are closed - the striker locks automatically.
The electric striker is made of durable and corrosion-resistant Zamak alloy. It cooperates with the intercom and video intercom installation in the entrance door of single and multi-family buildings. It can be mounted externally with standard signs.

Product features:

  • acceptable pressure on the door when releasing the latch in AC AC: 160N (16kg)
  • permissible pressure on the door when releasing the latch: 10N (1kg)
  • permissible door load acting on the catch: 4000N (400 kg)
  • high durability: min. 300,000 openings
  • powered by AC or DC
  • rated voltage U: 8-14V
  • current: 0.7A at 12VAC
  • dimensions: 22 x 90 x 32 mm (W x H x D)

Technical data

  • Depth [mm]
    32
  • Voltage [V]
    8-14
  • Width [mm]
    22
  • Current [A]
    0.7
  • Accurate color
    Gray
  • Color
    Gray
  • Rated voltage [V]
    14
  • Height [mm]
    90
  • Permissible load [N]
    4000
  • PKWIU
    25.72.12.0
