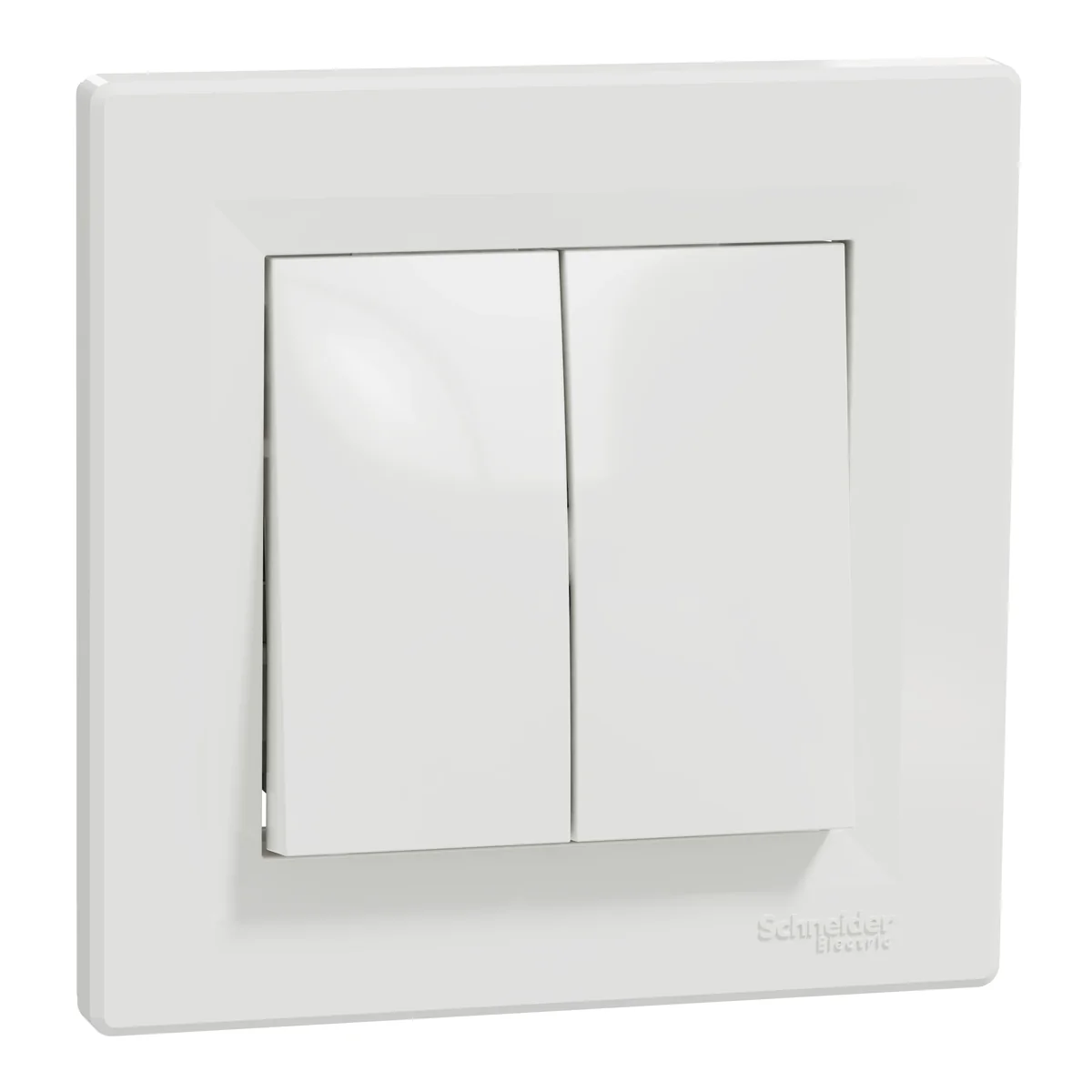

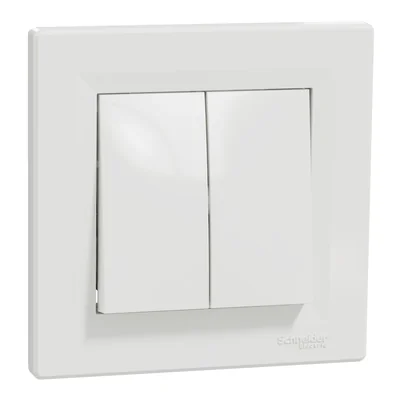

ASFORA White double stair connector EPH0600121
local index:
MMS026SCHN
Catalog No:
EPH0600121
EAN code:
3606480525278
Price:
9,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Asfora series, from Schneider Electric. The product part number is EPH0600121.
FEATURES
- Dual.
- Complete product; with frame.
- Screwless terminals.
- Color white.
- Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.
- Ingress protection IP20.
- Dimensions: 83 x 83 mm (H x W).
- Made of ABS.
- Length of insulation stripped from the cable: 13mm.
FEATURES OF ASFORA CONNECTOR
- Simple, quick assembly and disassembly of wires in the terminals.
- Conical entries leading the wires to the terminals.
- Long solid claws. Metal guides keep the claws in the right position.
- Galvanized, solid mounting frame with cuts for easy positioning.
- Clear diagram and terminal marking for easy connection.
SERIES DESCRIPTION
The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.
The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!
Technical data
-
Depth [mm]43
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyASPHORA
-
Width [mm]83
-
Height [mm]83
-
BacklightNO
-
For the frame systemNO
-
Exact materialABS
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface finishShiny
-
Terminal typeThreadless
-
Protrusion depth [mm]15
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003.0
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeOther
-
Device width83 mm
-
Device depth43.0 mm
-
Min. depth of built-in installation box40.0 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height83 mm
-
Built-in depth28.0 mm
