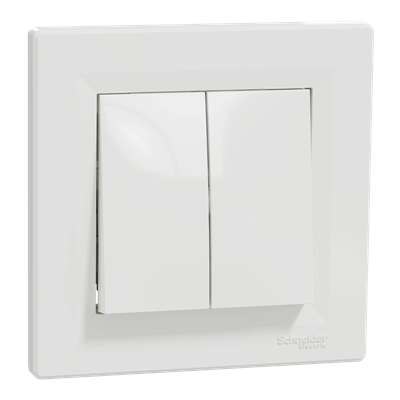

ASFORA White candlestick connector EPH0300121

local index:
MMT007SCHN
Catalog No:
EPH0300121
EAN code:
3606480525001
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 2
Color: White
Price:
3,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick switch from the Asfora series, from Schneider Electric. The product part number is EPH0300121.



FEATURES

  • Complete product; with frame.
  • Screwless terminals.
  • Color white.
  • Rated current 10AX.
  • Rated voltage 230V.
  • Flushmount.
  • Rating IP20.
  • Dimensions: 83 x 83mm (H x W).
  • Made of ABS.
  • Length of cable stripping: 13mm.



FEATURES OF ASFORA CONNECTOR

  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!

Technical data

  • Depth [mm]
    43
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Backlight
    NO
  • For the frame system
    NO
  • Exact material
    ABS
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Series switch
  • Assembly arrangement
    Basic element with complete housing
  • Number of rockers
    2.0
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003.0
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    83 mm
  • Device depth
    43.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    83 mm
  • Built-in depth
    28.0 mm
