381609
0

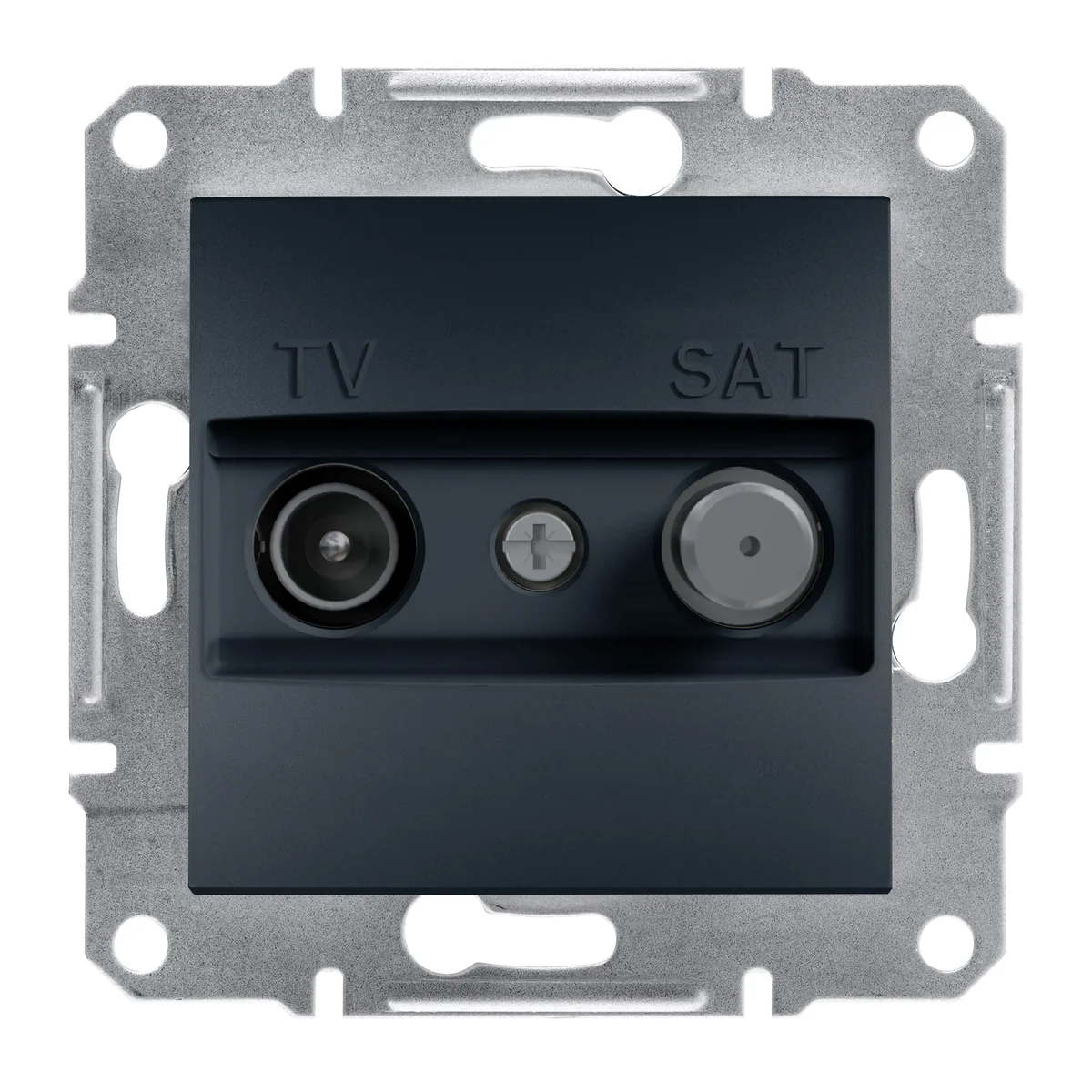

ASFORA TV-SAT final socket 1dB without frame, anthracite EPH3400171
local index:
MEA040SCHN
Catalog No:
EPH3400171
EAN code:
3606480729676
Price:
23,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
TV-SAT antenna socket. For parallel distribution systems.
SERIES DESCRIPTION
< p>The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminum, brown , anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.
Technical data
-
Depth [mm]42
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]1
-
VersionFinal
-
Surface finishPainted
-
BacklightNO
-
VariantTV sat
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws
-
OverprintYes
-
FamilyASPHORA
-
Width [mm]71
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate coloranthracite
-
Terminal typeThreadless
-
F-type inputNO
-
Exact materialABS
Other technical data
-
Assembly arrangementOther
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourAnthracite
-
Type of fasteningMounting with claw
-
With buses/couplingsYes
-
With strain reliefNo
-
Shielded housingNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box46 mm
-
UtilizationSAT
-
With dust coverNo
-
Outlet directionStraight
-
With imprintNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
TransparentNo
-
Number of modules (module system)0
-
Suitable for number of connectors2
-
Shielded busesNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth42 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
