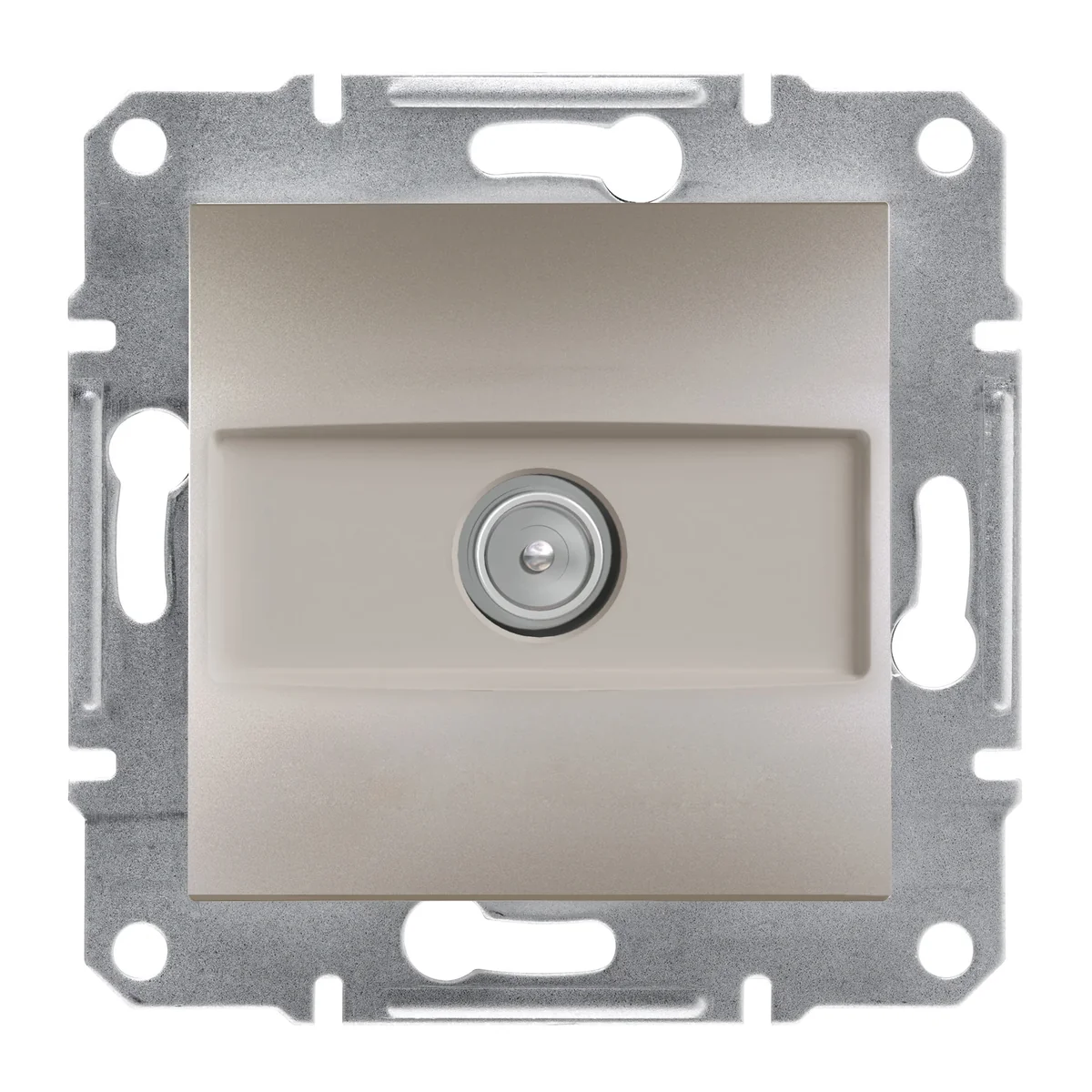

ASFORA TV end socket 1dB without frame metallic bronze EPH3200169

local index:
MEA005SCHN
Catalog No:
EPH3200169
EAN code:
3606480727825
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 38
Number of sockets: 1
Color: Brown
Price:
15,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TV antenna socket. For parallel distribution systems.



SERIES DESCRIPTION

The Asfora series is high quality at an affordable price. The geometric shapes of the Asfora series products and the rich colors will match any interior and bring a unique atmosphere to it.

Asfora is characterized by classic shapes and 6 stylish colors, such as: white, cream, aluminum, brown , anthracite and steel. Ease of assembly and a wide range of applications will meet the expectations of every user. Asfora switches and sockets are widely used in residential buildings, but also in public buildings, offices and hotels. Asfora is synonymous with high quality and product safety guarantees.

Technical data

  • Depth [mm]
    38
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    1
  • Version
    Final
  • Surface finish
    Painted
  • Backlight
    NO
  • Variant
    TV
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws
  • Overprint
    NO
  • Family
    ASPHORA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Metallic bronze
  • Terminal type
    Threadless
  • F-type input
    NO
  • Exact material
    ABS

Other technical data

  • Assembly arrangement
    Other
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Bronze
  • Type of fastening
    Mounting with claw
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    46 mm
  • Utilization
    Other
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Transparent
    No
  • Number of modules (module system)
    0
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    42 mm
