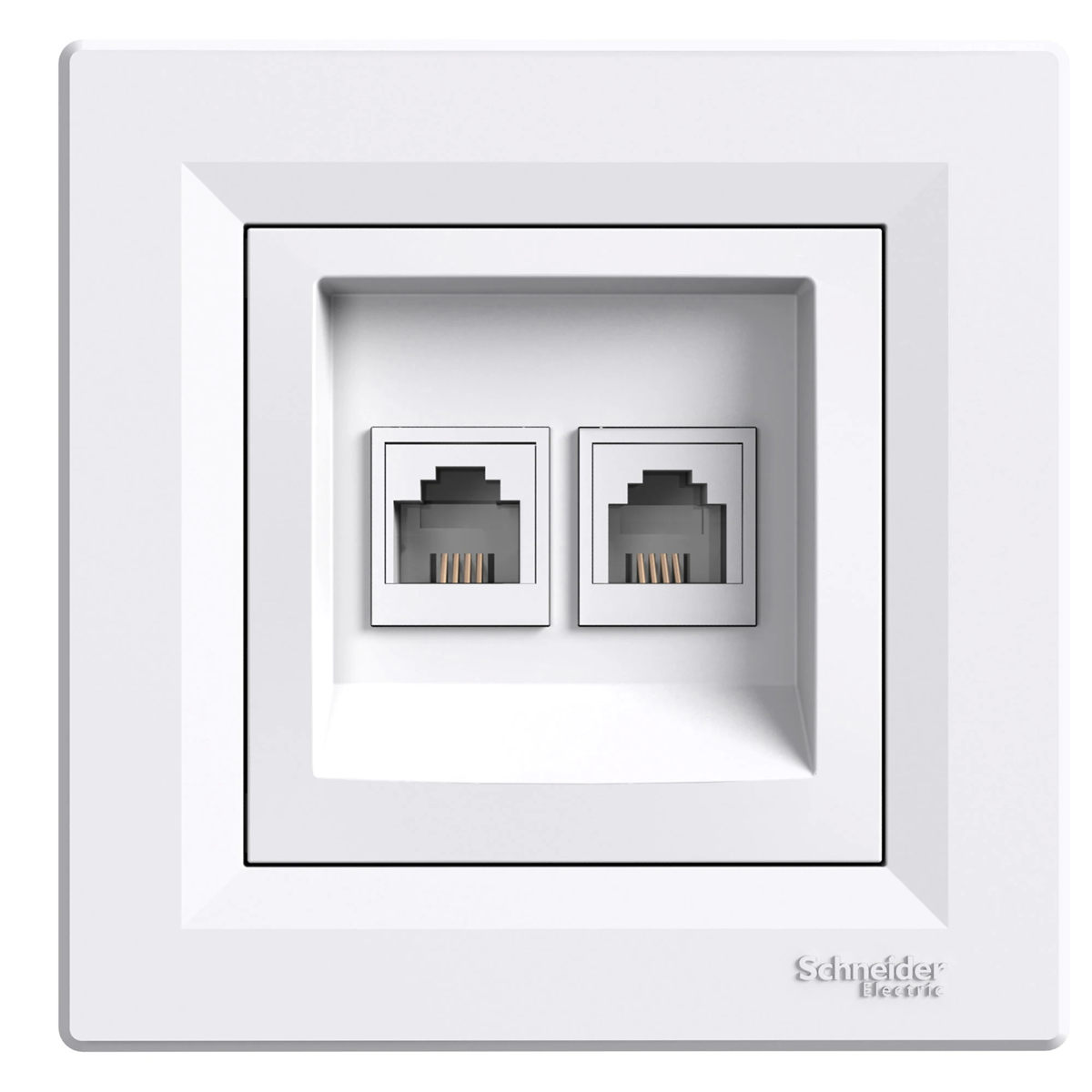

ASFORA Telephone socket 2x RJ11 white EPH4200121

local index:
MET007SCHN
Catalog No:
EPH4200121
EAN code:
3606480526893
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 38
Number of sockets: 2
Color: White
Price:
10,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Telephone socket from the Asfora series, from Schneider Electric. The product part number is EPH4200121.



FEATURES

  • Double.
  • RJ11 (4 pins).
  • Complete product; with frame.
  • Screw terminals.
  • Color white.
  • Rating IP20.
  • Flushmount.
  • Dimensions: 83 x 83 mm (H x W).< /li>



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.  The Asfora series of electrical installation equipment is used in residential buildings, public buildings, offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you! The telephone socket has all the features of this unique series.

Technical data

  • Depth [mm]
    38
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Exact material
    ABS
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Variant
    RJ11
  • Protrusion depth [mm]
    9
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    0
  • Suitable for number of connectors
    2
  • Shielded buses
    No
  • Luster terminal
    Yes
  • Device width
    83 mm
  • Device depth
    38 mm
  • Utilization
    Other
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Type of fastening
    Mounting with claw
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Shielded housing
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    83 mm
  • Min. depth of built-in installation box
    46 mm
