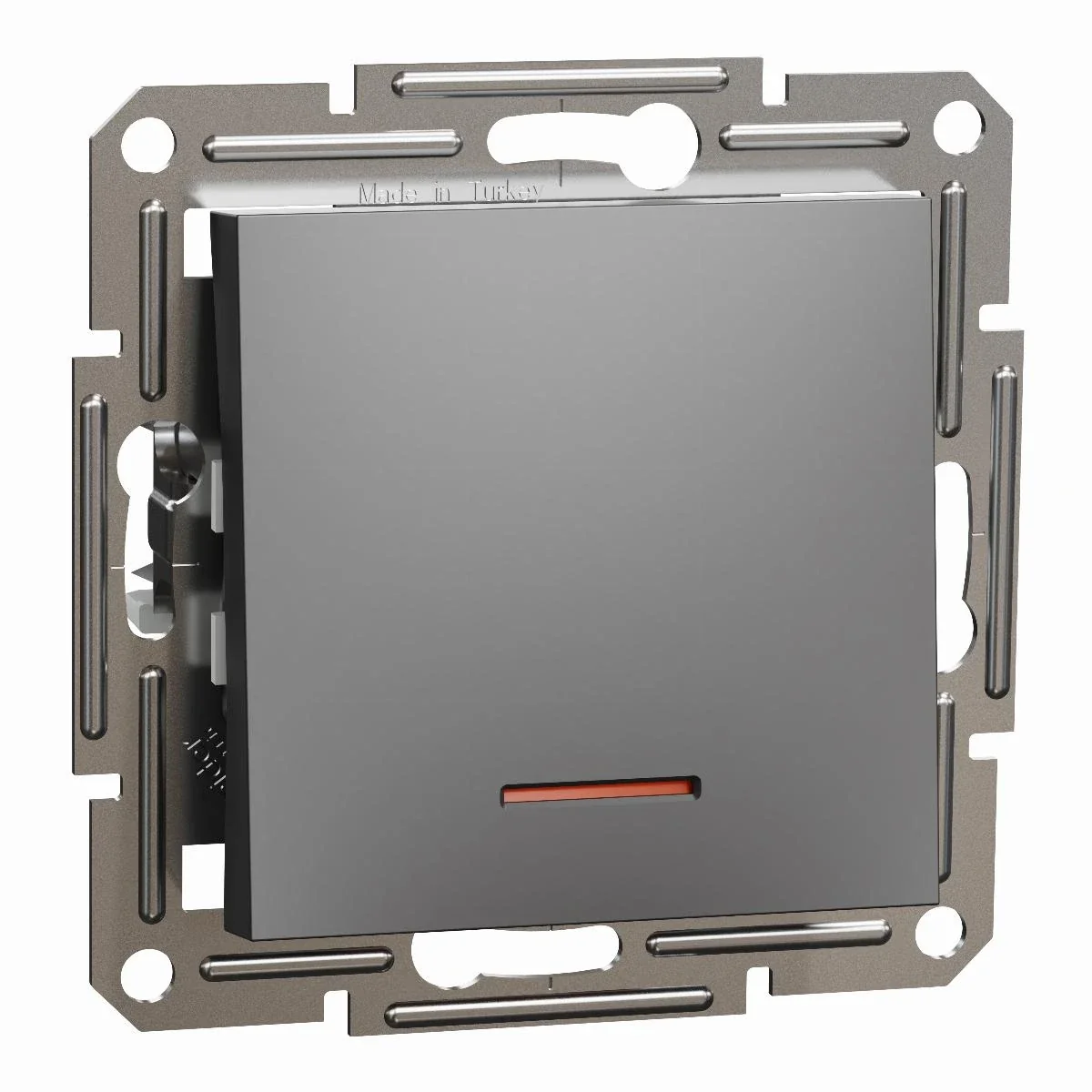

ASFORA Stair switch without frame with anthracite backlight EPH1500171

local index:
MMS042SCHN
Catalog No:
EPH1500171
EAN code:
3606480730030
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 1
Color: Graphite
Price:
8,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Asfora series, from Schneider Electric. The product part number is EPH1500171.



FEATURES

  • Single.
  • With LED backlight in red.
  • Module without frame.
  • Screwless terminals.< /li>
  • Color anthracite.
  • Rated current 10AX.
  • Rated voltage 230V.
  • flush mounting.
  • Ingress protection IP20.
  • Dimensions: 71 x 71 mm (height x width).
  • Made of ABS.
  • Strip length: 13mm.



FEATURES OF THE ASFORA SWITCH

  • Thanks to the LED backlight, finding the light switch in the dark will not be a problem for you.
  • Simple, quick assembly and disassembly of the wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.



SERIES DESCRIPTION

The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!

Technical data

  • Depth [mm]
    43
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ASPHORA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    anthracite
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    15
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Painted
  • Backlight
    Yes
  • For the frame system
    Yes
  • Exact material
    ABS
  • Backlight color
    Red

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Feedback-signal contact
    No
  • With lighting
    Yes
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Transparent
    No
  • Imprint
    None
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10.0 A
  • Device height
    71.0 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Model
    Other
  • Number of poles
    1
  • Number of rockers
    1.0
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Anthracite
  • Label space/information surface
    No
  • With signal lamp
    Yes
  • Nominal voltage
    250.0 V
  • Device width
    71 mm
  • Device depth
    43.0 mm
