ASFORA Stair switch without frame anthracite screw clamps EPH0400371
local index:
MMS017SCHN
Catalog No:
EPH0400371
EAN code:
3606480729294
Price:
4,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

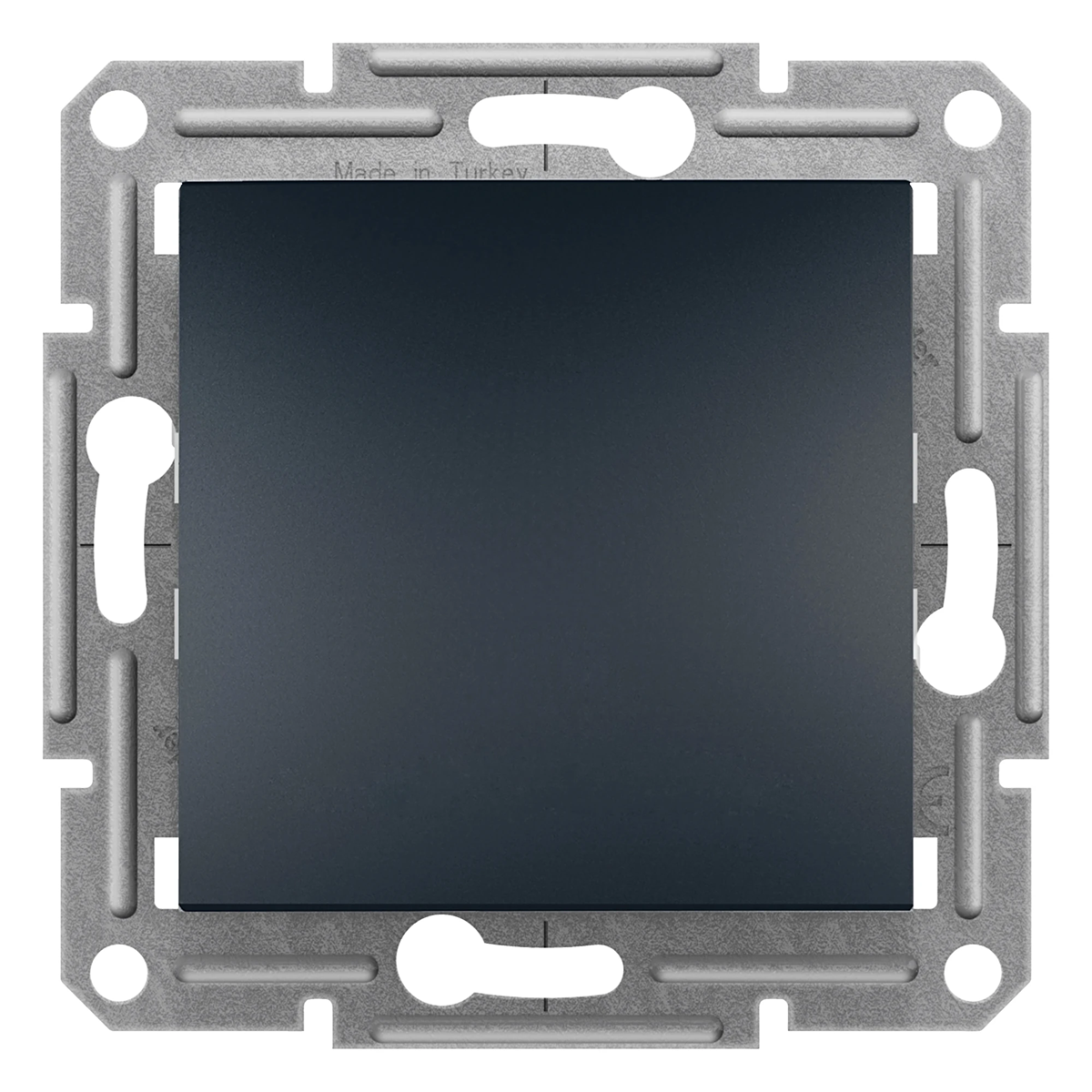

Stair switch from the Asfora series, from Schneider Electric. The product part number is EPH0400371.
FEATURES
- Single.
- Module without frame.
- Screw terminals.
- Color anthracite. < li>Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.< /li>
- Rating IP20.
- Dimensions: 71 x 71mm (H x W).
- Made of ABS .
- Length of insulation stripped from the cable: 13mm.
FEATURES OF ASFORA SWITCH
< ul>
SERIES DESCRIPTION
The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.
The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!
Technical data
-
Depth [mm]43
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyASPHORA
-
Width [mm]71
-
Height [mm]71
-
Accurate coloranthracite
-
Terminal typeThreaded
-
Protrusion depth [mm]15
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface finishPainted
-
BacklightNO
-
For the frame systemYes
-
Exact materialABS
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Method of operationRocker
-
Feedback-signal contactNo
-
With lightingNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
TransparentNo
-
ImprintNone
-
Suitable for degree of protection (IP)IP20
-
Rated current10.0 A
-
Device height71.0 mm
-
Min. depth of built-in installation box40.0 mm
-
ModelOther
-
Number of poles1
-
Number of rockers1.0
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
ColourAnthracite
-
Label space/information surfaceNo
-
With signal lampNo
-
Nominal voltage250.0 V
-
Device width71 mm
-
Device depth43.0 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
